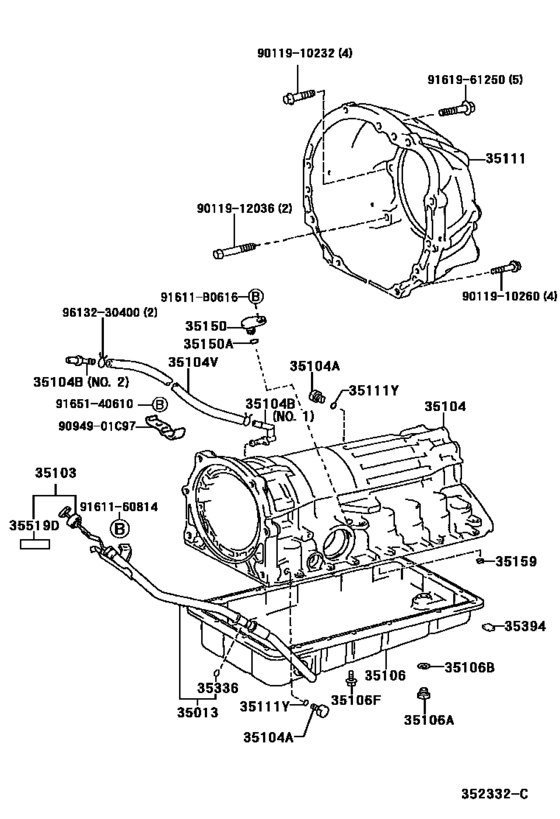

Transmission Case & Oil Pan (Atm) ([09.1999 - ] A340E (9909- )JZS171..4FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JZS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2000
- To
- 08.2001
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-30540 Tube Sub-Assy, Transmission Oil Filler[09.1999 - 08.2001] JZS171..TWC |
35013-30540 |
US $43.10 |
||
|
35103
|
35103
35103-30680 Gage Sub-Assy, Transmission Oil Level[09.1999 - 08.2001] JZS171..4FC..TWC |
35103-30680 |
US $15.58 |
||
|
35104
|
35104
35104-22070 Case Sub-Assy, Automatic Transmission[08.2000 - 08.2001] JZS171..4FC |
35104-22070 |
US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[09.1999 - 08.2001] JZS173,179 右側（リア） ＆左側; GS171,JZS171,175,177,UZS17# |
90341-08001 |
from US $1.48 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[09.1999 - 08.2001] GS171,JZS171,173,175,179,UZS171,175 ＮＯ．１ |
90930-03098 |
from US $7.01 |
||
|
35104B
|
35104B
90930-03099 Plug, Breather, No.1 (Atm)[09.1999 - 12.2000] JZS171,173,175,179 ＮＯ．２ |
90930-03099 |
US $7.86 |
||
|
35104B
|
35104B
90930-03168 Plug, Breather, No.1 (Atm)[12.2000 - 08.2001] GS171,JZS171,173,175,179,UZS171,175 ＮＯ．２ |
90930-03168 |
US $6.45 |
||
|
35104V
|
35104V
90445-10020 Hose (For Breather Plug)[09.1999 - 08.2001] JZS171,173,175,179,UZS171,175 |
90445-10020 |
US $4.54 |
||
|
35106
|
35106
35106-30220
Pan Sub-Assy, Automatic Transmission Oil
[09.1999 - 08.2001] JZS171,175,177..D4,TWC |
35106-30220 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-30210 Pan Sub-Assy, Automatic Transmission Oil[09.1999 - 08.2001] JZS171,175,177..D4,TWC |
35106-30210 |
from US $81.40 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-30150 Housing, Automatic Transmission[09.1999 - 08.2001] JZS17# |
35111-30150 |
US $428.06 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90301-06196 |
from US $2.45 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.1999 - 08.2001] GS171,JZS17# |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.1999 - 08.2001] JZS171,175,177,UZS171,175 |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-20030 Label, Automatic Transmission Information[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35519-20030 |
US $4.08 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9094901C97
|
9094901C97
90949-01C97 New Genuine Part |
90949-01C97 |
US $8.44 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.05 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
