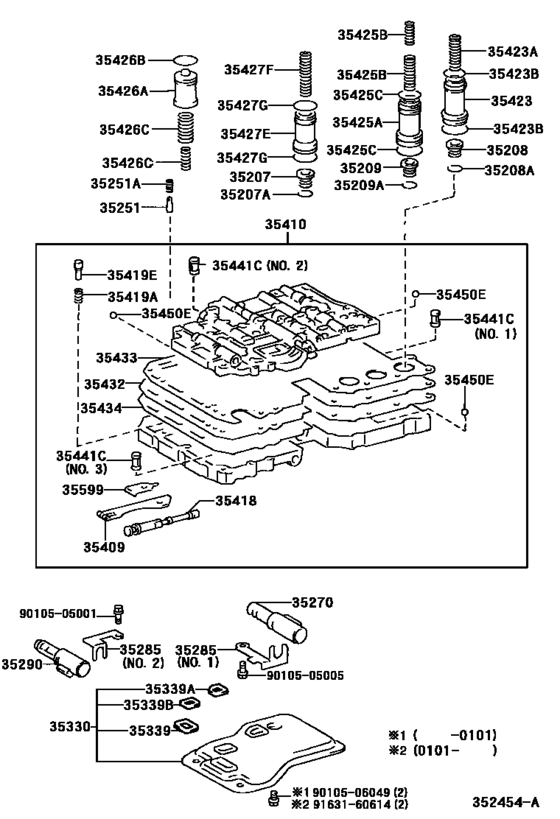

Valve Body & Oil Strainer (Atm) ([09.1999 - 08.2001] A340E (9909-0108)JZS171..TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JZS171
- grade
- ATHE
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.2000
- To
- 08.2001
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35207
|
35207
35207-22010 Spring Sub-Assy, B-0 Accumulator[09.1999 - 08.2001] JZS171,173,175,177..D4,TWC |
35207-22010 |
US $2.45 |
||
|
35207A
|
35207A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35208
|
35208
35208-30010 Spring Sub-Assy, B-2 Accumulator[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35208-30010 |
US $2.62 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-24010 Spring Sub-Assy, C-2 Accumulator[09.1999 - 08.2001] JZS171,UZS171,175..5FC 下側; JZS175,177;JZS171,173..4FC..TWC |
35209-24010 |
US $2.27 |
||
|
35209A
|
35209A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[09.1999 - 08.2001] JZS17#,UZS17# |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[09.1999 - 08.2001] JZS17#,UZS17# |
90501-03005 |
from US $0.79 |
||
|
35270
|
35270
35270-14010 Solenoid Assy, Shift Control[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35270-14010 |
US $126.28 |
||
|
35285
|
35285
35285-24010 Plate, Solenoid Lock[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．１ |
35285-24010 |
US $3.67 |
||
|
35285
|
35285
35285-24020 Plate, Solenoid Lock[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．２ |
35285-24020 |
US $3.67 |
||
|
35290
|
35290
35290-60020 Solenoid Assy, Line Pressure Control[09.1999 - 08.2001] JZS171,173,179..4FC |
35290-60020 |
US $171.20 |
||
|
35330
|
35330
35330-30060 Strainer Assy, Valve Body Oil[09.1999 - 08.2001] JZS171..4FC..TWC |
35330-30060 |
from US $52.19 |
||
|
35339
|
35339
35339-30080 Gasket, Oil Strainer[01.2001 - 08.2001] JZS171,175,177,UZS171,175..D4,HTWC,TWC |
35339-30080 |
from US $3.44 |
||
|
35339A
|
35339A
35339-30090 Gasket, Oil Strainer, No.1[01.2001 - 08.2001] JZS171,175,177,UZS17#..D4,HTWC,TWC |
35339-30090 |
US $3.20 |
||
|
35339B
|
35339B
35339-30100 Gasket, Oil Strainer, No.1[01.2001 - 08.2001] JZS171,175,177,UZS171,175..D4,HTWC,TWC |
35339-30100 |
from US $3.20 |
||
|
35409
|
35409
35409-22020 Spring Sub-Assy, Manual Detent[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35409-22020 |
US $8.01 |
||
|
35410
|
35410
35410-3A040 Body Assy, Transmission Valve[09.1999 - 08.2001] JZS171..4FC..TWC |
35410-3A040 |
US $1,557.92 |
||
|
35418
|
35418
35418-24010 Valve, Manual[09.1999 - 08.2001] GS171,JZS171,173..4FC..(HTWC,TWC) |
35418-24010 |
US $49.36 |
||
|
35419A
|
35419A
90501-09093 Spring, Compression (For Check Valve)[09.1999 - 08.2001] GS171,JZS17#,UZS17#..D4,HTWC,TWC |
90501-09093 |
US $1.31 |
||
|
35419E
|
35419E
35419-50010 Valve, Check, No.1[09.1999 - 08.2001] JZS17#,UZS17# |
35419-50010 |
US $7.13 |
||
|
35423
|
35423
35423-30030 Piston, B-2 Accumulator[09.1999 - 08.2001] JZS17#,UZS17# |
35423-30030 |
US $17.65 |
||
|
35423A
|
35423A
90501-24015 Spring, Compression (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-24015 |
US $2.33 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[09.1999 - 08.2001] GS171,JZS17#,UZS17# 上側 |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 下側 |
90301-31010 |
US $2.87 |
||
|
35425A
|
35425A
35425-30020 Piston, C-2 Accumulator[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35425-30020 |
US $13.28 |
||
|
35425B
|
35425B
90501-22016 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC 外側 |
90501-22016 |
US $2.62 |
||
|
35425B
|
35425B
90501-25027 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 内側 |
90501-25027 |
from US $1.40 |
||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[09.1999 - 08.2001] JZS171,173..4FC..TWC 上側 |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC 下側 |
90301-31010 |
US $2.87 |
||
|
35426A
|
35426A
35426-40010 Piston, C-0 Accumulator[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35426-40010 |
US $13.28 |
||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
90301-24010 |
US $2.06 |
||
|
35426C
|
35426C
90501-22008 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 内側 |
90501-22008 |
US $1.22 |
||
|
35426C
|
35426C
90501-23073 Spring, Compression (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 外側 |
90501-23073 |
US $2.80 |
||
|
35427E
|
35427E
35427-30040 Piston, B-0 Accumulator[09.1999 - 08.2001] JZS171,173,175,177,UZS17# |
35427-30040 |
US $15.55 |
||
|
35427F
|
35427F
90501-21006 Spring, Compression (For B-0 Accumulator Piston)[09.1999 - 08.2001] JZS171..4FC |
90501-21006 |
US $1.40 |
||
|
35427G
|
35427G
90301-20008 Ring, O (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 上側 |
90301-20008 |
from US $1.79 |
||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 下側 |
90301-26011 |
US $1.79 |
||
|
35432
|
35432
35432-30610 Plate, Valve Body, No.1[09.1999 - 08.2001] JZS171..4FC..TWC |
35432-30610 |
US $56.35 |
||
|
35433
|
35433
35433-60040 Gasket, Valve Body, No.1[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35433-60040 |
from US $12.01 |
||
|
35434
|
35434
35434-60040 Gasket, Valve Body, No.2[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35434-60040 |
US $16.31 |
||
|
35441C
|
35441C
35441-24010 Strainer, Solenoid Oil[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．２ |
35441-24010 |
US $5.42 |
||
|
35441C
|
35441C
35441-24020 Strainer, Solenoid Oil[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC ＮＯ．３ |
35441-24020 |
US $5.42 |
||
|
35441C
|
35441C
35441-50030 Strainer, Solenoid Oil[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．１ |
35441-50030 |
US $6.46 |
||
|
35450E
|
35450E
35495-22020 Ball (For Transfer Upper Valve Body)[09.1999 - 08.2001] JZS171,173..4FC 外径＝５．５３５，ラバー |
35495-22020 |
US $4.66 |
||
|
35450E
|
35450E
35496-22030 Ball (For Lower Valve Body)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC 外径＝６．３５，ラバー |
35496-22030 |
US $4.54 |
||
|
35599
|
35599
35599-22020 Cover, Manual Detent Spring[09.1999 - 08.2001] JZS17#,UZS17# |
35599-22020 |
US $3.64 |
||
|
9010505001
|
9010505001
90105-05001 New Genuine Part |
90105-05001 |
US $1.51 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
