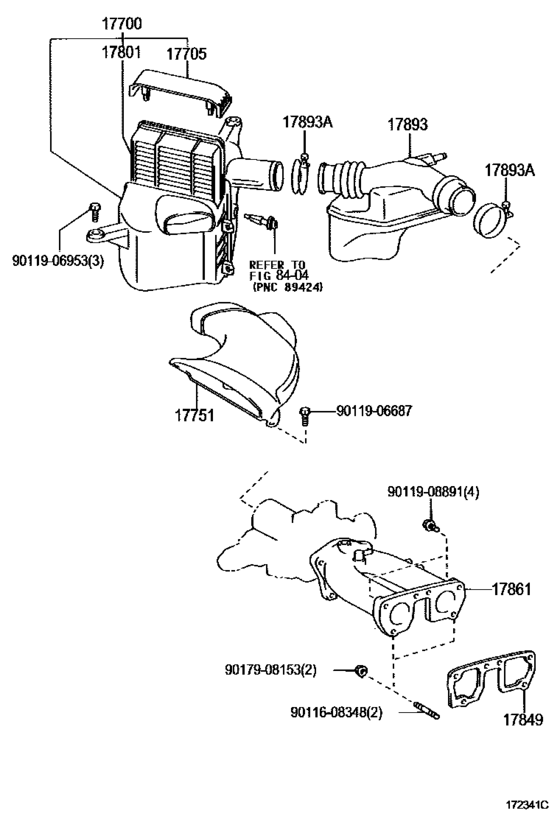

Air Cleaner ([09.1999 - ] (9909- )1JZGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-46410 Cleaner Assy, Air[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175 |
17700-46410 |
US $336.34 |
||
|
17705
|
17705
17705-46140
Cap Sub-Assy, Air Cleaner
[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
17705-46140 |
— | ||
|
17751
|
17751
17751-46120 Inlet, Air Cleaner, No.1[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
17751-46120 |
US $135.41 |
||
|
17801
|
17801
17801-46090 Element Sub-Assy, Air Cleaner Filter[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175,177 |
17801-46090 |
US $52.08 |
||
|
17849
|
17849
17849-46020 Gasket, Intake Air Connector[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
17849-46020 |
from US $6.37 |
||
|
17861
|
17861
17860-46102 Connector, Intake Air[09.1999 - 08.2001] 1JZGE..JZS171,173 |
17860-46102 |
US $285.38 |
||
|
17893
|
17893
17893-46160 Resonator, Intake Air[09.1999 - 08.2001] 1JZGE,2JZGE..JZS173,179 |
17893-46160 |
US $120.85 |
||
|
17893A
|
17893A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
96111-10800 |
from US $2.87 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $2.15 |
||
|
9011906953
|
9011906953
90119-06953 BOLT WWASHER |
90119-06953 |
from US $0.78 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
