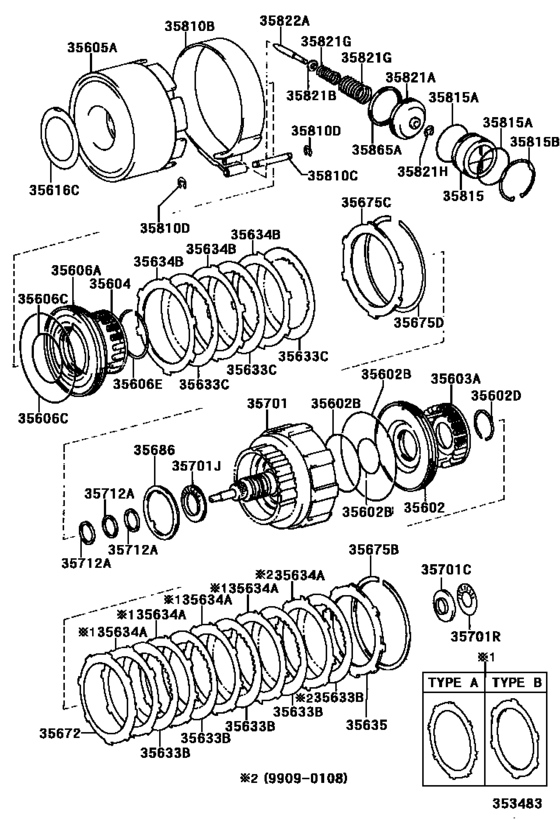

Brake Band & Multiple Disc Clutch (Atm) ([09.1999 - ] A340E,A340H (9909- )JZS171,173..4FC..D4,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602
|
35602
35602-30062 Piston Sub-Assy, Front Clutch[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35602-30062 |
US $37.13 |
||
|
35602B
|
35602B
90301-39005 Ring, O (For Forward Clutch Piston)[09.1999 - 07.2000] JZS171..SED..ATH; JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
90301-39005 |
US $2.97 |
||
|
35602B
|
35602B
90301-72003 Ring, O (For Forward Clutch Piston)[12.1999 - 08.2001] JZS171,173..WG..4FC..(ATH,ROY) |
90301-72003 |
US $5.59 |
||
|
35602B
|
35602B
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS17#,UZS17# 外側 |
90301-99058 |
US $3.58 |
||
|
35602D
|
35602D
90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90520-35001 |
US $1.46 |
||
|
35603A
|
35603A
35603-30011 Spring Sub-Assy, Forward Clutch Return[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35603-30011 |
US $8.88 |
||
|
35604
|
35604
35604-35010 Spring Sub-Assy, Direct Clutch Return[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35604-35010 |
US $12.96 |
||
|
35605A
|
35605A
35605-22040 Drum Sub-Assy, Direct Clutch[05.2000 - 08.2001] JZS171,173,179..4FC..TWC |
35605-22040 |
US $167.73 |
||
|
35605A
|
35605A
35605-30060 Drum Sub-Assy, Direct Clutch[02.2000 - 05.2000] JZS171,173,UZS173..4FC |
35605-30060 |
US $155.79 |
||
|
35606A
|
35606A
35606-35010 Piston Sub-Assy, Direct Clutch[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35606-35010 |
US $35.67 |
||
|
35606C
|
35606C
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS17#,UZS17# 内側 |
90301-65006 |
US $5.38 |
||
|
35606C
|
35606C
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC 外側 |
90301-99058 |
US $3.58 |
||
|
35606E
|
35606E
90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90520-58001 |
US $1.89 |
||
|
35616C
|
35616C
35616-30050 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35616-30050 |
US $3.64 |
||
|
35633B
|
35633B
35677-30170 Disc, Clutch (For Forward Multiple Disc Clutch)[08.2001 -] JZS171,173..4FC..(D4,TWC) |
35677-30170 |
from US $28.12 |
||
|
35633C
|
35633C
35667-30070 Disc, Clutch (For Direct Multiple Disc Clutch)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35667-30070 |
US $35.47 |
||
|
35634A
|
35634A
35634-30110 Plate, Clutch (For Forward Multiple Disc Clutch)[09.1999 - 08.2001] JZS171,173,179..4FC..TWC 厚さ＝２．３ |
35634-30110 |
US $30.74 |
||
|
35634A
|
35634A
35634-30160 Plate, Clutch (For Forward Multiple Disc Clutch)[08.2001 -] JZS171..ATH 厚さ＝１．８; JZS171,173..4FC..(D4,TWC) 厚さ＝１．８,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
35634-30160 |
US $16.02 |
||
|
35634A
|
35634A
35634-32010 Plate, Clutch (For Forward Multiple Disc Clutch)[08.2001 -] JZS171,173..4FC..(D4,TWC) 厚さ＝１．８,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
35634-32010 |
US $16.98 |
||
|
35634B
|
35634B
35647-22030 Plate, Clutch (For Direct Multiple Disc Clutch)[02.2000 - 08.2001] JZS171,173..4FC..TWC 厚さ＝２．３ |
35647-22030 |
US $22.71 |
||
|
35635
|
35635
35635-30020 Flange, Forward Clutch[09.1999 - 08.2001] JZS171,173..4FC..TWC 厚さ＝４．２０，マーク ６３ |
35635-30020 |
US $54.16 |
||
| replacement | |||||
|
35635
|
35635
35635-30100 Flange, Forward Clutch[09.1999 - 08.2001] JZS171,173..4FC..TWC 厚さ＝４．２０，マーク ６３ |
35635-30100 |
US $34.07 |
||
|
35635
|
35635
35635-30030 Flange, Forward Clutch[09.1999 - 08.2001] JZS171,173..4FC..TWC 厚さ＝４．４０，マーク ６４ |
35635-30030 |
US $54.16 |
||
| replacement | |||||
|
35635
|
35635
35635-30110 Flange, Forward Clutch[09.1999 - 08.2001] JZS171,173..4FC..TWC 厚さ＝４．４０，マーク ６４ |
35635-30110 |
US $34.07 |
||
|
35635
|
35635
35635-30040 Flange, Forward Clutch[09.1999 - 08.2001] JZS175,177,UZS171,175;JZS171,173,179,UZS173..4FC 厚さ＝４．０，マーク ９５ |
35635-30040 |
US $26.38 |
||
|
35635
|
35635
35635-30050 Flange, Forward Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．８，マーク ９４ |
35635-30050 |
US $27.08 |
||
|
35635
|
35635
35635-30060 Flange, Forward Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．６，マーク ９３ |
35635-30060 |
US $31.45 |
||
|
35635
|
35635
35635-30070 Flange, Forward Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．４，マーク ９２ |
35635-30070 |
US $27.08 |
||
|
35635
|
35635
35635-30080 Flange, Forward Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．２，マーク ９１ |
35635-30080 |
US $27.08 |
||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[09.2001 -] JKS175,JZS17#,UZS17# 厚さ＝３．０，マーク ９０ |
35635-30090 |
US $27.08 |
||
|
35635
|
35635
35635-30100 Flange, Forward Clutch[09.2001 -] JZS171,173..4FC..(D4,TWC) 厚さ＝４．２，マーク ９６ |
35635-30100 |
US $34.07 |
||
|
35635
|
35635
35635-30110 Flange, Forward Clutch[09.2001 -] JZS171,173..4FC..(D4,TWC) 厚さ＝４．４，マーク ９７ |
35635-30110 |
US $34.07 |
||
|
35635
|
35635
35635-50060 Flange, Forward Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．００，マーク ６１ |
35635-50060 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．００，マーク ６１ |
35635-30090 |
US $27.08 |
||
|
35672
|
35672
35672-30010 Plate, Clutch Cushion[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35672-30010 |
US $15.90 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-99001 |
US $4.54 |
||
|
35675C
|
35675C
35675-22030 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．３，マーク ３３ |
35675-22030 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．３，マーク ３３ |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-22040 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．４，マーク ３４ |
35675-22040 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．４，マーク ３４ |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-22080 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．８，マーク ３８ |
35675-22080 |
US $81.54 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[09.1999 - 05.2000] JZS17#,UZS17# 厚さ＝３．８，マーク ３８ |
35675-30260 |
US $51.40 |
||
|
35675C
|
35675C
35675-22090 Flange, Direct Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝３．９，マーク ３９ |
35675-22090 |
US $82.99 |
||
|
35675C
|
35675C
35675-22100 Flange, Direct Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝４．０，マーク ４０ |
35675-22100 |
US $84.45 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30270 Flange, Direct Clutch[09.1999 - 08.2001] JZS17#,UZS17# 厚さ＝４．０，マーク ４０ |
35675-30270 |
US $52.71 |
||
|
35675C
|
35675C
35675-30180 Flange, Direct Clutch[05.2000 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC 厚さ＝４．１ |
35675-30180 |
US $78.62 |
||
|
35675C
|
35675C
35675-30210 Flange, Direct Clutch[02.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．５，マーク ５５ |
35675-30210 |
US $56.09 |
||
|
35675C
|
35675C
35675-30220 Flange, Direct Clutch[02.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．６，マーク ５６ |
35675-30220 |
US $50.52 |
||
|
35675C
|
35675C
35675-30230 Flange, Direct Clutch[02.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．７，マーク ５７ |
35675-30230 |
US $50.81 |
||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[05.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．３，マーク ５３ |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[05.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．４，マーク ５４ |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[05.2000 - 08.2001] JZS17#,UZS17# 厚さ＝３．８，マーク ５８ |
35675-30260 |
US $51.40 |
||
|
35675C
|
35675C
35675-30270 Flange, Direct Clutch[09.2001 -] JKS175,JZS17#,UZS17# 厚さ＝４．０，マーク ６０ |
35675-30270 |
US $52.71 |
||
|
35675D
|
35675D
90520-99018 Ring, Hole Snap (For Direct Clutch Flange)[02.2000 - 08.2001] JZS17#,UZS17# |
90520-99018 |
US $3.20 |
||
|
35686
|
35686
35686-30010 Washer, Clutch Drum Thrust (For Input Shaft)[09.1999 - 08.2001] JZS17#,UZS17# |
35686-30010 |
US $3.79 |
||
|
35701
|
35701
35701-22070 Shaft Sub-Assy, Input[09.1999 - 08.2001] JZS173 |
35701-22070 |
US $407.68 |
||
|
35701
|
35701
35701-22120 Shaft Sub-Assy, Input[08.2001 -] JZS173 |
35701-22120 |
US $476.11 |
||
|
35701C
|
35701C
35789-30110 Race, Thrust Bearing (For Input Shaft Rear)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35789-30110 |
US $7.72 |
||
|
35701J
|
35701J
90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90374-33001 |
US $15.87 |
||
|
35701R
|
35701R
90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90374-25005 |
US $13.25 |
||
|
35712A
|
35712A
35712-30020 Ring, Input Shaft Oil Seal[09.1999 - 08.2001] JZS17#,UZS17# |
35712-30020 |
US $5.59 |
||
|
35810B
|
35810B
35810-50020 Band Assy, 2Nd Coast Brake[09.1999 - 08.2001] JZS171,173,UZS173..4FC..(HTWC,TWC) |
35810-50020 |
US $90.20 |
||
|
35810C
|
35810C
90249-07011 Pin (For 2Nd Coast Brake Band)[09.1999 - 08.2001] JZS17#,UZS17# |
90249-07011 |
US $2.80 |
||
|
35810D
|
35810D
96160-00500 Ring, E(For Over Center Lever)[09.1999 - 08.2001] JZS17#,UZS17# |
96160-00500 |
from US $0.82 |
||
|
35815
|
35815
35815-22010 Cover, 2Nd Coast Brake[09.1999 - 08.2001] JZS17#,UZS171,175 |
35815-22010 |
US $10.13 |
||
|
35815A
|
35815A
90301-48001 Ring, O (For 2Nd Coast Brake Cover)[09.1999 - 08.2001] JZS17#,UZS17# |
90301-48001 |
US $4.66 |
||
|
35815B
|
35815B
90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-60003 |
US $1.05 |
||
|
35821A
|
35821A
35821-22020 Piston, 2Nd Coast Brake[09.1999 - 08.2001] JZS17#,UZS171,175 |
35821-22020 |
US $12.41 |
||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS17#,UZS17# |
90201-06557 |
US $0.79 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS17#,UZS17# 外側 |
90501-26024 |
US $1.05 |
||
|
35821G
|
35821G
90501-32037 Spring, Compression (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS17#,UZS171,175 内側 |
90501-32037 |
US $0.96 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[09.1999 - 08.2001] JZS17#,UZS17# |
96160-00500 |
from US $0.82 |
||
|
35822A
|
35822A
35822-22010 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS17#,UZS171,175 長さ＝７８．４ |
35822-22010 |
US $3.35 |
||
|
35822A
|
35822A
35822-22020 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS17#,UZS171,175 長さ＝７９．９ |
35822-22020 |
US $3.35 |
||
|
35865A
|
35865A
35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal[09.1999 - 08.2001] JZS17#,UZS17# |
35865-30010 |
US $6.99 |
||
