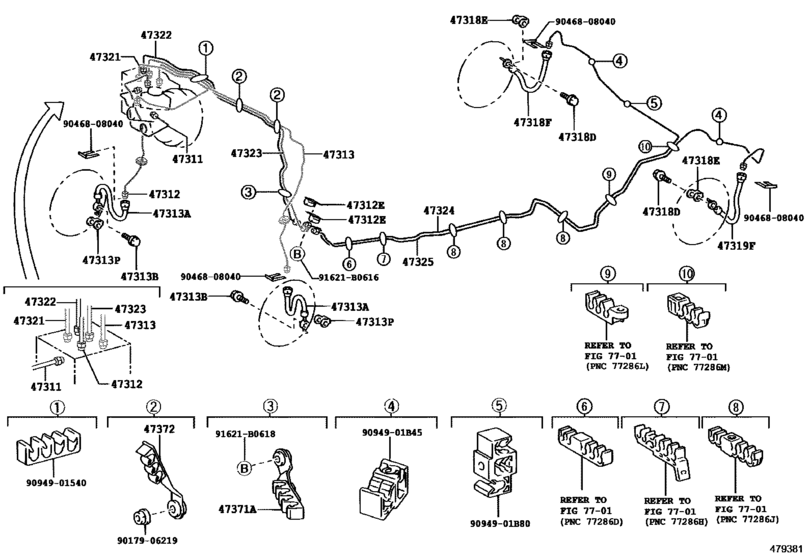

Brake Tube & Clamp ([09.1999 - ] (9909- )JZS173) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-30651 Tube, Front Brake, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47311-30651 |
US $14.71 |
||
|
47312
|
47312
47312-30501 Tube, Front Brake, No.2[09.1999 - 08.2001] JZS173,179 |
47312-30501 |
US $14.71 |
||
|
47312E
|
47312E
90412-10144 Way, No.1(For Front Brake Tube)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90412-10144 |
US $13.98 |
||
|
47313
|
47313
47313-30451 Tube, Front Brake, No.3[09.1999 - 08.2001] JZS173,179 |
47313-30451 |
US $27.08 |
||
|
47313A
|
47313A
90947-02841
Hose, Flexible, No.1(For Front)
[09.1999 - 08.2001] JZS173,179 |
90947-02841 |
— | ||
| replacement | |||||
|
47313A
|
47313A
90947-02C45 Hose, Flexible, No.1(For Front)[09.1999 - 08.2001] JZS173,179 |
90947-02C45 |
from US $15.90 |
||
|
47313A
|
47313A
90947-02C45 Hose, Flexible, No.1(For Front)[06.2004 -] JZS173 |
90947-02C45 |
from US $15.90 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
47389-50020 |
from US $4.79 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
47389-50020 |
from US $4.79 |
||
|
47318F
|
47318F
90947-02A29 Hose, Flexible(For Rear Rh)[06.2004 -] JZS17# |
90947-02A29 |
US $26.88 |
||
|
47318F
|
47318F
90947-02C29
Hose, Flexible(For Rear Rh)
[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90947-02C29 |
— | ||
| replacement | |||||
|
47318F
|
47318F
90947-02A29 Hose, Flexible(For Rear Rh)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90947-02A29 |
US $26.88 |
||
|
47319F
|
47319F
90947-02A29 Hose, Flexible(For Rear Rh)[06.2004 -] JZS17# |
90947-02A29 |
US $26.88 |
||
|
47319F
|
47319F
90947-02C29
Hose, Flexible(For Rear Rh)
[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90947-02C29 |
— | ||
| replacement | |||||
|
47319F
|
47319F
90947-02A29 Hose, Flexible(For Rear Rh)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90947-02A29 |
US $26.88 |
||
|
47321
|
47321
47321-30361 Tube, Rear Brake, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47321-30361 |
US $12.67 |
||
|
47322
|
47322
47322-30281 Tube, Rear Brake, No.2[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47322-30281 |
US $21.99 |
||
|
47323
|
47323
47323-30241 Tube, Rear Brake, No.3[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47323-30241 |
US $21.99 |
||
|
47324
|
47324
47324-30271 Tube, Rear Brake, No.4[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47324-30271 |
US $64.06 |
||
|
47325
|
47325
47325-30061 Tube, Rear Brake, No.5[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47325-30061 |
US $57.51 |
||
|
47371A
|
47371A
47371-30530 Clamp, Brake Tube, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47371-30530 |
US $24.02 |
||
|
47372
|
47372
47371-51010 Clamp, Brake Tube, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47371-51010 |
US $9.03 |
||
| replacement | |||||
|
47372
|
47372
47371-51030 Clamp, Brake Tube, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
47371-51030 |
US $9.17 |
||
|
47372
|
47372
47371-51030 Clamp, Brake Tube, No.1[08.2001 -] GS171,JKS175,JZS171,173,175,179 |
47371-51030 |
US $9.17 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.25 |
||
|
9094901B45
|
9094901B45
90949-01B45 Clamp(For Clutch Master Cylinder Tube) |
90949-01B45 |
US $3.94 |
||
|
9094901B80
|
9094901B80
90949-01B80 Clamp, Tube |
90949-01B80 |
US $3.67 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
US $1.25 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
||
|
9094901540
|
9094901540
90949-01540 Clamp, Brake Tube, No.7 |
90949-01540 |
US $3.05 |
||
