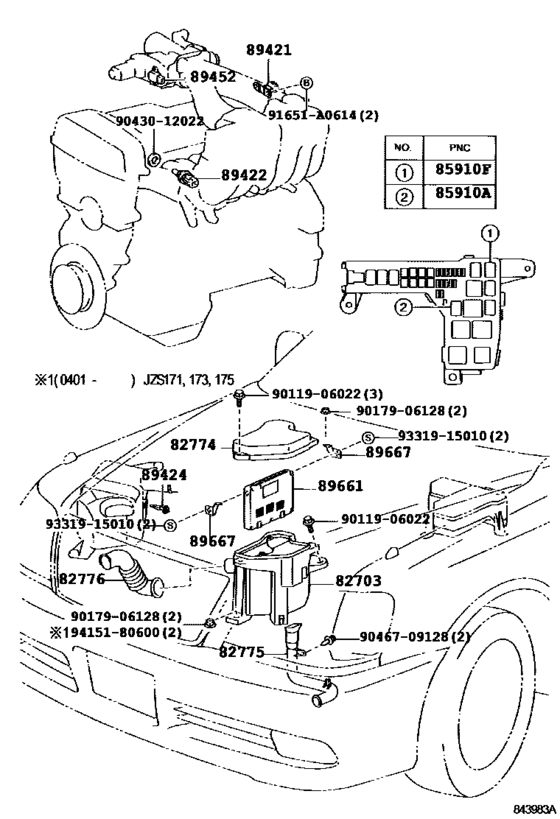

Electronic Fuel Injection System ([09.1999 - ] (9909- )JZS171,173..TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703
|
82703
82703-30020 Box Sub-Assy, Engine Room Ecu[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
82703-30020 |
US $196.56 |
||
|
82774
|
82774
82774-30030 Cover, Engine Room Ecu[09.1999 - 08.2001] JZS171,173,175,177,UZS17#..D4,HTWC,TWC |
82774-30030 |
US $78.62 |
||
|
82775
|
82775
82775-30020 Duct, Engine Room Ecu Inlet[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
82775-30020 |
from US $29.20 |
||
|
82776
|
82776
82776-30020 Duct, Engine Room Ecu Outlet[09.1999 - 08.2001] GS171,JZS171,173,175,179..D4,HTWC,TWC |
82776-30020 |
US $16.89 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90987-02012 |
from US $25.86 |
||
|
89421
|
89421
89421-20190 Sensor Assy, Vacuum[09.1999 - 08.2001] GS171,JZS171,173,175,177..D4,HTWC,TWC |
89421-20190 |
from US $127.92 |
||
|
89422
|
89422
89422-30030 Sensor, Water Temperature (For E.f.i.)[09.1999 - 08.2001] JZS17#,UZS17# |
89422-30030 |
from US $47.92 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[09.1999 - 08.2001] GS171,JZS171,173,175,177..D4,HTWC,TWC |
89424-12010 |
from US $56.24 |
||
|
89452
|
89452
89452-30140 Sensor, Throttle Position (For E.f.i.)[09.1999 - 08.2001] JZS171,173,UZS17# |
89452-30140 |
from US $188.10 |
||
|
89661
|
89661
89661-31070 Computer, Engine Control[08.2001 -] JZS173..WG |
89661-31070 |
US $1,907.36 |
||
|
89661
|
89661
89661-3A770 Computer, Engine Control[12.1999 - 08.2001] JZS173..WG |
89661-3A770 |
US $1,907.36 |
||
| replacement | |||||
|
89661
|
89661
89661-3F130 Computer, Engine Control[12.1999 - 08.2001] JZS173..WG |
89661-3F130 |
US $1,907.36 |
||
|
89667
|
89667
89667-30270 Bracket, Engine Control Computer[09.1999 - 08.2001] JZS171,173..TWC |
89667-30270 |
US $9.17 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
||
|
9043012022
|
9043012022
90430-12022 Gasket(For Manifold Plug) |
90430-12022 |
US $2.87 |
||
|
9046709128
|
9046709128
90467-09128 CLIP |
90467-09128 |
US $4.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
