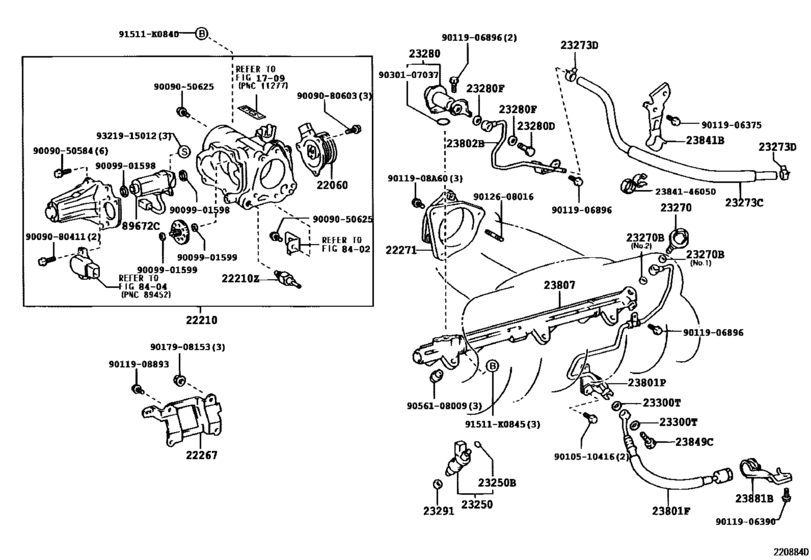

Fuel Injection System ([09.1999 - ] (9909- )1JZGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22060
|
22060
22060-46060 Lever Assy, Throttle W/sensor[09.1999 - 08.2001] 1JZGE..JZS171,173 |
22060-46060 |
US $378.56 |
||
|
22210
|
22210
22030-46200 Body Assy, Throttle[09.1999 - 08.2001] 1JZGE..JZS171,173 |
22030-46200 |
from US $774.88 |
||
|
22210Z
|
22210Z
90916-03105 Thermostat, Manifold[09.1999 - 08.2001] 1JZGE..JZS171,173 |
90916-03105 |
US $48.78 |
||
|
22267
|
22267
22267-46040 Bracket, Throttle Body[09.1999 - 08.2001] 1JZGE..JZS171,173 |
22267-46040 |
US $24.46 |
||
|
22271
|
22271
22271-46050 Gasket, Throttle Body[09.1999 - 08.2001] 1JZGE..JZS171,173 |
22271-46050 |
US $74.42 |
||
|
23250
|
23250
23209-46080 Injector Assy, Fuel[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23209-46080 |
US $313.56 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[09.1999 - 08.2001] 1JZ#..JZS171,173 |
90301-07024 |
from US $2.72 |
||
|
23270
|
23270
23207-46021 Damper Assy, Fuel Pressure Pulsation[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
23207-46021 |
US $89.76 |
||
|
23270B
|
23270B
90430-12026 Gasket[09.1999 - 08.2001] 1JZ#,2JZGE..JZS171,173,179 ＮＯ．２ |
90430-12026 |
from US $0.80 |
||
|
23270B
|
23270B
90430-14008 Gasket(For Water Hole)[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 ＮＯ．１ |
90430-14008 |
from US $0.95 |
||
|
23273C
|
23273C
23273-46030 Hose, Fuel, No.2[09.1999 - 04.2000] 1JZGE..JZS173 |
23273-46030 |
US $44.55 |
||
|
23273C
|
23273C
23273-46031 Hose, Fuel, No.2[04.2000 - 08.2001] 1JZGE..JZS173 |
23273-46031 |
US $44.55 |
||
|
23273D
|
23273D
90467-13039
Clamp, Hose
[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175..ATH,ATHG,ROY,ROYEX,ROYG ＮＯ．２ |
90467-13039 |
— | ||
| replacement | |||||
|
23273D
|
23273D
96135-51300 Clamp, Hose[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175..ATH,ATHG,ROY,ROYEX,ROYG ＮＯ．２ |
96135-51300 |
from US $1.86 |
||
|
23273D
|
23273D
96135-51300 Clamp, Hose[08.2001 -] 1JZGE..JZS173; 1JZFSE,2JZFSE..JKS175,JZS171,175 ＮＯ．２ |
96135-51300 |
from US $1.86 |
||
|
23280
|
23280
23280-46010 Regulator Assy, Fuel Pressure[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23280-46010 |
US $131.04 |
||
|
23280D
|
23280D
90401-10038 Bolt, Union(For Fuel Pipe Or Hose Set)[09.1999 - 08.2001] 1JZGE..JZS171,173 |
90401-10038 |
US $3.06 |
||
|
23280F
|
23280F
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[09.1999 - 08.2001] 1JZGE..JZS171,173 |
90430-10012 |
US $2.69 |
||
|
23291
|
23291
23291-46010 Insulator, Injector Vibration[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23291-46010 |
from US $2.15 |
||
|
23300T
|
23300T
90430-12026 Gasket[09.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 |
90430-12026 |
from US $0.80 |
||
|
23801F
|
23801F
23271-46240 Hose, Fuel, No.1[09.1999 - 08.2001] 1JZGE,2JZGE..JZS173,179 |
23271-46240 |
US $72.36 |
||
|
23801P
|
23801P
23801-46070 Pipe Sub-Assy, Fuel, No.1[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23801-46070 |
US $133.95 |
||
|
23802B
|
23802B
23802-46070 Pipe Sub-Assy, Fuel, No.2[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23802-46070 |
US $51.40 |
||
|
23807
|
23807
23807-46040 Pipe Sub-Assy, Fuel Delivery[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23807-46040 |
US $219.86 |
||
| replacement | |||||
|
23807
|
23807
23807-46041 Pipe Sub-Assy, Fuel Delivery[09.1999 - 08.2001] 1JZGE..JZS171,173 |
23807-46041 |
US $221.31 |
||
|
23807
|
23807
23807-46041 Pipe Sub-Assy, Fuel Delivery[10.2003 -] 1JZGE..JZS173 |
23807-46041 |
US $221.31 |
||
|
23841B
|
23841B
23841-46031 Clamp, Fuel Pipe, No.1(For Efi)[09.1999 - 03.2000] 1JZGE,2JZFSE..JZS171,173,175,177 ＮＯ．１ |
23841-46031 |
US $5.82 |
||
|
23841B
|
23841B
23841-46080 Clamp, Fuel Pipe, No.1(For Efi)[04.2000 - 08.2001] 1JZGE,2JZFSE..JZS171,173,175,177..A,ATH,ATHG,C,ROY,ROYEX,ROYG ＮＯ．１ |
23841-46080 |
US $5.82 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 |
90401-12097 |
from US $2.87 |
||
|
23881B
|
23881B
23881-46040 Bracket, Fuel Hose[09.1999 - 08.2001] 1JZGE,2JZGE..JZS173,179 |
23881-46040 |
US $9.03 |
||
|
89672C
|
89672C
89672-30010
Motor, Throttle Control
[09.1999 - 08.2001] UZS17#; JZS171,173 |
89672-30010 |
— | ||
| replacement | |||||
|
89672C
|
89672C
89672-47010 Motor, Throttle Control[09.1999 - 08.2001] UZS17#; JZS171,173 |
89672-47010 |
US $357.24 |
||
|
91511K0840
|
91511K0840
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $3.05 |
||
|
91511K0845
|
91511K0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $3.05 |
||
|
9011908A60
|
9011908A60
90119-08A60 New Genuine Part |
90119-08A60 |
US $0.87 |
||
|
2384146050
|
2384146050
23841-46050 Clamp(For Water By-Pass Hose No.5) |
23841-46050 |
US $3.64 |
||
|
9009050584
|
9009050584
90090-50584
New Genuine Part
|
90090-50584 |
— | ||
|
9009050625
|
9009050625
90090-50625
New Genuine Part
|
90090-50625 |
— | ||
|
9009080411
|
9009080411
90090-80411
New Genuine Part
|
90090-80411 |
— | ||
|
9009080603
|
9009080603
90090-80603
New Genuine Part
|
90090-80603 |
— | ||
|
9009901598
|
9009901598
90099-01598 New Genuine Part |
90099-01598 |
US $1.44 |
||
|
9009901599
|
9009901599
90099-01599 New Genuine Part |
90099-01599 |
US $1.18 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.25 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9011908893
|
9011908893
90119-08893 New Genuine Part |
90119-08893 |
US $3.32 |
||
|
9012608016
|
9012608016
90126-08016 New Genuine Part |
90126-08016 |
US $14.71 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9030107037
|
9030107037
90301-07037 Ring, O(For Fuel Injector) |
90301-07037 |
from US $2.07 |
||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.58 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $3.05 |
||
