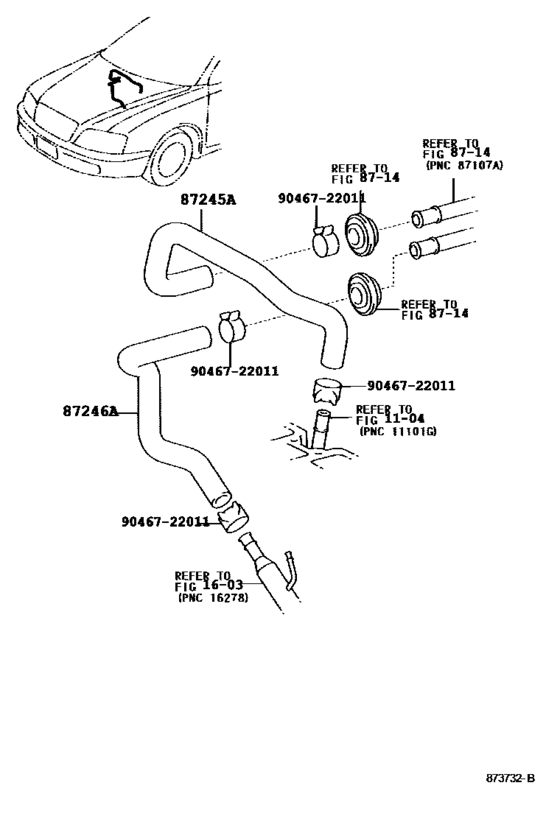

Heating & Air Conditioning - Water Piping ([09.1999 - ] (9909- )JZS173,179) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-51010 Hose, Heater Water, Inlet[09.1999 - 08.2001] JZS171,173,179..TWC |
87245-51010 |
US $26.38 |
||
|
87245A
|
87245A
87245-51040 Hose, Heater Water, Inlet A[09.1999 - 08.2001] JZS171,173,179..TWC ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51040 |
US $15.58 |
||
|
87246A
|
87246A
87245-3F550 Hose, Heater Water, Outlet[09.1999 - 08.2001] JZS173,179 |
87245-3F550 |
US $24.17 |
||
|
87246A
|
87246A
87245-51060 Hose, Heater Water, Outlet A[09.1999 - 08.2001] JZS171,173,175,179..D4,TWC ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51060 |
US $8.44 |
||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.25 |
