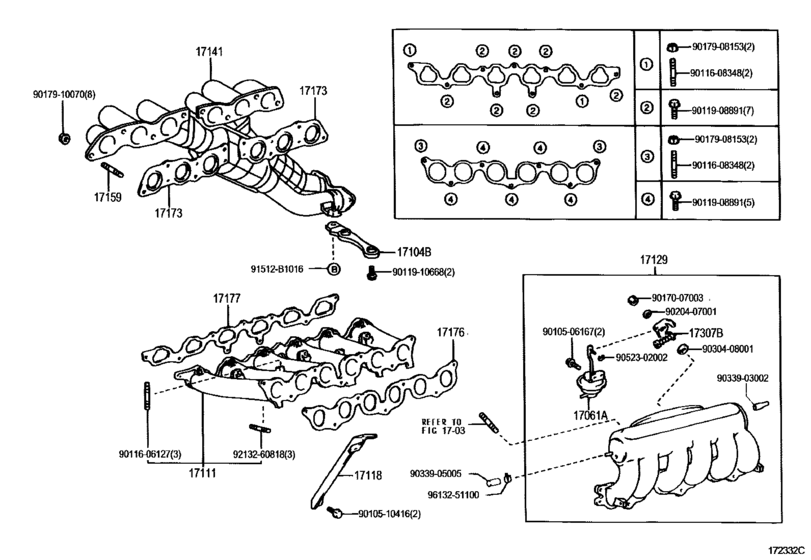

Manifold ([09.1999 - ] (9909- )1JZGE..JZS173) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061A
|
17061A
17061-46010 Diaphragm Sub-Assy[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
17061-46010 |
US $53.87 |
||
|
17104B
|
17104B
17506-46190 Bracket Sub-Assy, Exhaust Manifold[09.1999 - 08.2001] 1JZGE,2JZGE..JZS173,179 |
17506-46190 |
US $39.17 |
||
|
17111
|
17111
17111-46070 Manifold, Intake[09.1999 - 08.2001] 1JZGE..JZS171,173 |
17111-46070 |
US $493.58 |
||
|
17118
|
17118
17118-46042 Stay, Manifold[09.1999 - 08.2001] 1JZGE,2JZGE..JZS173,179 |
17118-46042 |
US $47.90 |
||
|
17129
|
17129
17109-46080 Tank, Intake Air Surge[09.1999 - 08.2001] 1JZGE..JZS171,173 |
17109-46080 |
US $428.06 |
||
|
17141
|
17141
17140-46120 Manifold, Exhaust[09.1999 - 08.2001] 1JZGE..JZS173 |
17140-46120 |
US $1,630.72 |
||
|
17159
|
17159
90126-10014 Bolt, Stud(For Manifold To Cylinder Head)[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179; 2JZFSE..JZS175,177 ＮＯ．２ |
90126-10014 |
from US $3.29 |
||
|
17173
|
17173
17173-46050 Gasket, Exhaust Manifold To Head[09.1999 - 02.2001] 1JZGE,2JZ#..JZS17# |
17173-46050 |
US $18.35 |
||
| replacement | |||||
|
17173
|
17173
17173-46051 Gasket, Exhaust Manifold To Head[09.1999 - 02.2001] 1JZGE,2JZ#..JZS17# |
17173-46051 |
from US $16.40 |
||
|
17173
|
17173
17173-46051 Gasket, Exhaust Manifold To Head[02.2001 - 08.2001] 1JZGE,2JZ#..JZS17# |
17173-46051 |
from US $16.40 |
||
|
17176
|
17176
17176-46010 Gasket, Air Surge Tank To Intake Manifold[09.1999 - 08.2001] 1JZGE..JZS171,173 |
17176-46010 |
US $15.59 |
||
|
17177
|
17177
17177-46060 Gasket, Intake Manifold To Head, No.1[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
17177-46060 |
from US $8.46 |
||
|
17307B
|
17307B
17307-46010 Lever Sub-Assy, Intake Air Control[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
17307-46010 |
US $8.88 |
||
|
91512B1016
|
91512B1016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.33 |
||
|
9010506167
|
9010506167
90105-06167 New Genuine Part |
90105-06167 |
US $1.60 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9011608348
|
9011608348
90116-08348 Bolt, Stud(For Water Outlet) |
90116-08348 |
from US $1.65 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.33 |
||
|
9017007003
|
9017007003
90170-07003 Nut, Hexagon(For Valve Adjusting) |
90170-07003 |
US $0.96 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9020407001
|
9020407001
90204-07001 New Genuine Part |
90204-07001 |
US $1.02 |
||
|
9030408001
|
9030408001
90304-08001 New Genuine Part |
90304-08001 |
US $6.63 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9033905005
|
9033905005
90339-05005 New Genuine Part |
90339-05005 |
US $3.05 |
||
|
9052302002
|
9052302002
90523-02002 Ring, E(For Surge Tank Diaphrgm) |
90523-02002 |
US $0.61 |
||
|
9213260818
|
9213260818
92132-60818 Bolt, Stud(For Chain Damper) |
92132-60818 |
US $0.96 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
