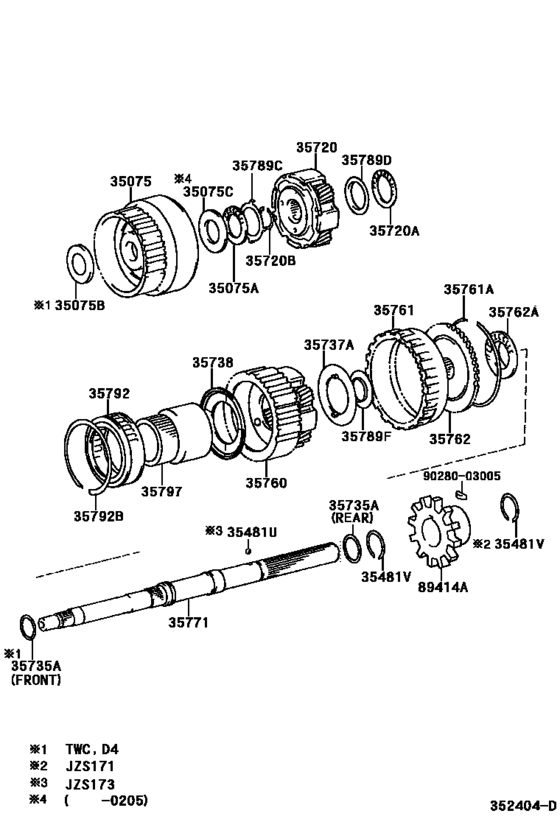

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.1999 - ] A340E,A340H (9909- )JZS171,173..4FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35075
|
35075
35075-50010 Gear Sub-Assy, Front Planetary Ring[09.1999 - 08.2001] JZS171,173,179..4FC |
35075-50010 |
US $269.07 |
||
|
35075A
|
35075A
90374-32004 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)[09.1999 - 08.2001] JZS171,173..4FC |
90374-32004 |
US $13.98 |
||
| replacement | |||||
|
35075A
|
35075A
90374-35004 Bearing, Thrust Needle Roller (For Front Planetary Ring)[09.1999 - 08.2001] JZS171,173..4FC |
90374-35004 |
US $11.94 |
||
|
35075A
|
35075A
90374-35004 Bearing, Thrust Needle Roller (For Front Planetary Ring)[05.2002 -] JZS171,173..4FC |
90374-35004 |
US $11.94 |
||
|
35075B
|
35075B
35789-30120 Race, Thrust Bearing (For Front Planetary Ring Gear Front)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35789-30120 |
US $5.39 |
||
|
35075C
|
35075C
35789-30130 Race, Thrust Bearing (For Front Planetary Ring Gear Rr)[09.1999 - 08.2001] JZS171,173..4FC |
35789-30130 |
US $11.07 |
||
|
35481U
|
35481U
90360-06004 Ball, Detent(For Gear Shift Head No.4)[09.1999 - 08.2001] JZS173,179 |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35481U
|
35481U
90080-36191
Ball, Check Valve
[09.1999 - 08.2001] JZS173,179 |
90080-36191 |
— | ||
|
35481V
|
35481V
90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)[09.1999 - 08.2001] GS171,JZS171,173,175,179 厚さ＝１．５０，外径＝３３．８ |
90520-28009 |
from US $1.46 |
||
|
35720
|
35720
35720-30080 Gear Assy, Front Planetary[09.1999 - 08.2001] JZS171,173,179..4FC |
35720-30080 |
US $391.37 |
||
|
35720A
|
35720A
90374-35001 Bearing, Thrust Needle Roller (For Front Planetary Gear)[09.1999 - 08.2001] JZS171,173,179..4FC |
90374-35001 |
US $16.89 |
||
|
35720B
|
35720B
90520-24026 Ring, Shaft Snap (For Front Planetary Gear)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90520-24026 |
US $1.05 |
||
|
35735A
|
35735A
35735-30020 Ring, Planetary Output Shaft Oil Seal[09.1999 - 08.2001] JZS173,179,UZS173 フロント; JZS171..4FC |
35735-30020 |
US $10.83 |
||
|
35735A
|
35735A
35735-30030 Ring, Planetary Output Shaft Oil Seal[09.1999 - 08.2001] JZS173,179,UZS173 リヤ |
35735-30030 |
US $3.06 |
||
|
35737A
|
35737A
35737-30030 Washer, Planetary Carrier Thrust, No.1[09.1999 - 08.2001] JZS171,173,179..4FC |
35737-30030 |
US $3.06 |
||
|
35738
|
35738
35739-30030 Washer, Planetary Carrier Thrust, No.2[09.1999 - 08.2001] JZS171,173,179..4FC |
35739-30030 |
US $4.37 |
||
|
35760
|
35760
35705-30010 Gear Assy, Rear Planetary[09.1999 - 08.2001] JZS171,173,179..4FC |
35705-30010 |
US $382.93 |
||
|
35761
|
35761
35761-30020 Gear, Rear Planetary Ring[09.1999 - 08.2001] JZS171,173..4FC |
35761-30020 |
US $101.92 |
||
|
35761A
|
35761A
90521-99024 Ring, Hole Snap (For Overdrive Planetary Ring Gear)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90521-99024 |
US $2.62 |
||
|
35762
|
35762
35762-30040 Flange, Rear Planetary Ring Gear[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35762-30040 |
US $71.20 |
||
|
35762A
|
35762A
90374-38003 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90374-38003 |
US $9.32 |
||
|
35771
|
35771
35771-30100 Shaft, Output[09.1999 - 08.2001] JZS173,179 |
35771-30100 |
US $618.80 |
||
|
35789C
|
35789C
35789-30080 Race, Thrust Bearing (For Overdrive Support Front)[09.1999 - 08.2001] JZS171,173,179..4FC |
35789-30080 |
US $5.02 |
||
|
35789D
|
35789D
35789-30100 Race, Thrust Bearing (For Front Planetary Gear Rear)[09.1999 - 08.2001] JZS171,173,179..4FC |
35789-30100 |
US $6.12 |
||
|
35789F
|
35789F
35789-30160 Race, Thrust Bearing (For Rear Planetary Flange)[09.1999 - 08.2001] JZS171,173,179..4FC |
35789-30160 |
US $9.61 |
||
|
35792
|
35792
35792-14020 Clutch, 1 Way, No.2[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35792-14020 |
US $122.30 |
||
|
35792B
|
35792B
90521-87001 Ring, Hole Snap (For Rear Planetary Ring Gear)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90521-87001 |
US $2.62 |
||
|
35797
|
35797
35797-50010 Race, 1 Way Clutch Inner[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35797-50010 |
US $91.73 |
||
|
89414A
|
89414A
89414-22030 Rotor, Sensor[09.1999 - 08.2001] JZS173,179 |
89414-22030 |
US $41.64 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
