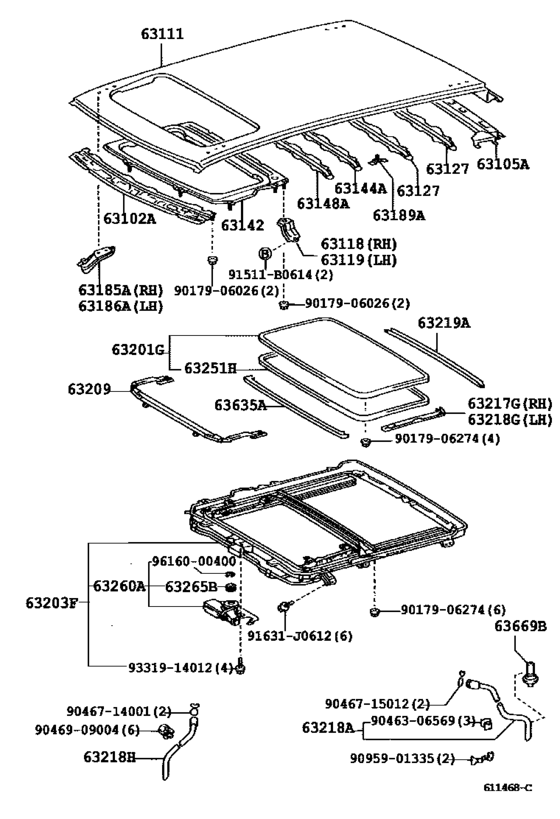

Roof Panel & Back Window Glass ([08.2001 - ] ｱﾘ(ﾑ-ﾝﾙ-ﾌ) (0108- )WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-31900 Panel Sub-Assy, Windshield Header[12.1999 - 08.2001] JZS171,173,175..WG |
63102-31900 |
US $96.10 |
||
|
63102A
|
63102A
63102-31901 Panel Sub-Assy, Windshield Header[12.1999 - 08.2001] JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63102-31901 |
US $77.17 |
||
| replacement | |||||
|
63102A
|
63102A
63102-30190 Panel Sub-Assy, Windshield Header[12.1999 - 08.2001] JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63102-30190 |
US $77.17 |
||
|
63102A
|
63102A
63102-31902 Panel Sub-Assy, Windshield Header[08.2001 -] GS171,JZS171,173,175..WG |
63102-31902 |
US $77.17 |
||
|
63105A
|
63105A
63105-31010 Frame Sub-Assy, Back Door Opening[12.1999 - 08.2001] JZS171,173,175..WG |
63105-31010 |
US $155.79 |
||
|
63111
|
63111
63111-31010 Panel, Roof[12.1999 - 08.2001] JZS171,173,175..WG |
63111-31010 |
US $1,147.33 |
||
|
63111
|
63111
63111-31020 Panel, Roof[12.1999 - 08.2001] JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63111-31020 |
US $1,147.33 |
||
|
63111
|
63111
63111-31030 Panel, Roof[08.2001 - 12.2005] GS171,JZS171,173,175..WG ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ) |
63111-31030 |
US $1,147.33 |
||
|
63111
|
63111
63111-31040 Panel, Roof[08.2001 - 12.2005] GS171,JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾍﾙﾌﾟﾈﾂﾄ ｼｽﾃﾑ) |
63111-31040 |
US $1,147.33 |
||
|
63118
|
63118
63118-31010 Support, Roof Panel, Rh[12.1999 - 08.2001] JZS171,173,175..WG |
63118-31010 |
US $4.95 |
||
|
63119
|
63119
63118-31010 Support, Roof Panel, Rh[12.1999 - 08.2001] JZS171,173,175..WG |
63118-31010 |
US $4.95 |
||
|
63127
|
63127
63127-31010 Reinforcement, Roof Panel, No.5[12.1999 - 08.2001] JZS171,173,175..WG |
63127-31010 |
US $32.18 |
||
|
63142
|
63142
63142-30110 Reinforcement, Roof Panel, No.2[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63142-30110 |
US $160.16 |
||
|
63144A
|
63144A
63144-30110 Reinforcement, Roof Panel, No.4[12.1999 - 08.2001] JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63144-30110 |
US $30.58 |
||
| replacement | |||||
|
63144A
|
63144A
63144-30150 Reinforcement, Roof Panel, No.4[12.1999 - 08.2001] JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63144-30150 |
US $30.58 |
||
|
63148A
|
63148A
63148-30070 Reinforcement, Roof Panel, No.7[09.1999 - 08.2001] JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
63148-30070 |
US $48.34 |
||
|
63185A
|
63185A
63185-31010 Bracket, Roof Rack, Front Rh[12.1999 - 08.2001] JZS171,173,175..WG |
63185-31010 |
US $19.80 |
||
|
63186A
|
63186A
63186-31010 Bracket, Roof Rack, Front Lh[12.1999 - 08.2001] JZS171,173,175..WG |
63186-31010 |
US $19.80 |
||
|
63189A
|
63189A
63189-31010 Bracket, Roof Rack, Center[12.1999 - 08.2001] JZS171,173,175..WG |
63189-31010 |
US $5.24 |
||
|
63201G
|
63201G
63201-30110 Glass Sub-Assy, Sliding Roof[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ＊ＴＥＭ，厚さ＝４．０，ダークグリーン |
63201-30110 |
US $1,025.02 |
||
|
63201G
|
63201G
63201-30111 Glass Sub-Assy, Sliding Roof[09.2003 - 06.2007] GS171,JKS175,JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ＊ＴＥＭ，厚さ＝４．０，ダーク グリーン |
63201-30111 |
US $1,027.94 |
||
|
63203F
|
63203F
63203-31010 Housing Sub-Assy, Sliding Roof[12.1999 - 08.2001] JZS171,173,175..WG |
63203-31010 |
US $1,718.08 |
||
|
63203F
|
63203F
63203-31020 Housing Sub-Assy, Sliding Roof[08.2001 -] JZS171,173,175..WG..(D4,TWC) |
63203-31020 |
US $1,601.60 |
||
|
63209
|
63209
63209-31010 Panel Sub-Assy, Roof Wind Deflector[12.1999 - 08.2001] JZS171,173,175..WG |
63209-31010 |
US $269.36 |
||
|
63217G
|
63217G
63217-30080 Garnish, Sliding Roof Side, Rh[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63217-30080 |
US $29.99 |
||
|
63218A
|
63218A
63247-31010 Hose(For Sliding Roof Or Removable Roof Drain)[12.1999 - 08.2001] JZS171,173,175..WG 右側 |
63247-31010 |
US $23.88 |
||
|
63218A
|
63218A
63248-31010 Hose(For Sliding Roof Or Removable Roof Drain)[12.1999 - 08.2001] JZS171,173,175..WG 左側 |
63248-31010 |
US $23.88 |
||
|
63218G
|
63218G
63218-30090 Garnish, Sliding Roof Side, Lh[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63218-30090 |
US $29.99 |
||
|
63218H
|
63218H
63220-30060 Hose, Sliding Roof Drain[12.1999 - 08.2001] JZS171,173,175..WG |
63220-30060 |
US $18.35 |
||
|
63219A
|
63219A
63219-30080 Garnish, Sliding Roof, Rear[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63219-30080 |
US $49.50 |
||
|
63251H
|
63251H
63251-30080
Weatherstrip, Sliding Roof
[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63251-30080 |
— | ||
| replacement | |||||
|
63251H
|
63251H
63251-30081 Weatherstrip, Sliding Roof[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63251-30081 |
US $70.39 |
||
|
63251H
|
63251H
63251-30081 Weatherstrip, Sliding Roof[09.2003 -] JZS171,173,175..WG..(D4,TWC) |
63251-30081 |
US $70.39 |
||
|
63260A
|
63260A
63260-31010 Gear Sub-Assy, Sliding Roof Drive[12.1999 - 08.2001] JZS171,173,175..WG |
63260-31010 |
US $631.90 |
||
|
63260A
|
63260A
63260-31020 Gear Sub-Assy, Sliding Roof Drive[08.2001 -] JZS171,173,175..WG..(D4,TWC) |
63260-31020 |
US $634.82 |
||
|
63265B
|
63265B
63265-30020 Gear, Sliding Roof Drive[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63265-30020 |
US $20.79 |
||
|
63635A
|
63635A
63635-30060
Garnish, Sliding Roof, Front
[09.1999 - 08.2001] JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
63635-30060 |
— | ||
|
63669B
|
63669B
63669-30010
Grommet, Sliding Roof Drain
[09.1999 - 08.2001] JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
63669-30010 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046306569
|
9046306569
90463-06569 Clamp(For Oil Cooler Tube) |
90463-06569 |
US $4.22 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.70 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9046715012
|
9046715012
90467-15012 Clip Or Clamp(For Ventilation Hose) |
90467-15012 |
US $3.58 |
||
|
9046909004
|
9046909004
90469-09004 Clamp, Sliding Roof Or Removable Roof Drain Hose |
90469-09004 |
US $1.60 |
||
|
9095901335
|
9095901335
90959-01335 New Genuine Part |
90959-01335 |
US $2.80 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
