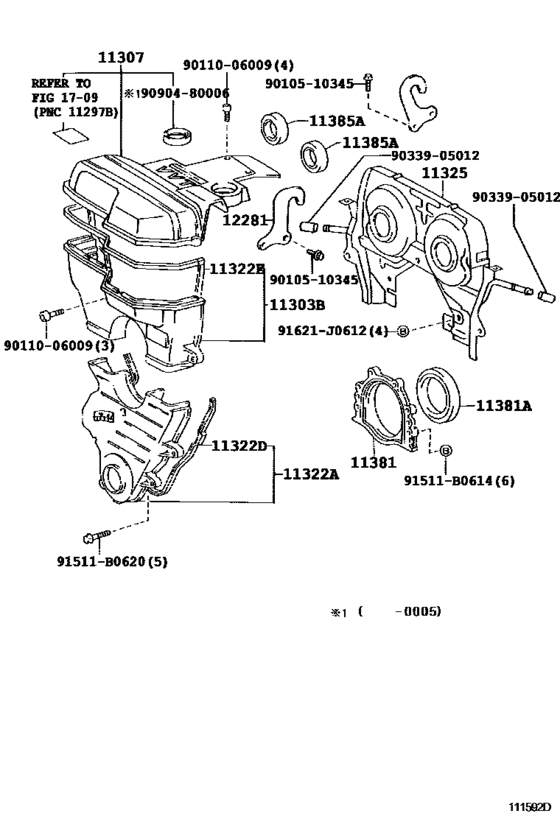

Timing Gear Cover & Rear End Plate ([09.1999 - ] (9909- )1JZGE,2JZGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11303B
|
11303B
11303-46040 Cover Sub-Assy, Timing Belt, No.2[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
11303-46040 |
from US $55.10 |
||
|
11307
|
11307
11304-46060 Cover, Sub-Assy, Timing Belt, No.3[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
11304-46060 |
US $90.20 |
||
|
11322A
|
11322A
11302-46021 Cover, Timing Belt, No.1[09.1999 - 08.2001] 1JZ#..JZS171,173 |
11302-46021 |
US $64.18 |
||
|
11322D
|
11322D
11328-46021 Gasket, Timing Belt Cover, No.1[09.1999 - 08.2001] 1JZ#..JZS171,173 |
11328-46021 |
US $22.18 |
||
|
11322E
|
11322E
11329-46040 Gasket, Timing Belt Cover, No.2[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
11329-46040 |
US $16.67 |
||
|
11325
|
11325
11325-46020
Cover, Timing Belt, No.4
[09.1999 - 08.2001] 1JZGE..JZS171,173 |
11325-46020 |
— | ||
|
11381
|
11381
11381-46010 Retainer, Engine Rear Oil Seal[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
11381-46010 |
from US $29.01 |
||
|
11381A
|
11381A
90311-90006 Seal, Engine Rear Oil[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90311-90006 |
from US $25.37 |
||
|
11385A
|
11385A
90311-40020 Seal, Oil(For Camshaft)[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
90311-40020 |
from US $4.84 |
||
|
12281
|
12281
12281-46050 Hanger, Engine, No.1[09.1999 - 08.2001] 1JZGE,2JZGE..JZS171,173,179 |
12281-46050 |
US $26.38 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.70 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9010510345
|
9010510345
90105-10345 New Genuine Part |
90105-10345 |
US $3.58 |
||
|
9011006009
|
9011006009
90110-06009 Bolt |
90110-06009 |
from US $0.65 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.81 |
||
|
9090480006
|
9090480006
90904-80006 GROMMET |
90904-80006 |
from US $10.74 |
