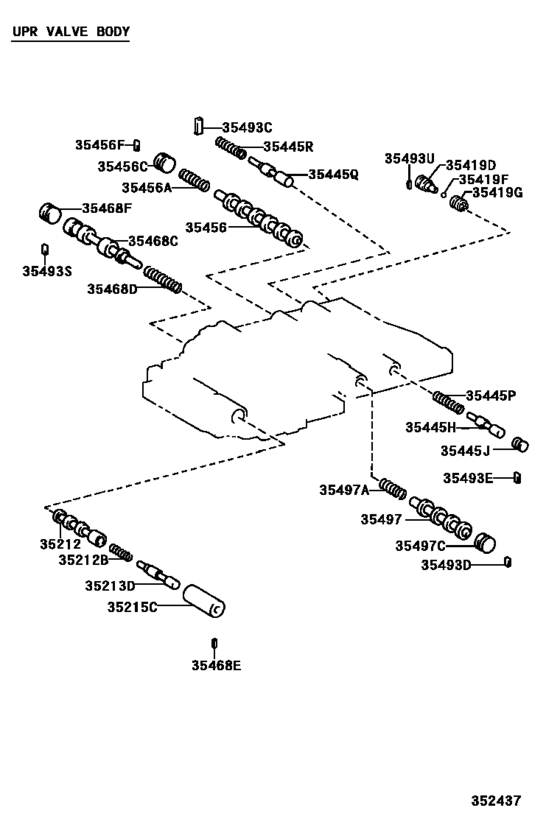

Valve Body & Oil Strainer (Atm) ([09.1999 - 08.2001] A340H (9909-0108)JZS173) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35212
|
35212
35212-24010 Valve, Lock Up Relay[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
35212-24010 |
US $9.03 |
||
|
35212B
|
35212B
90501-06057 Spring, Compression (For Lock Up Relay Valve)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90501-06057 |
US $0.96 |
||
|
35213D
|
35213D
35213-24010 Valve, Lock Up Relay Control[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
35213-24010 |
US $11.36 |
||
|
35215C
|
35215C
35215-24010 Sleeve, Lock Up Relay Valve, No.1[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
35215-24010 |
US $21.84 |
||
|
35419D
|
35419D
35419-50020 Valve, Check, No.1[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35419-50020 |
US $10.83 |
||
|
35419F
|
35419F
90360-06004 Ball, Detent(For Gear Shift Head No.4)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35419F
|
35419F
90080-36191
Ball, Check Valve
[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90080-36191 |
— | ||
|
35419G
|
35419G
35419-50030 Valve, Check, No.2[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35419-50030 |
US $10.83 |
||
|
35445H
|
35445H
35445-50010 Valve, Low Modulator[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35445-50010 |
US $7.86 |
||
|
35445J
|
35445J
90339-04002 Plug(For Low-High Shift Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90339-04002 |
US $4.02 |
||
|
35445P
|
35445P
90501-10081 Spring, Compression (For Low Modulator Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-10081 |
US $2.04 |
||
|
35445Q
|
35445Q
35445-50010 Valve, Low Modulator[09.1999 - 08.2001] GS171,JZS171,173,179,UZS173..4FC..(HTWC,TWC) |
35445-50010 |
US $7.86 |
||
|
35445R
|
35445R
90501-08066 Spring, Compression (For Low Coast Modulator Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-08066 |
US $1.02 |
||
|
35456
|
35456
35456-30060
Valve, 2-3 Shift
[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35456-30060 |
— | ||
|
35456A
|
35456A
90501-09053 Spring, Compression (For 2-3 Shift Valve)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90501-09053 |
US $2.62 |
||
|
35456C
|
35456C
90339-05014 Plug, Low-High Signal Valve[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90339-05014 |
US $1.46 |
||
|
35456F
|
35456F
35493-22020 Seat, Plug (For Lock Up Relay Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-22020 |
US $2.48 |
||
|
35468C
|
35468C
35468-24010 Valve, Secondary Regulator[09.1999 - 08.2001] GS171,JZS171,173..4FC |
35468-24010 |
US $17.82 |
||
|
35468D
|
35468D
90501-12170 Spring, Compression (For Secondary Regulator Valve)[09.1999 - 08.2001] GS171,JZS171,173..4FC |
90501-12170 |
US $1.05 |
||
|
35468E
|
35468E
35493-22020 Seat, Plug (For Lock Up Relay Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-22020 |
US $2.48 |
||
|
35468F
|
35468F
90339-05020 Plug (For Reverse Control Valve)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90339-05020 |
US $1.46 |
||
|
35493C
|
35493C
35493-24010 Seat, Shift Valve Plug(For Low Modulator Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-24010 |
US $3.06 |
||
|
35493D
|
35493D
35493-30090 Seat, Shift Valve Plug, No.3[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-30090 |
US $2.91 |
||
|
35493E
|
35493E
35493-30090 Seat, Shift Valve Plug, No.3[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-30090 |
US $2.91 |
||
|
35493S
|
35493S
35493-30030 Seat(For Center Differential Clutch Control Valve Plug)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35493-30030 |
US $1.60 |
||
|
35493U
|
35493U
35493-30030 Seat(For Center Differential Clutch Control Valve Plug)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-30030 |
US $1.60 |
||
|
35497
|
35497
35497-30040 Valve, 3-4 Shift[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35497-30040 |
US $13.98 |
||
|
35497A
|
35497A
90501-09053 Spring, Compression (For 2-3 Shift Valve)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90501-09053 |
US $2.62 |
||
|
35497C
|
35497C
90339-05014 Plug, Low-High Signal Valve[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90339-05014 |
US $1.46 |
||
