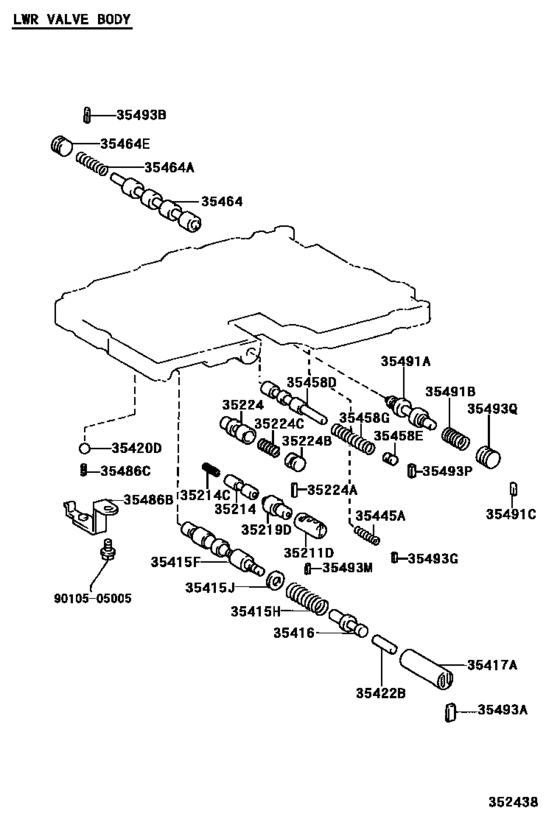

Valve Body & Oil Strainer (Atm) ([09.1999 - 08.2001] A340H (9909-0108)JZS173) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211D
|
35211D
35211-50010 Sleeve, Lock Up Control Valve[09.1999 - 08.2001] JZS17#,UZS17# |
35211-50010 |
US $6.12 |
||
|
35214
|
35214
35214-50010 Valve, Lock Up Control[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35214-50010 |
US $11.88 |
||
|
35214C
|
35214C
90501-07111 Spring, Compression (For Lock Up Control Valve)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90501-07111 |
US $0.61 |
||
|
35219D
|
35219D
35219-50010 Plunger, Lock Up Control Valve[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35219-50010 |
US $9.17 |
||
|
35224
|
35224
35224-30010
Valve, Reverse Control
[09.1999 - 08.2001] GS171,JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
35224-30010 |
— | ||
|
35224A
|
35224A
90282-03010 Key, Straight (For Lock Up Signal Valve)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90282-03010 |
US $0.87 |
||
|
35224B
|
35224B
90339-05020 Plug (For Reverse Control Valve)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90339-05020 |
US $1.46 |
||
|
35224C
|
35224C
90501-06056 Spring, Compression (For Reverse Control Valve)[09.1999 - 08.2001] GS171,JZS171,173,179,UZS173..4FC |
90501-06056 |
US $0.96 |
||
|
35415F
|
35415F
35415-30050 Valve, Primary Regulator[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35415-30050 |
US $18.17 |
||
|
35415H
|
35415H
90501-14153 Spring, Compression (For Primary Regulator Valve)[09.1999 - 08.2001] JZS171,173..4FC |
90501-14153 |
US $0.79 |
||
|
35415J
|
35415J
90201-08067 Washer (For Primary Regulator Valve)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90201-08067 |
US $1.02 |
||
|
35416
|
35416
35416-24020 Plunger, Primary Regulator Valve, No.1[09.1999 - 08.2001] JZS171,173..4FC |
35416-24020 |
US $11.21 |
||
|
35417A
|
35417A
35417-24020 Sleeve, Primary Regulator Valve[09.1999 - 08.2001] JZS171,173..4FC |
35417-24020 |
US $18.64 |
||
|
35420D
|
35420D
90360-08003 Ball (For Lower Valve Body)[09.1999 - 08.2001] JZS17#,UZS17#..D4,HTWC,TWC 外径＝８．００，スチール |
90360-08003 |
US $2.04 |
||
|
35422B
|
35422B
35422-50011 Plunger, Primary Regulator Valve, No.2[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35422-50011 |
US $3.20 |
||
|
35445A
|
35445A
90501-12158 Spring, Compression (For Low Modulator Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-12158 |
US $1.02 |
||
|
35458D
|
35458D
35458-24010 Valve, Cut Back[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35458-24010 |
US $10.48 |
||
|
35458E
|
35458E
90339-04056 Plug (For Cut Back Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90339-04056 |
US $2.91 |
||
|
35458G
|
35458G
90501-07113 Spring, Compression (For Cut Back Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-07113 |
US $1.75 |
||
|
35464
|
35464
35464-12030 Valve, 1-2 Shift[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35464-12030 |
US $19.57 |
||
|
35464A
|
35464A
90501-09053 Spring, Compression (For 2-3 Shift Valve)[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90501-09053 |
US $2.62 |
||
|
35464E
|
35464E
90339-05014 Plug, Low-High Signal Valve[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
90339-05014 |
US $1.46 |
||
|
35486B
|
35486B
35486-30020 Seat, Pressure Relief Valve Spring[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35486-30020 |
US $8.44 |
||
|
35486C
|
35486C
90501-12142 Spring (For Lower Valve Body)[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
90501-12142 |
US $0.87 |
||
|
35491A
|
35491A
35491-60050 Valve, Accumulator Control, No.1[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35491-60050 |
US $17.76 |
||
|
35491B
|
35491B
90501-08197 Spring, Compression (For Accumulator Control Valve No.1)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-08197 |
US $1.02 |
||
|
35491C
|
35491C
90282-03016 Key, Straight (For Lock Up Relay Valve Plug)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90282-03016 |
US $2.62 |
||
|
35493A
|
35493A
35493-50010 Seat, Primary Regulator Valve Plug[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
35493-50010 |
US $2.18 |
||
|
35493B
|
35493B
35493-30090 Seat, Shift Valve Plug, No.3[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-30090 |
US $2.91 |
||
|
35493G
|
35493G
35493-24010 Seat, Shift Valve Plug(For Low Modulator Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-24010 |
US $3.06 |
||
|
35493M
|
35493M
35493-30080 Seat, 1-2 Shift Valve Plug[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35493-30080 |
US $2.04 |
||
|
35493P
|
35493P
35493-30100 Key, Straight (For Solenoid Relay Valve)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35493-30100 |
US $2.62 |
||
|
35493Q
|
35493Q
90339-05028 Plug (For Accumulator Control Valve No.1)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90339-05028 |
US $2.04 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
