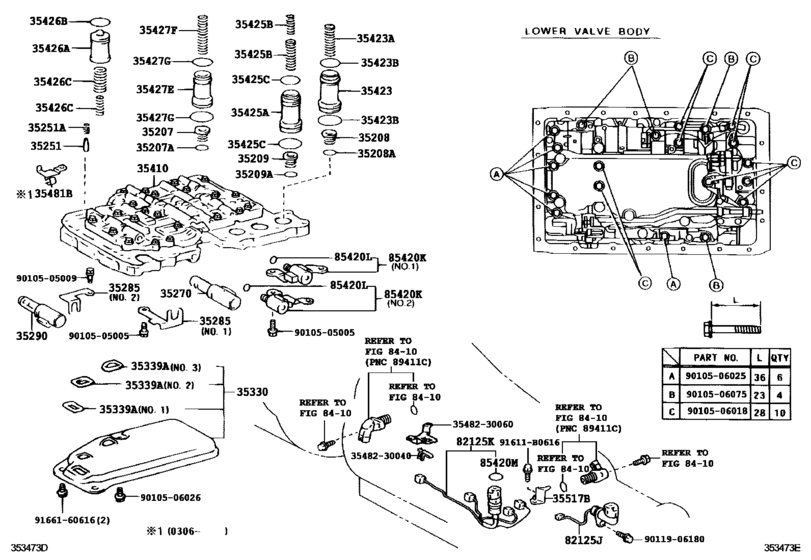

Valve Body & Oil Strainer (Atm) ([08.2001 - ] A340H (0108- )JZS173) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- JZS173
- grade
- ATH
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1999
- To
- 06.2007
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35207
|
35207
35207-22010 Spring Sub-Assy, B-0 Accumulator[09.1999 - 08.2001] JZS171,173,175,177..D4,TWC |
35207-22010 |
US $2.45 |
||
|
35207A
|
35207A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35208
|
35208
35208-30010 Spring Sub-Assy, B-2 Accumulator[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35208-30010 |
US $2.62 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-24010 Spring Sub-Assy, C-2 Accumulator[09.1999 - 08.2001] JZS171,UZS171,175..5FC 下側; JZS175,177;JZS171,173..4FC..TWC |
35209-24010 |
US $2.27 |
||
|
35209A
|
35209A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[09.1999 - 08.2001] JZS17#,UZS17# |
90521-22004 |
from US $1.24 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[09.1999 - 08.2001] JZS17#,UZS17# |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[09.1999 - 08.2001] JZS17#,UZS17# |
90501-03005 |
from US $0.79 |
||
|
35270
|
35270
35270-14010 Solenoid Assy, Shift Control[09.1999 - 08.2001] JZS171,173,179,UZS173..4FC |
35270-14010 |
US $126.28 |
||
|
35285
|
35285
35285-24010 Plate, Solenoid Lock[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．１ |
35285-24010 |
US $3.67 |
||
|
35285
|
35285
35285-24020 Plate, Solenoid Lock[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．２ |
35285-24020 |
US $3.67 |
||
|
35290
|
35290
35290-60020 Solenoid Assy, Line Pressure Control[09.1999 - 08.2001] JZS171,173,179..4FC |
35290-60020 |
US $171.20 |
||
|
35330
|
35330
35330-22020 Strainer Assy, Valve Body Oil[09.1999 - 08.2001] JZS173 |
35330-22020 |
from US $53.33 |
||
|
35339A
|
35339A
35339-30080 Gasket, Oil Strainer[09.1999 - 08.2001] JZS173 ＮＯ．１ |
35339-30080 |
from US $3.44 |
||
|
35339A
|
35339A
35339-30090 Gasket, Oil Strainer, No.1[09.1999 - 08.2001] JZS173 ＮＯ．２ |
35339-30090 |
US $3.20 |
||
|
35339A
|
35339A
35339-30100 Gasket, Oil Strainer, No.1[09.1999 - 08.2001] JZS173 ＮＯ．３ |
35339-30100 |
from US $3.20 |
||
|
35410
|
35410
35410-3A050 Body Assy, Transmission Valve[09.1999 - 08.2001] JZS173 |
35410-3A050 |
US $1,557.92 |
||
|
35410
|
35410
35410-3A120 Body Assy, Transmission Valve[08.2001 -] JZS173 |
35410-3A120 |
US $1,557.92 |
||
|
35423
|
35423
35423-30030 Piston, B-2 Accumulator[09.1999 - 08.2001] JZS17#,UZS17# |
35423-30030 |
US $17.65 |
||
|
35423A
|
35423A
90501-24015 Spring, Compression (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC |
90501-24015 |
US $2.33 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[09.1999 - 08.2001] GS171,JZS17#,UZS17# 上側 |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 下側 |
90301-31010 |
US $2.87 |
||
|
35425A
|
35425A
35425-30020 Piston, C-2 Accumulator[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35425-30020 |
US $13.28 |
||
|
35425B
|
35425B
90501-22016 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC 外側 |
90501-22016 |
US $2.62 |
||
|
35425B
|
35425B
90501-25027 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 内側 |
90501-25027 |
from US $1.40 |
||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[09.1999 - 08.2001] JZS171,173..4FC..TWC 上側 |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC..TWC 下側 |
90301-31010 |
US $2.87 |
||
|
35426A
|
35426A
35426-40010 Piston, C-0 Accumulator[09.1999 - 08.2001] JZS171,173..4FC..TWC |
35426-40010 |
US $13.28 |
||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
90301-24010 |
US $2.06 |
||
|
35426C
|
35426C
90501-22008 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 内側 |
90501-22008 |
US $1.22 |
||
|
35426C
|
35426C
90501-23073 Spring, Compression (For C-0 Accumulator Piston)[09.1999 - 08.2001] JZS171,173..4FC 外側 |
90501-23073 |
US $2.80 |
||
|
35427E
|
35427E
35427-30040 Piston, B-0 Accumulator[09.1999 - 08.2001] JZS171,173,175,177,UZS17# |
35427-30040 |
US $15.55 |
||
|
35427F
|
35427F
90501-23095 Spring, Compression (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS173 |
90501-23095 |
US $1.05 |
||
|
35427G
|
35427G
90301-20008 Ring, O (For C-2 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 上側 |
90301-20008 |
from US $1.79 |
||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[09.1999 - 08.2001] JZS17#,UZS17# 下側 |
90301-26011 |
US $1.79 |
||
|
35481B
|
35481B
35481-24010 Clamp, Valve Body Wire Harness[06.2003 -] JZS171,173..4FC..(D4,TWC) |
35481-24010 |
US $2.97 |
||
|
35517B
|
35517B
35517-30010 Plate, Transmission Wire Lock[09.1999 - 08.2001] JZS173 |
35517-30010 |
US $4.08 |
||
|
82125J
|
82125J
82125-30440 Wire, Transmission[09.1999 - 08.2001] JZS173,179,UZS173 |
82125-30440 |
US $7.57 |
||
|
82125K
|
82125K
82125-22260 Wire, Transmission[09.1999 - 08.2001] JZS173 |
82125-22260 |
US $35.38 |
||
|
85420K
|
85420K
35250-30050 Solenoid Assy, Transmission[08.2001 -] JZS171,173..4FC..(D4,TWC) ＡＩＳＩＮ ＳＥＩＫＩ，ＮＯ．１ |
35250-30050 |
from US $72.60 |
||
|
85420K
|
85420K
85420-22150 Solenoid Assy, Transmission[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．１ |
85420-22150 |
US $80.08 |
||
| replacement | |||||
|
85420K
|
85420K
35250-30050 Solenoid Assy, Transmission[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．１ |
35250-30050 |
from US $72.60 |
||
|
85420K
|
85420K
85420-22170 Solenoid Assy, Transmission[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．２ |
85420-22170 |
US $80.08 |
||
| replacement | |||||
|
85420K
|
85420K
35250-30070 Solenoid Assy, Transmission[09.1999 - 08.2001] JZS171,173..4FC..TWC ＮＯ．２ |
35250-30070 |
from US $72.60 |
||
|
85420L
|
85420L
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.2001 - 06.2007] JZS171,173,177,UZS171,175..A,ATH,C NO.1 |
90301-06004 |
from US $2.15 |
||
|
85420M
|
85420M
96721-24018 Ring, O[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
96721-24018 |
from US $3.71 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
3548230040
|
3548230040
35482-30040 Valve, Governor |
35482-30040 |
US $18.05 |
||
|
3548230060
|
3548230060
35482-30060 Valve, Governor |
35482-30060 |
US $18.05 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505009
|
9010505009
90105-05009 New Genuine Part |
90105-05009 |
US $1.02 |
||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9010506025
|
9010506025
90105-06025 New Genuine Part |
90105-06025 |
US $1.75 |
||
| replacement | |||||
|
9010506025
|
9010506025
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
9010506026
|
9010506026
90105-06026 Bolt (For Transaxle Case Upper Cover) |
90105-06026 |
US $1.60 |
||
| replacement | |||||
|
9010506026
|
9010506026
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010506075
|
9010506075
90105-06075 New Genuine Part |
90105-06075 |
US $1.60 |
||
| replacement | |||||
|
9010506075
|
9010506075
91511-C0622 Strainer Bolt |
91511-C0622 |
US $1.08 |
||
|
9011906180
|
9011906180
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
