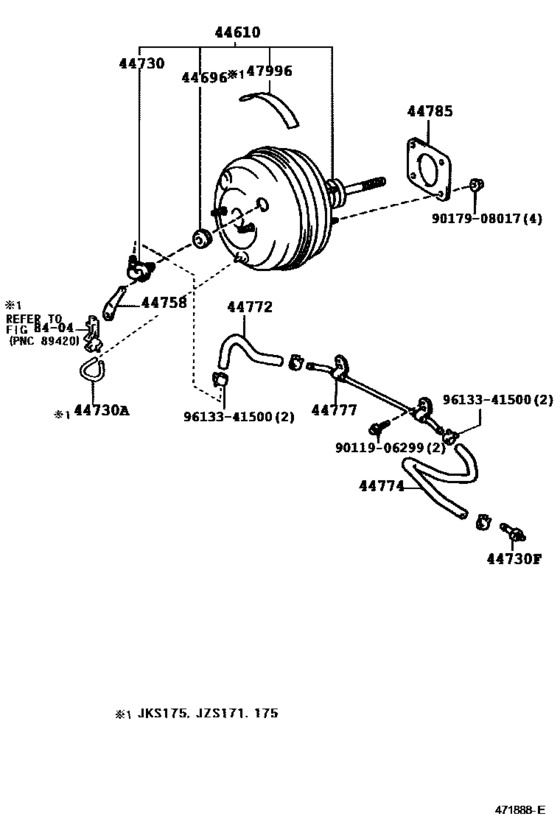

Brake Booster & Vacuum Tube ([09.1999 - ] (9909- )JKS175,JZS171,173,175..D4,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-3A190 Booster Assy, Brake[09.1999 - 08.2001] JZS175 |
44610-3A190 |
US $586.77 |
||
|
44610
|
44610
44610-3A250 Booster Assy, Brake[08.2001 -] JKS175,JZS171,175..D4 ｱﾘ(VSC) |
44610-3A250 |
US $933.30 |
||
|
44696
|
44696
90480-24015 Grommet, Check Valve[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90480-24015 |
from US $2.28 |
||
|
44730
|
44730
44730-40040 Valve Assy, Vacuum Check(For Brake)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
44730-40040 |
US $29.27 |
||
|
44730A
|
44730A
90999-92002
Air Hose (300 mm)
[09.1999 - 08.2001] JZS175 |
90999-92002 |
— | ||
|
44730F
|
44730F
90404-51319 Union, No.1[09.1999 - 08.2001] GS171,JZS171,173,175..D4,HTWC,TWC |
90404-51319 |
from US $3.94 |
||
|
44758
|
44758
44758-40020 Bracket, Vacuum Check Valve[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
44758-40020 |
US $2.48 |
||
|
44772
|
44772
44772-30200 Hose, Check Valve To Connector Tube[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
44772-30200 |
US $12.67 |
||
|
44774
|
44774
44774-30110 Hose, Union To Connector Tube[09.1999 - 08.2001] JZS175 |
44774-30110 |
US $16.60 |
||
|
44777
|
44777
44770-30020 Connector, Vacuum Hose, No.1[09.1999 - 08.2001] JZS171,173,175,179 |
44770-30020 |
US $15.29 |
||
|
44785
|
44785
44785-30030 Gasket, Brake Booster[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
44785-30030 |
US $6.45 |
||
|
47996
|
47996
47996-50050 Label, Brake Bleed Notice[09.1999 - 08.2001] JZS171,175..ATH,ATHG,ATHV,ROY,ROYEX,ROYG |
47996-50050 |
US $2.27 |
||
|
9011906299
|
9011906299
90119-06299 New Genuine Part |
90119-06299 |
US $1.31 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
