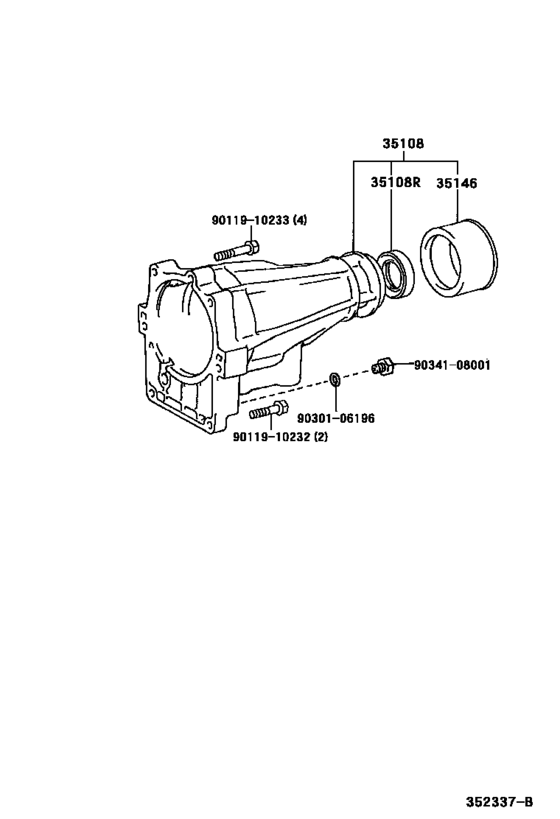

Extension Housing (Atm) ([09.1999 - ] A650E (9909- )JKS175,JZS171,175..5FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35108
|
35108
35180-30040 Housing Sub-Assy, Extension (Atm)[09.1999 - 08.2001] JZS171,175..5FC |
35180-30040 |
US $426.61 |
||
|
35108R
|
35108R
90311-40001 Seal, Oil(For Extension Housing)[09.1999 - 08.2001] JZS171,175 |
90311-40001 |
from US $7.17 |
||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[09.1999 - 08.2001] GS171,JZS171,175 |
33146-30020 |
from US $17.74 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
|
9030106196
|
9030106196
90301-06196 O Ring, Transaxle Case, No.1 |
90301-06196 |
from US $2.36 |
||
|
9034108001
|
9034108001
90341-08001 Plug, Transaxle Case, No.1 |
90341-08001 |
from US $1.48 |
