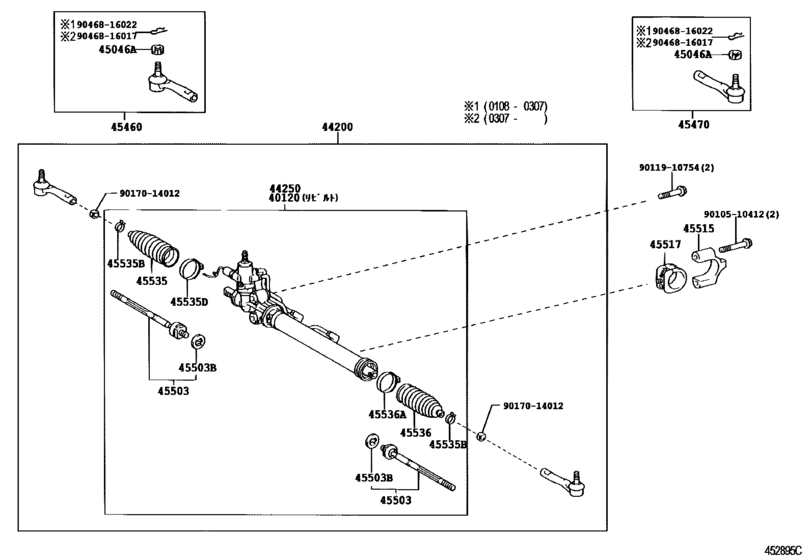

Front Steering Gear & Link ([08.2001 - ] (0108- )GS171,JKS175,JZS171,175) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40120
|
40120
40120-30240 Gear Assy,power Steering,rebuilt[09.1999 - 08.2001] JZS175..ROY,ROYG ＴＯＹＯＤＡ ＫＯＫＩ |
40120-30240 |
US $1,169.17 |
||
|
44200
|
44200
44200-30241
Link Assy, Power Steering
[08.2001 - 12.2003] JKS175,JZS175..ROY,ROYG |
44200-30241 |
— | ||
|
44250
|
44250
44250-30240 Gear Assy, Power Steering(For Rack & Pinion)[09.1999 - 08.2001] JZS175..ROY,ROYG |
44250-30240 |
US $1,674.40 |
||
| replacement | |||||
|
44250
|
44250
44200-30241
Link Assy, Power Steering
[09.1999 - 08.2001] JZS175..ROY,ROYG |
44200-30241 |
— | ||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
90171-12002 |
from US $1.10 |
||
|
45460
|
45460
45460-39575 Rod Assy, Tie, Rh[09.1999 - 08.2001] GS171,JZS171,175 |
45460-39575 |
US $65.18 |
||
|
45470
|
45470
45470-39205 Rod Assy, Tie, Lh[09.1999 - 08.2001] GS171,JZS171,175 |
45470-39205 |
from US $65.18 |
||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[10.2000 - 08.2001] GS171,JZS171,175 |
45503-29785 |
from US $100.15 |
||
|
45503
|
45503
45503-39105
End Sub-Assy, Steering Rack
[09.1999 - 10.2000] GS171,JZS171,175 |
45503-39105 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[09.1999 - 10.2000] GS171,JZS171,175 |
45503-29785 |
from US $100.15 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[09.1999 - 10.2000] GS171,JZS171,175 外径＝３７ |
90214-14002 |
from US $1.24 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[10.2000 - 08.2001] GS171,JZS17#,UZS171,175 外径＝３８ |
90214-14007 |
from US $1.41 |
||
|
45515
|
45515
45515-22120 Bracket, Steering Rack Housing, No.2[09.1999 - 08.2001] GS171,JZS171,175 |
45515-22120 |
US $33.90 |
||
|
45517
|
45517
45517-30020 Grommet, Steering Rack Housing, No.2[09.1999 - 08.2001] GS171,JZS171,175 |
45517-30020 |
US $13.44 |
||
|
45535
|
45535
45535-30010 Boot, Steering Rack, No.1[09.1999 - 08.2001] GS171,JZS17#,UZS17# |
45535-30010 |
from US $18.45 |
||
|
45535B
|
45535B
90467-19012
Clip
[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90467-19019 |
from US $4.09 |
||
|
45535B
|
45535B
90467-19019 Clip[08.2001 -] GS171,JKS175,JZS17#,UZS171,175 |
90467-19019 |
from US $4.09 |
||
|
45535D
|
45535D
90460-49004 Clamp(For Steering Rack Boot No.1)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90460-49004 |
from US $2.58 |
||
|
45536
|
45536
45535-30010 Boot, Steering Rack, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
45535-30010 |
from US $18.45 |
||
|
45536A
|
45536A
90460-49004 Clamp(For Steering Rack Boot No.1)[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
90460-49004 |
from US $2.58 |
||
|
9010510412
|
9010510412
90105-10412 Bolt(For Front Suspension Upper Arm Rh) |
90105-10412 |
US $4.66 |
||
|
9011910754
|
9011910754
90119-10754 New Genuine Part |
90119-10754 |
US $5.56 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.05 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.61 |
||
