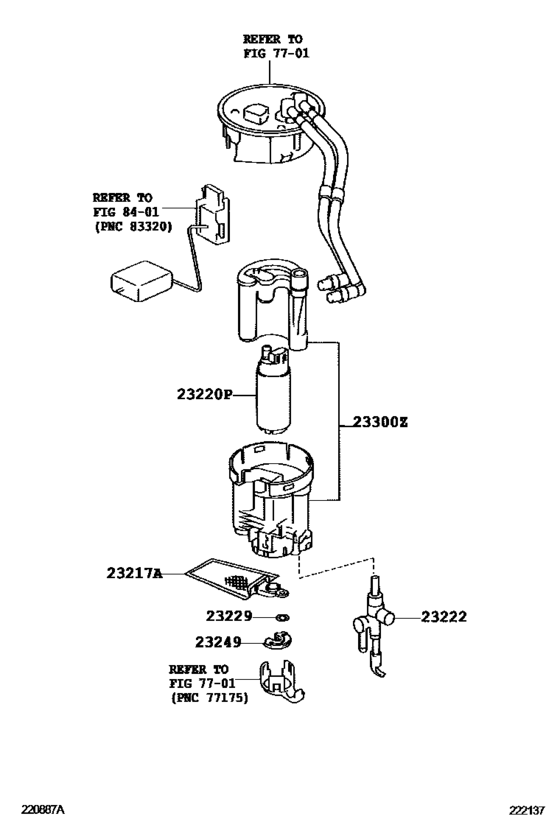

Fuel Injection System ([09.1999 - 10.2000] (9909-0010)1JZGE,2JZFSE..A,ATH,ATHG,C,ROY,ROYEX, ROYG ; (0010- )1JZGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZGTE,2JZ#..JZS171,175,177,179 |
23217-46090 |
US $10.39 |
||
|
23220P
|
23220P
23221-50090 Pump Assy, Fuel[10.2000 - 08.2001] 2JZFSE..JZS175,177 |
23221-50090 |
US $416.42 |
||
| replacement | |||||
|
23220P
|
23220P
23221-50200 Pump Assy, FuelFUEL [10.2000 - 08.2001] 2JZFSE..JZS175,177 |
23221-50200 |
US $580.32 |
||
|
23220P
|
23220P
23221-70360 Pump Assy, Fuel[09.1999 - 10.2000] 1JZGTE,2JZFSE..JZS171,175,177 |
23221-70360 |
US $473.34 |
||
|
23222
|
23222
23222-46040
Tube, Fuel Return Jet
[09.1999 - 10.2000] 1JZGE,2JZFSE..JZS171,173,175 |
23222-46040 |
— | ||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZ#,2JZ#..JZS17# |
23229-16010 |
from US $1.25 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZ#,2JZ#..JZS17# |
23219-03010 |
US $2.55 |
||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZ#,2JZ#..JZS17# |
23249-46180 |
US $16.84 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[04.2002 - 06.2007] 1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
23249-74610 |
from US $9.36 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[10.2000 - 08.2001] 1JZGTE,2JZ#..JZS171,175,177,179 |
23300-21010 |
US $80.30 |
||
|
23300Z
|
23300Z
23300-46120 Filter Assy, Fuel[09.1999 - 10.2000] 1JZGE,2JZFSE..JZS171,173,175,177 |
23300-46120 |
US $77.17 |
||
