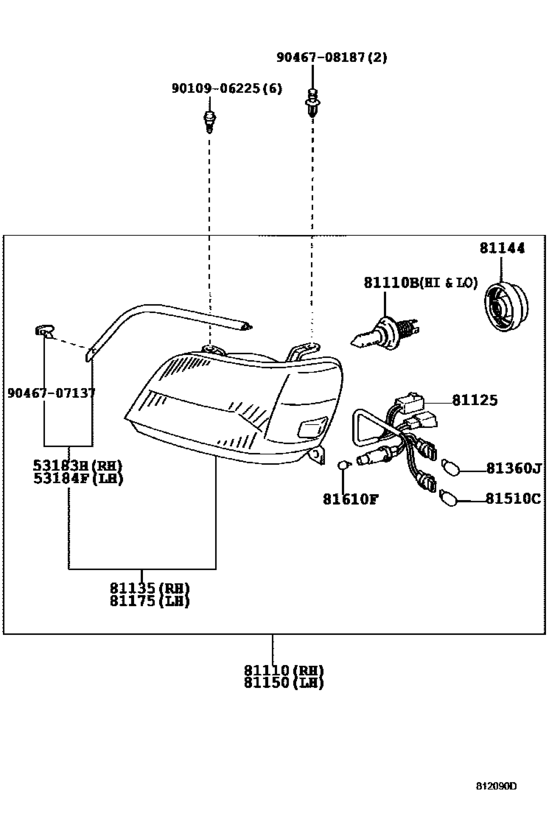

Headlamp ([09.1999 - 08.2001] (9909-0108)ROY,ROYEX,ROYG ; (0108- )GS171,JKS 175,JZS171,173..ROY,ROYEX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-30110 Seal, Headlamp Cover, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
53183-30110 |
US $10.57 |
||
|
53184F
|
53184F
53184-30080 Seal, Headlamp Cover, Lh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
53184-30080 |
US $10.57 |
||
|
81110
|
81110
81110-3A550 Headlamp Assy, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81110-3A550 |
US $601.33 |
||
|
81110
|
81110
81110-3A710 Headlamp Assy, Rh[08.2001 - 12.2003] JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81110-3A710 |
US $2,169.44 |
||
|
81110B
|
81110B
90981-13055
Bulb(For Headlamp, No.1)
[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ６０／５５Ｗ，ハロゲン |
90981-13055 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ６０／５５Ｗ，ハロゲン |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-20001 Bulb(For Headlamp, No.1)[08.2001 -] JZS171,173;GS171,JKS175,JZS175,177,179,UZS17#..A,ATHE,ATHG,C,ROY,ROYG ８５Ｖ ３５Ｗ |
90981-20001 |
from US $196.02 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $33.60 |
||
|
81125
|
81125
81125-3A550 Cord, Headlamp[09.1999 - 11.2000] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81125-3A550 |
US $39.31 |
||
| replacement | |||||
|
81125
|
81125
81125-3A551 Cord, Headlamp[09.1999 - 11.2000] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81125-3A551 |
US $39.02 |
||
|
81125
|
81125
81125-3A551 Cord, Headlamp[11.2000 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81125-3A551 |
US $39.02 |
||
|
81125
|
81125
81125-3A560 Cord, Headlamp[08.2001 - 12.2005] JZS171,173;GS171,JKS175,JZS175,179..ATHE,ATHG,ROY,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81125-3A560 |
US $39.17 |
||
|
81135
|
81135
81130-3A550 Unit Assy, Headlamp, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81130-3A550 |
US $583.44 |
||
|
81135
|
81135
81130-3A710 Unit Assy, Headlamp, Rh[08.2001 - 12.2003] JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81130-3A710 |
US $1,249.44 |
||
|
81144
|
81144
81139-48040 Cover, Headlamp Socket[08.2001 - 06.2007] JZS171,173;GS171,JKS175,JZS175,179..ATHE,ATHG,ROY,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81139-48040 |
from US $18.56 |
||
|
81144
|
81144
90075-65002 Cover, Headlamp Back, No.1[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
90075-65002 |
from US $6.08 |
||
|
81150
|
81150
81150-3A670 Headlamp Assy, Lh[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81150-3A670 |
US $601.33 |
||
|
81150
|
81150
81150-3A830 Headlamp Assy, Lh[08.2001 - 12.2003] JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81150-3A830 |
US $2,169.44 |
||
|
81175
|
81175
81170-3A670 Unit Assy, Headlamp, Lh[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
81170-3A670 |
US $583.44 |
||
|
81175
|
81175
81170-3A830 Unit Assy, Headlamp, Lh[08.2001 - 12.2003] JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
81170-3A830 |
US $1,249.44 |
||
|
81360J
|
81360J
90981-13043 Bulb (12V 21W)[09.1999 - 08.2001] GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.15 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[09.1999 - 08.2001] GS171,JZS171,173,175,179 １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.48 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[09.1999 - 08.2001] JZS177,UZS17# １２Ｖ ５Ｗ; GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[09.1999 - 08.2001] JZS177,UZS17# １２Ｖ ５Ｗ; GS171,JZS171,173,175,179..ROY,ROYEX,ROYG １２Ｖ ５Ｗ |
90080-81053 |
US $0.99 |
||
|
9010906225
|
9010906225
90109-06225 LEXBOLT |
90109-06225 |
US $2.15 |
||
|
9046707137
|
9046707137
90467-07137 CLIP |
90467-07137 |
US $2.87 |
||
|
9046708187
|
9046708187
90467-08187 New Genuine Part |
90467-08187 |
US $2.33 |
||
