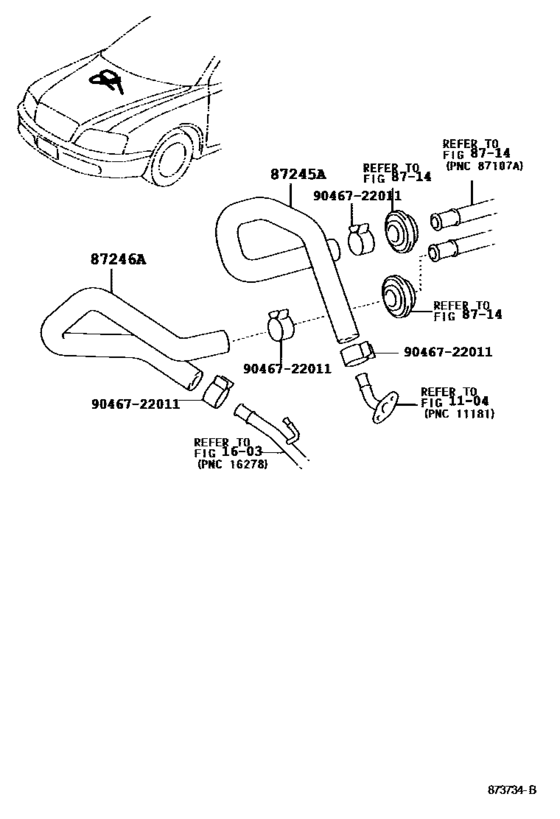

Heating & Air Conditioning - Water Piping ([09.1999 - 08.2001] (9909-0108)JZS175,177 ; (0108- )JZS177) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-3F500
Hose, Heater Water, Inlet A
[09.1999 - 08.2001] JZS175 |
87245-3F500 |
— | ||
|
87245A
|
87245A
87245-3F570
Hose, Heater Water, Inlet A
[09.1999 - 08.2001] JZS175 ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-3F570 |
— | ||
|
87246A
|
87246A
87245-51020
Hose, Heater Water, Outlet A
[09.1999 - 08.2001] JZS171,175..D4,TWC |
87245-51020 |
— | ||
|
87246A
|
87246A
87245-51060 Hose, Heater Water, Outlet A[09.1999 - 08.2001] JZS171,173,175,179..D4,TWC ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51060 |
US $8.44 |
||
|
87246A
|
87246A
87245-51080
Hose, Heater Water, Outlet A
[08.2001 -] JKS175,JZS175 |
87245-51080 |
— | ||
|
87246A
|
87246A
87245-51140
Hose, Heater Water, Outlet A
[08.2001 -] JKS175,JZS171,175..D4 ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51140 |
— | ||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.25 |
