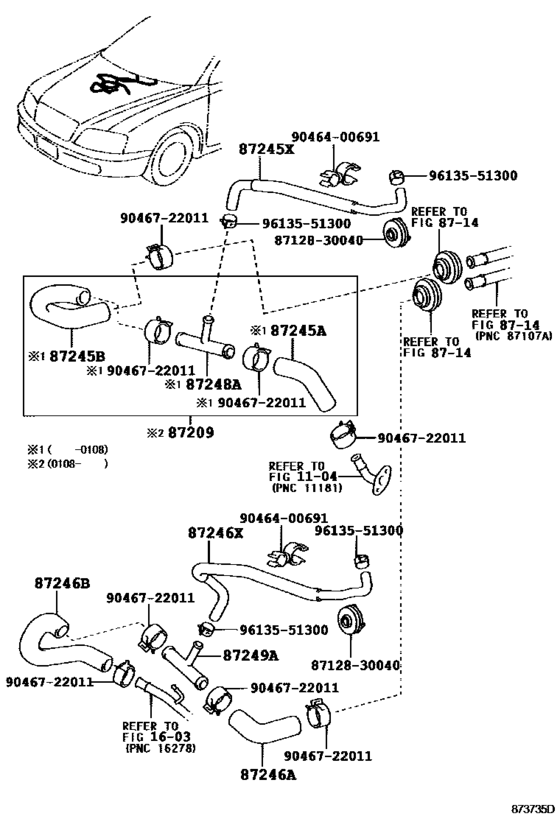

Heating & Air Conditioning - Water Piping ([09.1999 - ] ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) (9909- )JZS175 ; (0108- )JKS175,JZS171..D4) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87209
|
87209
87209-30671 Hose Sub-Assy, Water[08.2001 - 06.2007] JKS175,JZS171,175..D4 ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87209-30671 |
US $39.89 |
||
|
87209
|
87209
87209-30741 Hose Sub-Assy, Water[08.2001 - 06.2007] JKS175,JZS171,175..D4 |
87209-30741 |
US $43.97 |
||
|
87245A
|
87245A
87245-3F500
Hose, Heater Water, Inlet A
[09.1999 - 08.2001] JZS175 |
87245-3F500 |
— | ||
|
87245A
|
87245A
87245-3F570
Hose, Heater Water, Inlet A
[09.1999 - 08.2001] JZS175 ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-3F570 |
— | ||
|
87245B
|
87245B
87245-3F560 Hose, Heater Water, Inlet B[09.1999 - 08.2001] JZS175 |
87245-3F560 |
US $18.05 |
||
|
87245X
|
87245X
87242-30130 Hose, Heater Water[09.1999 - 08.2001] JZS175 |
87242-30130 |
US $12.67 |
||
|
87246A
|
87246A
87245-51020
Hose, Heater Water, Outlet A
[09.1999 - 08.2001] JZS171,175..D4,TWC |
87245-51020 |
— | ||
|
87246A
|
87246A
87245-51060 Hose, Heater Water, Outlet A[09.1999 - 08.2001] JZS171,173,175,179..D4,TWC ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51060 |
US $8.44 |
||
|
87246A
|
87246A
87245-51080
Hose, Heater Water, Outlet A
[08.2001 -] JKS175,JZS175 |
87245-51080 |
— | ||
|
87246A
|
87246A
87245-51140
Hose, Heater Water, Outlet A
[08.2001 -] JKS175,JZS171,175..D4 ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ) |
87245-51140 |
— | ||
|
87246B
|
87246B
87245-51050 Hose, Heater Water, Outlet A[09.1999 - 08.2001] JZS171,175..D4,TWC |
87245-51050 |
US $17.76 |
||
|
87246B
|
87246B
87245-51130 Hose, Heater Water, Outlet A[08.2001 -] JKS175,JZS175 |
87245-51130 |
US $18.64 |
||
|
87246X
|
87246X
87246-30350 Hose, Heater Water[09.1999 - 08.2001] JZS175 |
87246-30350 |
US $16.60 |
||
|
87248A
|
87248A
87248-30400
Pipe Sub-Assy, Water
[09.1999 - 08.2001] GS171,JZS175 |
87248-30400 |
— | ||
|
87249A
|
87249A
87248-30400
Pipe Sub-Assy, Water
[09.1999 - 08.2001] GS171,JZS17# |
87248-30400 |
— | ||
|
8712830040
|
8712830040
87128-30040 Grommet, Heater |
87128-30040 |
US $9.17 |
||
|
9046400691
|
9046400691
90464-00691 New Genuine Part |
90464-00691 |
US $3.06 |
||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.25 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.86 |
