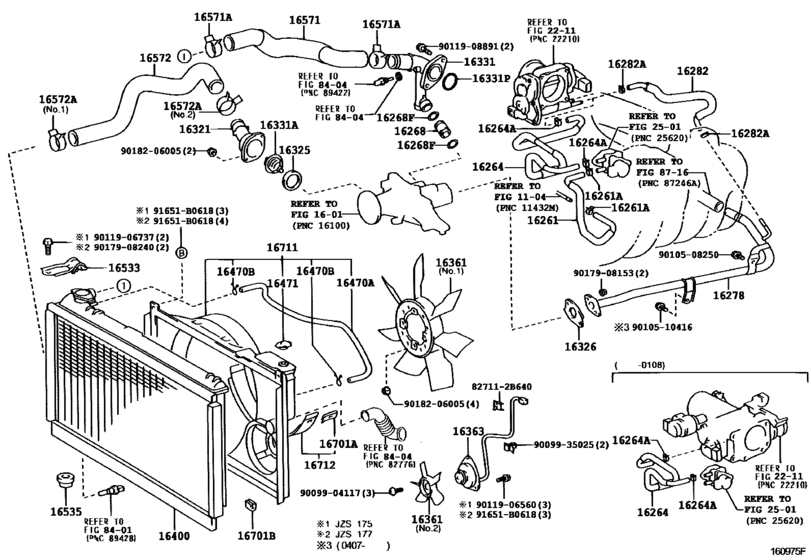

Radiator & Water Outlet ([09.1999 - ] (9909- )2JZFSE..JZS175,177) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-46060 Hose, Water By-Pass[09.1999 - 08.2000] 2JZFSE..JZS175,177 |
16261-46060 |
US $21.84 |
||
| replacement | |||||
|
16261
|
16261
16261-46070 Hose, Water By-Pass[09.1999 - 08.2000] 2JZFSE..JZS175,177 |
16261-46070 |
US $21.84 |
||
|
16261
|
16261
16261-46070 Hose, Water By-Pass[08.2000 - 08.2001] 2JZFSE..JZS175,177 |
16261-46070 |
US $21.84 |
||
|
16261A
|
16261A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90467-13050 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
96135-51300 |
from US $1.86 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[08.2001 -] 1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
96135-51300 |
from US $1.86 |
||
|
16264
|
16264
16264-46050 Hose, Water By-Pass, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
16264-46050 |
US $21.84 |
||
|
16264
|
16264
16264-46071 Hose, Water By-Pass, No.2[08.2001 -] 1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
16264-46071 |
US $29.90 |
||
|
16264A
|
16264A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90467-13050 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
96135-51300 |
from US $1.86 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.2001 -] 1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-46011 Pipe, Water By-Pass, No.1[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
16268-46011 |
US $9.68 |
||
|
16268F
|
16268F
96761-24022 Ring, O(For Water By-Pass Pipe)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
96761-24022 |
from US $2.79 |
||
|
16278
|
16278
16278-46070 Pipe, Water By-Pass, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
16278-46070 |
US $90.27 |
||
| replacement | |||||
|
16278
|
16278
16278-46071 Pipe, Water By-Pass, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
16278-46071 |
US $90.27 |
||
|
16282
|
16282
16282-46020 Hose, Water By-Pass, No.5[09.1999 - 08.2000] 2JZFSE..JZS175,177 |
16282-46020 |
US $17.47 |
||
| replacement | |||||
|
16282
|
16282
16282-46030 Hose, Water By-Pass, No.5[09.1999 - 08.2000] 2JZFSE..JZS175,177 |
16282-46030 |
US $27.22 |
||
|
16282
|
16282
16282-46030 Hose, Water By-Pass, No.5[08.2000 - 08.2001] 2JZFSE..JZS175,177 |
16282-46030 |
US $27.22 |
||
|
16282A
|
16282A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
90467-13050 |
— | ||
| replacement | |||||
|
16282A
|
16282A
96135-51300 Clamp, Hose[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
96135-51300 |
from US $1.86 |
||
|
16282A
|
16282A
96135-51300 Clamp, Hose[08.2001 -] 1JZFSE,2JZFSE..JKS175,JZS171,175,177 |
96135-51300 |
from US $1.86 |
||
|
16321
|
16321
16321-46040 Inlet, Water[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
16321-46040 |
US $56.45 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
16325-62010 |
from US $3.95 |
||
|
16326
|
16326
16325-46010 Gasket, Water Inlet Housing, No.2[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
16325-46010 |
from US $3.33 |
||
|
16331
|
16331
16331-46090 Outlet, Water[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
16331-46090 |
US $58.39 |
||
|
16331A
|
16331A
90916-03126 Thermostat[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＊ＷＡＸ ８８−１００ |
90916-03126 |
US $25.63 |
||
| replacement | |||||
|
16331A
|
16331A
90916-03142 Thermostat[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＊ＷＡＸ ８８−１００ |
90916-03142 |
from US $19.74 |
||
|
16331P
|
16331P
96761-24037 Ring,o(For Water Outlet)[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
96761-24037 |
US $5.02 |
||
|
16361
|
16361
16361-46040 Fan[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＮＯ．１; 1JZGE,2JZGE..JZS171,173,179..ATH,ROY,ROYEX |
16361-46040 |
US $136.12 |
||
|
16361
|
16361
16361-46050 Fan[09.1999 - 08.2001] 2JZFSE..JZS175,177 ＮＯ．２ |
16361-46050 |
US $61.65 |
||
|
16363
|
16363
16363-46100 Motor, Cooling Fan[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
16363-46100 |
US $438.36 |
||
|
16400
|
16400
16400-46630 Radiator Assy[09.1999 - 08.2001] 2JZFSE..JZS175 |
16400-46630 |
from US $658.32 |
||
|
16470A
|
16470A
16565-46030
Hose Or Pipe(For Radiator Reserve Tank)
[09.1999 - 08.2001] 2JZFSE..JZS175 |
16565-46030 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[09.1999 - 08.2001] 1UZFE..UZS17#; 1JZGE,2JZ#..JZS17# |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-46180
Cap Sub-Assy, Reserve Tank
[08.2002 - 06.2007] 1JZFSE,2JZFSE..JZS171,175 |
16405-46180 |
— | ||
|
16471
|
16471
16471-23010 Cap Sub-Assy, Reserve Tank[09.1999 - 08.2001] 1JZGE,2JZ#..JZS171,173,175,179 |
16471-23010 |
US $1.56 |
||
|
16533
|
16533
16505-46080 Support, Radiator, Upper[09.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 |
16505-46080 |
US $19.49 |
||
|
16535
|
16535
90480-40010 Support, Radiator, Lower[09.1999 - 11.1999] 1JZ#,2JZ#..JZS171,173,175,179 |
90480-40010 |
US $14.52 |
||
|
16535
|
16535
90480-40022 Support, Radiator, Lower[12.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 |
90480-40022 |
from US $10.39 |
||
|
16571
|
16571
16571-46250 Hose, Radiator, Inlet[09.1999 - 08.2001] 2JZFSE..JZS175 |
16571-46250 |
US $30.91 |
||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[08.2001 - 06.2007] 1JZFSE,1JZGE,2JZ#..JKS175,JZS17# |
90467-37005 |
from US $3.88 |
||
|
16571A
|
16571A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90467-37006 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS17# |
90467-37005 |
from US $3.88 |
||
|
16572
|
16572
16572-46240 Hose, Radiator, Outlet[09.1999 - 08.2001] 1JZGE,2JZFSE..JZS171,175 |
16572-46240 |
US $40.32 |
||
|
16572A
|
16572A
90466-41003 Clip, Radiator Hose, No.1[11.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 ＮＯ．２ |
90466-41003 |
from US $8.27 |
||
|
16572A
|
16572A
90466-41007 Clamp Or Clip, Hose(For Radiator Inlet)[08.2003 - 10.2004] 1JZ#,2JZ#..JKS175,JZS171,173,175,179 ＮＯ．２ |
90466-41007 |
from US $5.38 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[08.2001 - 06.2007] 1JZFSE,1JZGE,2JZ#..JKS175,JZS171,173,175,179 ＮＯ．１ |
90467-37005 |
from US $3.88 |
||
|
16572A
|
16572A
90467-37006
Clamp Or Clip, Hose(For Radiator Inlet)
[09.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 ＮＯ．１ |
90467-37006 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[09.1999 - 08.2001] 1JZ#,2JZ#..JZS171,173,175,179 ＮＯ．１ |
90467-37005 |
from US $3.88 |
||
|
16572A
|
16572A
90467-41007
Clamp Or Clip, Hose(For Radiator Inlet)
[09.1999 - 11.1999] 1JZ#,2JZ#..JZS171,173,175,179 ＮＯ．２ |
90467-41007 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[09.1999 - 11.1999] 1JZ#,2JZ#..JZS171,173,175,179 ＮＯ．２ |
90466-41008 |
from US $4.07 |
||
|
16701A
|
16701A
90468-05109 Clip(For Fan Shroud)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90468-05109 |
US $4.30 |
||
|
16701B
|
16701B
90541-11002 Cushion, Fan Shroud[09.1999 - 08.2001] 1JZGE,2JZ#..JZS171,173,175,179 |
90541-11002 |
US $4.12 |
||
|
16711
|
16711
16711-46300 Shroud, Fan[09.1999 - 08.2001] 2JZFSE..JZS175 |
16711-46300 |
US $180.80 |
||
|
16712
|
16712
16702-46010 Shroud, Fan, No.2[09.1999 - 08.2001] 1JZGE,2JZ#..JZS171,173,175,179 |
16702-46010 |
from US $37.16 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.79 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.97 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9009935025
|
9009935025
90099-35025
New Genuine Part
|
90099-35025 |
— | ||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.51 |
||
|
9011906560
|
9011906560
90119-06560 BOLT |
90119-06560 |
US $2.15 |
||
|
9011906737
|
9011906737
90119-06737 BOLT WWASHER |
90119-06737 |
US $2.15 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017908240
|
9017908240
90179-08240 New Genuine Part |
90179-08240 |
US $2.33 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
