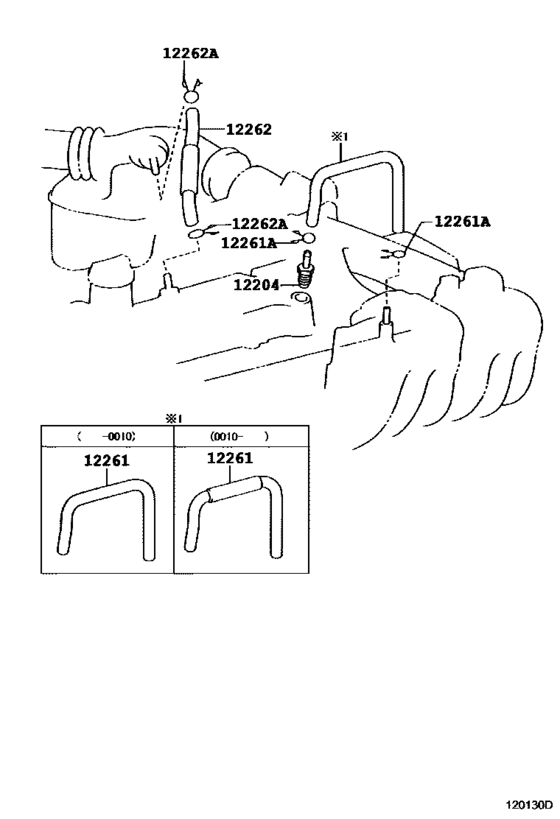

Ventilation Hose ([09.1999 - ] (9909- )1JZFSE,2JZFSE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ROYG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-46040 Valve Sub-Assy, Ventilation[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
12204-46040 |
US $21.84 |
||
|
12261
|
12261
12261-46060 Hose, Ventilation[09.1999 - 10.2000] 2JZFSE..JZS175,177 |
12261-46060 |
US $14.69 |
||
|
12261
|
12261
12261-46070 Hose, Ventilation[10.2000 - 08.2001] 2JZFSE..JZS175,177 |
12261-46070 |
US $16.84 |
||
|
12261A
|
12261A
90467-14001 Clip Or Clamp(For Ventilation Hose)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90467-14001 |
from US $0.70 |
||
| replacement | |||||
|
12261A
|
12261A
90466-T0026
Clip Or Clamp(For Ventilation Hose)
[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90466-T0026 |
— | ||
|
12262
|
12262
12262-46100 Hose, Ventilation, No.2[09.1999 - 08.2001] 2JZFSE..JZS175,177 |
12262-46100 |
US $22.68 |
||
|
12262
|
12262
12262-46101 Hose, Ventilation, No.2[11.2001 - 12.2003] 1JZFSE,2JZFSE..JKS175,JZS171,175..SED |
12262-46101 |
US $17.30 |
||
|
12262A
|
12262A
90467-18003 Clip Or Clamp(For Ventilation Hose)[09.1999 - 08.2001] 1JZGE,2JZ#..JZS17# |
90467-18003 |
from US $2.15 |
||
