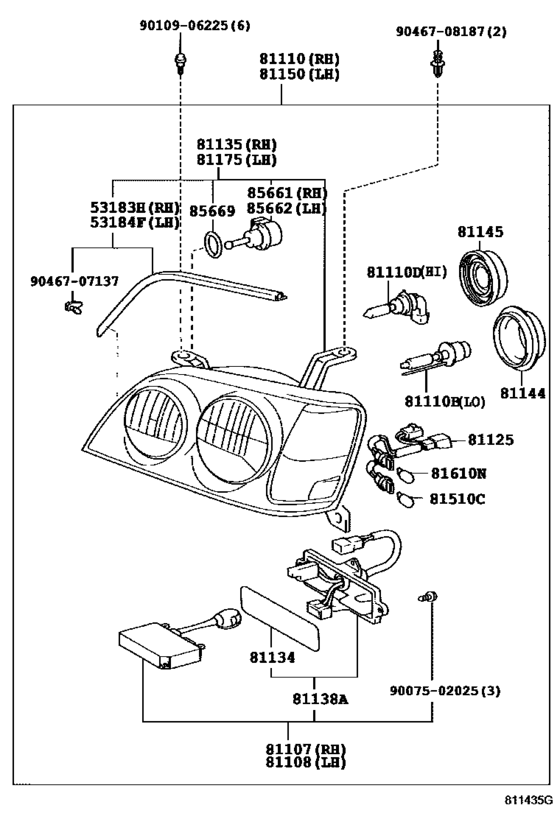

Headlamp ([09.1999 - ] (9909- )ATH,ATHE,ATHG,ATHV) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- Japan
- Frame
- JZS175
- grade
- ATHG
- body
- SED
- ENGINE
- 2JZFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 5FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-30110 Seal, Headlamp Cover, Rh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
53183-30110 |
US $10.57 |
||
|
53184F
|
53184F
53184-30080 Seal, Headlamp Cover, Lh[09.1999 - 08.2001] GS171,JZS171,173,175,179 |
53184-30080 |
US $10.57 |
||
|
81107
|
81107
81107-3A560 Computer Sub-Assy, Headlamp Light Control, Rh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81107-3A560 |
US $708.64 |
||
|
81108
|
81108
81107-3A560 Computer Sub-Assy, Headlamp Light Control, Rh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81107-3A560 |
US $708.64 |
||
|
81110
|
81110
81110-3A560 Headlamp Assy, Rh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81110-3A560 |
US $2,052.96 |
||
|
81110B
|
81110B
90981-20001 Bulb(For Headlamp, No.1)[09.1999 - 08.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C ８５Ｖ ３５Ｗ |
90981-20001 |
from US $196.02 |
||
|
81110D
|
81110D
90981-13063 Bulb(For Headlamp, No.2)[09.1999 - 08.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C １２Ｖ ５５Ｗ，ハロゲン |
90981-13063 |
from US $15.56 |
||
|
81125
|
81125
81125-3A560 Cord, Headlamp[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81125-3A560 |
US $39.17 |
||
|
81134
|
81134
81132-3A560 Gasket, Headlamp[09.1999 - 06.2007] JZS171,173,175..ATH,ATHG,ATHV |
81132-3A560 |
US $14.77 |
||
|
81135
|
81135
81130-3A560 Unit Assy, Headlamp, Rh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81130-3A560 |
US $1,147.60 |
||
|
81138A
|
81138A
81165-3A680 Socket & Wire, Headlamp[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81165-3A680 |
US $39.17 |
||
|
81144
|
81144
81139-48040 Cover, Headlamp Socket[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81139-48040 |
from US $18.56 |
||
|
81145
|
81145
90075-65016 Cover, Headlamp, No.2[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
90075-65016 |
US $12.66 |
||
|
81150
|
81150
81150-3A680 Headlamp Assy, Lh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81150-3A680 |
US $2,052.96 |
||
|
81175
|
81175
81170-3A680 Unit Assy, Headlamp, Lh[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV |
81170-3A680 |
US $1,147.60 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[09.1999 - 08.2001] GS171,JZS171,173,175,179 １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.48 |
||
|
81610N
|
81610N
90981-11048
Bulb(For Rear Combination Lamp)
[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV １２Ｖ ２１／５Ｗ |
90981-11048 |
— | ||
| replacement | |||||
|
81610N
|
81610N
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[09.1999 - 08.2001] JZS171,173,175..ATH,ATHE,ATHG,ATHV １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.46 |
||
|
81610N
|
81610N
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.2001 - 12.2003] GS171,JZS171,175..WG..(D4,HTWC) １２Ｖ ２１／５Ｗ; JZS171..WG..TWT;JKS175,JZS171,173,175,179..SED １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.46 |
||
|
85661
|
85661
85661-33010 Motor, Headlamp Leveling, Rh[09.1999 - 06.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
85661-33010 |
from US $224.22 |
||
|
85661
|
85661
85661-50040 Motor, Headlamp Leveling, Rh[06.2001 - 08.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
85661-50040 |
from US $206.75 |
||
|
85662
|
85662
85661-33010 Motor, Headlamp Leveling, Rh[09.1999 - 06.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
85661-33010 |
from US $224.22 |
||
|
85662
|
85662
85661-50040 Motor, Headlamp Leveling, Rh[06.2001 - 08.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
85661-50040 |
from US $206.75 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[09.1999 - 08.2001] JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
90075-99120 |
from US $2.32 |
||
|
9007502025
|
9007502025
90075-02025 Screw, Headlamp |
90075-02025 |
from US $0.80 |
||
|
9010906225
|
9010906225
90109-06225 LEXBOLT |
90109-06225 |
US $2.15 |
||
|
9046707137
|
9046707137
90467-07137 CLIP |
90467-07137 |
US $2.87 |
||
|
9046708187
|
9046708187
90467-08187 New Genuine Part |
90467-08187 |
US $2.33 |
||
