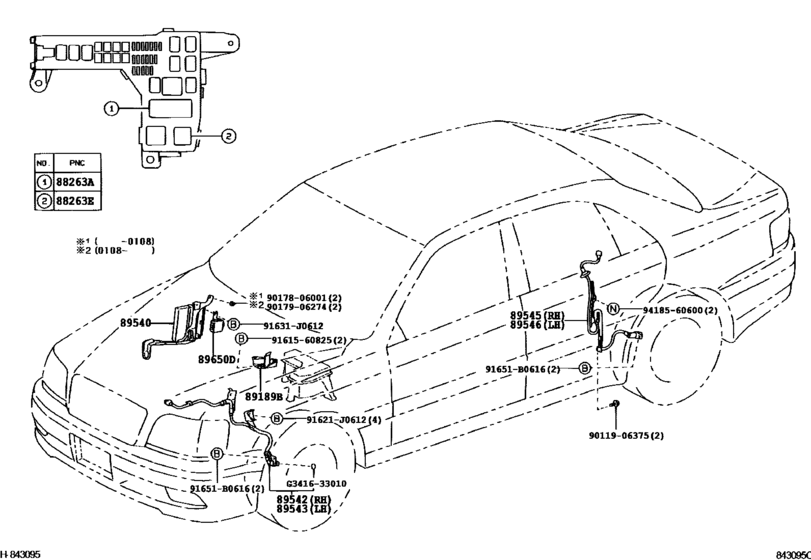

Abs & Vsc ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88263A
|
88263A
88263-30150 Relay, Skid Control[09.1999 - 08.2001] JZS175 |
88263-30150 |
US $160.74 |
||
|
88263A
|
88263A
88263-32070 Relay, Skid Control[08.2001 - 12.2003] JZS175 |
88263-32070 |
US $47.21 |
||
|
88263E
|
88263E
88263-24030 Relay, Skid Control[09.1999 - 08.2001] JZS175 |
88263-24030 |
from US $38.21 |
||
|
89189B
|
89189B
89189-30070 Bracket, Yawrate Sensor[09.1999 - 08.2001] JZS175 |
89189-30070 |
US $28.39 |
||
|
89540
|
89540
89540-30470 Computer Assy, Skid Control[09.1999 - 08.2001] JZS175 |
89540-30470 |
US $640.64 |
||
|
89540
|
89540
89540-30530 Computer Assy, Skid Control[08.2001 - 12.2003] JZS175 |
89540-30530 |
US $640.64 |
||
|
89542
|
89542
89542-30230
Sensor, Speed, Front Rh
[09.1999 - 08.2001] JZS175 |
89542-30230 |
— | ||
| replacement | |||||
|
89542
|
89542
89542-51010 Sensor, Speed, Front Rh[09.1999 - 08.2001] JZS175 |
89542-51010 |
from US $243.20 |
||
|
89542
|
89542
89542-51010 Sensor, Speed, Front Rh[08.2003 - 12.2003] JZS175 |
89542-51010 |
from US $243.20 |
||
|
89543
|
89543
89543-30230
Sensor, Speed, Front Lh
[09.1999 - 08.2001] JZS175 |
89543-30230 |
— | ||
| replacement | |||||
|
89543
|
89543
89543-53010 Sensor, Speed, Front Lh[09.1999 - 08.2001] JZS175 |
89543-53010 |
from US $243.20 |
||
|
89543
|
89543
89543-53010 Sensor, Speed, Front Lh[08.2003 - 12.2003] JZS175 |
89543-53010 |
from US $243.20 |
||
|
89545
|
89545
89545-30060 Sensor, Speed, Rear Rh[09.1999 - 08.2001] JZS175 |
89545-30060 |
US $338.52 |
||
|
89546
|
89546
89546-30060 Sensor, Speed, Rear Lh[09.1999 - 08.2001] JZS175 |
89546-30060 |
US $276.58 |
||
|
89650D
|
89650D
89650-30590 Computer Assy, Power SteeringPOWER STEERING [09.1999 - 08.2001] JZS175 |
89650-30590 |
US $294.11 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.25 |
||
|
9017806001
|
9017806001
90178-06001 New Genuine Part |
90178-06001 |
US $0.52 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.70 |
||
|
G341633010
|
G341633010
G3416-33010 New Genuine Part |
G3416-33010 |
US $1.31 |
||
