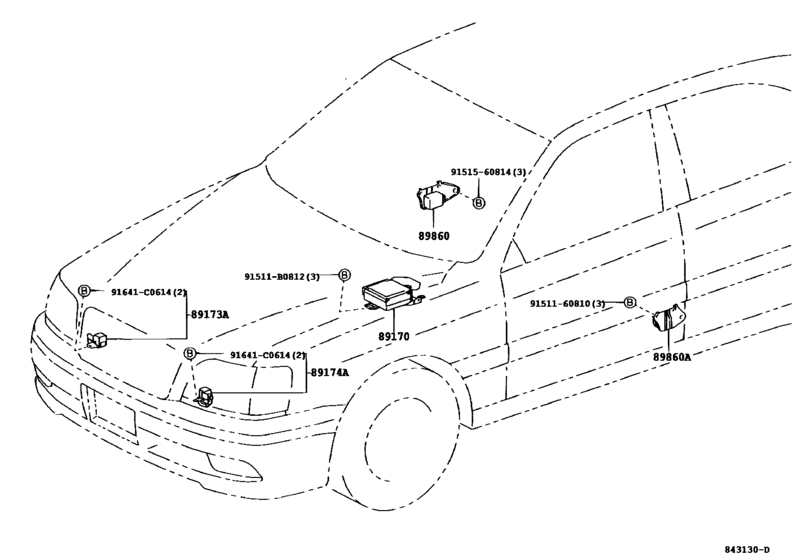

Air Bag ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-30260 Sensor Assy, Air Bag[09.1999 - 08.2001] JZS175 W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
89170-30260 |
US $1,514.24 |
||
|
89170
|
89170
89170-30270 Sensor Assy, Air Bag[09.1999 - 08.2001] JZS175 |
89170-30270 |
US $1,514.24 |
||
|
89170
|
89170
89170-30370 Sensor Assy, Air Bag[08.2001 - 12.2003] JZS175 W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
89170-30370 |
US $1,514.24 |
||
|
89170
|
89170
89170-30380 Sensor Assy, Air Bag[08.2001 - 12.2003] JZS175 |
89170-30380 |
US $1,514.24 |
||
|
89173A
|
89173A
89173-39255 Sensor, Air Bag, Front Rh[09.1999 - 02.2001] JZS175 |
89173-39255 |
US $315.95 |
||
| replacement | |||||
|
89173A
|
89173A
89173-39305 Sensor, Air Bag, Front Rh[09.1999 - 02.2001] JZS175 |
89173-39305 |
US $179.09 |
||
|
89173A
|
89173A
89173-39305 Sensor, Air Bag, Front Rh[02.2001 - 08.2001] JZS175 |
89173-39305 |
US $179.09 |
||
|
89174A
|
89174A
89174-39125 Sensor, Air Bag, Front Lh[09.1999 - 02.2001] JZS175 |
89174-39125 |
US $315.95 |
||
| replacement | |||||
|
89174A
|
89174A
89174-39175 Sensor, Air Bag, Front Lh[09.1999 - 02.2001] JZS175 |
89174-39175 |
US $179.09 |
||
|
89174A
|
89174A
89174-39175 Sensor, Air Bag, Front Lh[02.2001 - 08.2001] JZS175 |
89174-39175 |
US $179.09 |
||
|
89860
|
89860
89860-30050
Sensor Assy, Side Air Bag, Rh
[09.1999 - 08.2001] JZS175 |
89860-30050 |
— | ||
|
89860
|
89860
89860-30100 Sensor Assy, Side Air Bag, Rh[08.2001 - 12.2003] JZS175 |
89860-30100 |
US $334.88 |
||
|
89860A
|
89860A
89830-30050 Sensor Assy, Side Air Bag, Lh[09.1999 - 08.2001] JZS175 |
89830-30050 |
US $334.88 |
||
|
89860A
|
89860A
89830-30100 Sensor Assy, Side Air Bag, Lh[08.2001 - 12.2003] JZS175 |
89830-30100 |
US $334.88 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.65 |
||
|
9151160810
|
9151160810
91511-60810 BOLT |
91511-60810 |
US $1.79 |
||
|
9151560814
|
9151560814
91515-60814 New Genuine Part |
91515-60814 |
US $1.75 |
||
| replacement | |||||
|
9151560814
|
9151560814
91511-60810 BOLT |
91511-60810 |
US $1.79 |
||
