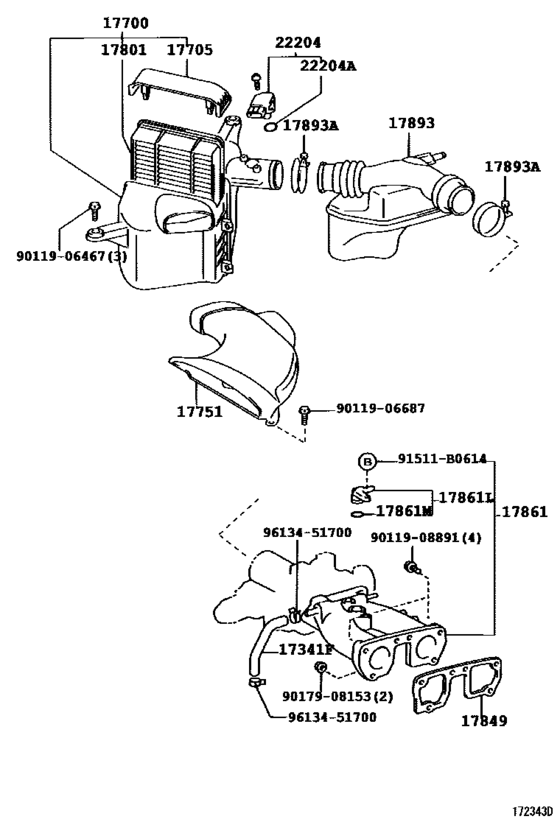

Air Cleaner ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-46210 Hose, Air, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
17341-46210 |
US $16.84 |
||
|
17700
|
17700
17700-46420 Cleaner Assy, Air[09.1999 - 08.2001] 2JZGE..JZS175 |
17700-46420 |
US $336.34 |
||
|
17705
|
17705
17705-46140
Cap Sub-Assy, Air Cleaner
[09.1999 - 08.2001] 2JZGE..JZS175 |
17705-46140 |
— | ||
|
17751
|
17751
17751-46120 Inlet, Air Cleaner, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
17751-46120 |
US $135.41 |
||
|
17801
|
17801
17801-46080 Element Sub-Assy, Air Cleaner Filter[09.1999 - 08.2001] 2JZGE..JZS175 |
17801-46080 |
from US $36.99 |
||
|
17849
|
17849
17849-46020 Gasket, Intake Air Connector[09.1999 - 08.2001] 2JZGE..JZS175 |
17849-46020 |
from US $6.37 |
||
|
17861
|
17861
17860-46121 Connector, Intake Air[09.1999 - 04.2000] 2JZGE..JZS175 |
17860-46121 |
US $189.28 |
||
| replacement | |||||
|
17861
|
17861
17860-46123 Connector, Intake Air[09.1999 - 04.2000] 2JZGE..JZS175 |
17860-46123 |
US $186.37 |
||
|
17861
|
17861
17860-46123 Connector, Intake Air[04.2000 - 08.2001] 2JZGE..JZS175 |
17860-46123 |
US $186.37 |
||
|
17861L
|
17861L
90407-17003 Elbow(For Intake Air Connector)[04.2000 - 08.2001] 2JZGE..JZS175 |
90407-17003 |
US $3.32 |
||
|
17861M
|
17861M
96711-19017 Ring, O(For Intake Air Connector)[04.2000 - 08.2001] 2JZGE..JZS175 |
96711-19017 |
US $3.32 |
||
|
17893
|
17893
17893-46150 Resonator, Intake Air[09.1999 - 08.2001] 2JZGE..JZS175 |
17893-46150 |
US $135.41 |
||
|
17893A
|
17893A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[09.1999 - 08.2001] 2JZGE..JZS175 |
96111-10800 |
from US $2.87 |
||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[09.1999 - 08.2001] 2JZGE..JZS175 |
22204-22010 |
from US $130.38 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[09.1999 - 08.2001] 2JZGE..JZS175 |
90099-14141 |
from US $1.06 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.87 |
||
|
9011906687
|
9011906687
90119-06687 BOLT WWASHER |
90119-06687 |
US $2.15 |
||
|
9011908891
|
9011908891
90119-08891 BOLT |
90119-08891 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9613451700
|
9613451700
96134-51700 Clip Or Clamp(For Ventilation Hose) |
96134-51700 |
US $2.51 |
||
