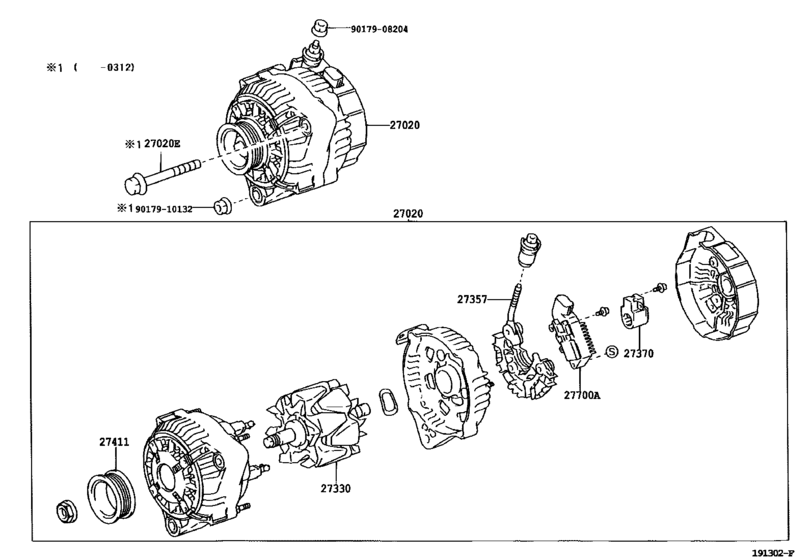

Alternator ([08.2001 - ] 12V 100A (0108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-46280 Alternator Assy[09.1999 - 01.2001] 2JZGE..JZS175 12V 100A |
27060-46280 |
US $1,820 |
||
|
27020
|
27020
27060-46330 Alternator Assy[01.2001 - 08.2001] 2JZGE..JZS175 12V 100A |
27060-46330 |
US $1,820 |
||
| replacement | |||||
|
27020
|
27020
27060-46300 Alternator Assy[01.2001 - 08.2001] 2JZGE..JZS175 12V 100A |
27060-46300 |
US $1,820 |
||
|
27020E
|
27020E
91512-61050 Bolt(For Alternator)[09.1999 - 08.2001] 2JZGE..JZS175 |
91512-61050 |
US $2.15 |
||
|
27330
|
27330
27330-46090
Rotor Assy, Alternator
[09.1999 - 01.2001] 2JZGE..JZS175 |
27330-46090 |
— | ||
|
27330
|
27330
27330-62180
Rotor Assy, Alternator
[01.2001 - 08.2001] 2JZGE..JZS175 |
27330-62180 |
— | ||
|
27357
|
27357
27357-46180
Holder, Alternator, W/rectifier
[08.2001 - 12.2003] 2JZGE..JZS175 |
27357-46180 |
— | ||
|
27357
|
27357
27357-46310
Holder, Alternator, W/rectifier
[09.1999 - 08.2001] 2JZGE..JZS175 |
27357-46310 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[09.1999 - 08.2001] 2JZGE..JZS175 |
27370-75060 |
from US $15.22 |
||
|
27411
|
27411
27411-46080
Pulley, Alternator
[09.1999 - 08.2001] 2JZGE..JZS175 |
27411-46080 |
— | ||
|
27700A
|
27700A
27700-20050 Regulator Assy, Generator[09.1999 - 01.2001] 2JZGE..JZS175 |
27700-20050 |
US $262.08 |
||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[01.2001 - 08.2001] 2JZGE..JZS175 |
27700-46060 |
US $279.55 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
