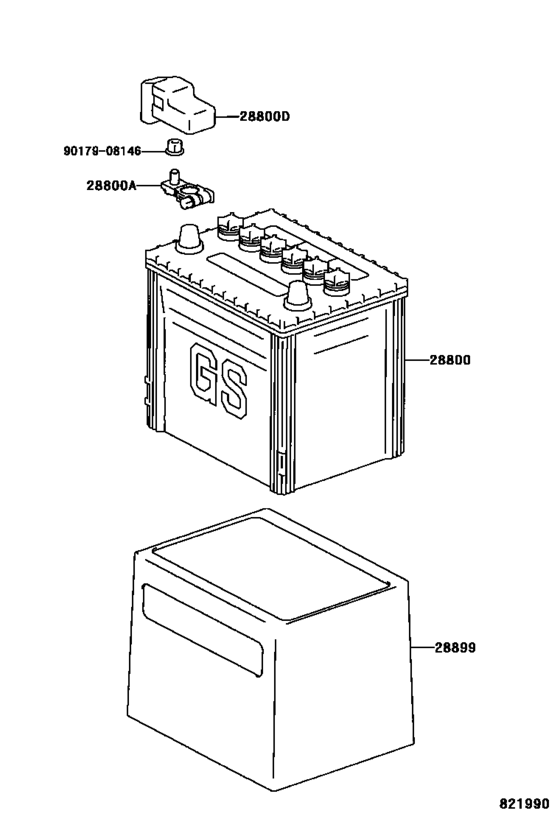

Battery & Battery Cable ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-15012
Battery
[09.1999 - 03.2000] 2JZGE..JZS175 55D23R,NIPPONDENSO JAPAN |
28800-15012 |
— | ||
|
28800
|
28800
28800-15020
Battery
[03.2000 - 08.2001] 2JZGE..JZS175 55D23R,YUASA |
28800-15020 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-15022
Battery
[03.2000 - 08.2001] 2JZGE..JZS175 55D23R,YUASA |
28800-15022 |
— | ||
|
28800
|
28800
28800-15022
Battery
[08.2001 - 12.2003] 2JZGE..JZS175 55D23R |
28800-15022 |
— | ||
|
28800
|
28800
28800-46160
Battery
[09.1999 - 08.2001] 2JZGE..JZS175 55D23R,FURUKAWA |
28800-46160 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-15022
Battery
[09.1999 - 08.2001] 2JZGE..JZS175 55D23R,FURUKAWA |
28800-15022 |
— | ||
|
28800A
|
28800A
90982-05053 Terminal, Battery Positive[03.2001 - 08.2001] 2JZGE..JZS175 |
90982-05053 |
US $15.41 |
||
|
28800A
|
28800A
90982-05054 Terminal, Battery Positive[09.1999 - 03.2001] 2JZGE..JZS175 |
90982-05054 |
from US $15.23 |
||
|
28800D
|
28800D
82821-24010 Cover, Connector(For Battery Terminal)[09.1999 - 08.2001] 2JZGE..JZS175 |
82821-24010 |
from US $5.56 |
||
|
28899
|
28899
28899-76010 Insulator, Battery[09.1999 - 08.2001] 2JZGE..JZS175 |
28899-76010 |
US $62.03 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
