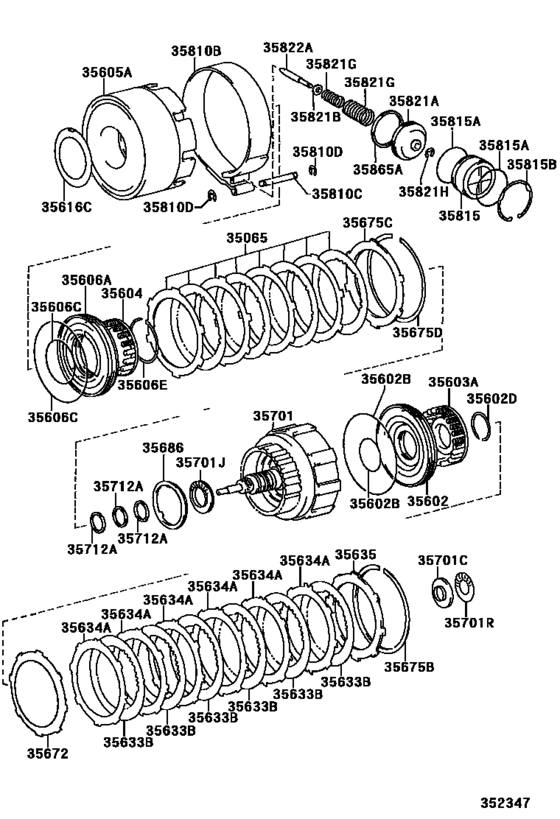

Brake Band & Multiple Disc Clutch (Atm) ([09.1999 - 12.2003] A340E (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35065
|
35065
35065-30100 Drum Sub-Assy, Rear Clutch & Front Sun Gear[09.1999 - 08.2001] JZS175 |
35065-30100 |
US $186.37 |
||
|
35602
|
35602
35602-22020 Piston Sub-Assy, Front Clutch[09.1999 - 08.2001] JZS175 |
35602-22020 |
US $40.62 |
||
|
35602B
|
35602B
90301-39005 Ring, O (For Forward Clutch Piston)[09.1999 - 08.2001] JZS175 INNER |
90301-39005 |
US $2.97 |
||
|
35602B
|
35602B
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS175 OUTER |
90301-99058 |
US $3.58 |
||
|
35602D
|
35602D
90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[09.1999 - 08.2001] JZS175 |
90520-35001 |
US $1.46 |
||
|
35603A
|
35603A
35603-50010 Spring Sub-Assy, Forward Clutch Return[09.1999 - 08.2001] JZS175 |
35603-50010 |
US $9.90 |
||
|
35604
|
35604
35604-35010 Spring Sub-Assy, Direct Clutch Return[09.1999 - 08.2001] JZS175 |
35604-35010 |
US $12.96 |
||
|
35605A
|
35605A
35605-22040 Drum Sub-Assy, Direct Clutch[09.1999 - 08.2001] JZS175 |
35605-22040 |
US $167.73 |
||
|
35606A
|
35606A
35606-35010 Piston Sub-Assy, Direct Clutch[09.1999 - 08.2001] JZS175 |
35606-35010 |
US $35.67 |
||
|
35606C
|
35606C
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS175 INNER |
90301-65006 |
US $5.38 |
||
|
35606C
|
35606C
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[09.1999 - 08.2001] JZS175 OUTER |
90301-99058 |
US $3.58 |
||
|
35606E
|
35606E
90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[09.1999 - 08.2001] JZS175 |
90520-58001 |
US $1.89 |
||
|
35616C
|
35616C
35616-30050 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[09.1999 - 08.2001] JZS175 |
35616-30050 |
US $3.64 |
||
|
35633B
|
35633B
35677-30190 Disc, Clutch (For Forward Multiple Disc Clutch)[09.1999 - 08.2001] JZS175 |
35677-30190 |
US $36.25 |
||
|
35634A
|
35634A
35634-30110 Plate, Clutch (For Forward Multiple Disc Clutch)[09.1999 - 08.2001] JZS175 T=2.3 |
35634-30110 |
US $30.74 |
||
|
35635
|
35635
35635-30040 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=4.0,MARK 95 |
35635-30040 |
US $26.38 |
||
|
35635
|
35635
35635-30050 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=3.8,MARK 94 |
35635-30050 |
US $27.08 |
||
|
35635
|
35635
35635-30060 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=3.6,MARK 93 |
35635-30060 |
US $31.45 |
||
|
35635
|
35635
35635-30070 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=3.4,MARK 92 |
35635-30070 |
US $27.08 |
||
|
35635
|
35635
35635-30080 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=3.2,MARK 91 |
35635-30080 |
US $27.08 |
||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[09.2001 - 12.2003] JZS175 T=3.0,MARK 90 |
35635-30090 |
US $27.08 |
||
|
35635
|
35635
35635-50060 Flange, Forward Clutch[09.1999 - 08.2001] JZS175 T=3.00,MARK 61 |
35635-50060 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[09.1999 - 08.2001] JZS175 T=3.00,MARK 61 |
35635-30090 |
US $27.08 |
||
|
35672
|
35672
35672-22010 Plate, Clutch Cushion[09.1999 - 08.2001] JZS175 |
35672-22010 |
US $16.45 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[09.1999 - 08.2001] JZS175 |
90521-99001 |
US $4.54 |
||
|
35675C
|
35675C
35675-22030 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.3,MARK 33 |
35675-22030 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.3,MARK 33 |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-22040 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.4,MARK 34 |
35675-22040 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.4,MARK 34 |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-22080 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.8,MARK 38 |
35675-22080 |
US $81.54 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[09.1999 - 05.2000] JZS175 T=3.8,MARK 38 |
35675-30260 |
US $51.40 |
||
|
35675C
|
35675C
35675-22090 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=3.9,MARK 39 |
35675-22090 |
US $82.99 |
||
|
35675C
|
35675C
35675-22100 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=4.0,MARK 40 |
35675-22100 |
US $84.45 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30270 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=4.0,MARK 40 |
35675-30270 |
US $52.71 |
||
|
35675C
|
35675C
35675-30210 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=3.5,MARK 55 |
35675-30210 |
US $56.09 |
||
|
35675C
|
35675C
35675-30220 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=3.6,MARK 56 |
35675-30220 |
US $50.52 |
||
|
35675C
|
35675C
35675-30230 Flange, Direct Clutch[09.1999 - 08.2001] JZS175 T=3.7,MARK 57 |
35675-30230 |
US $50.81 |
||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[05.2000 - 08.2001] JZS175 T=3.3,MARK 53 |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[05.2000 - 08.2001] JZS175 T=3.4,MARK 54 |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[05.2000 - 08.2001] JZS175 T=3.8,MARK 58 |
35675-30260 |
US $51.40 |
||
|
35675C
|
35675C
35675-30270 Flange, Direct Clutch[09.2001 - 12.2003] JZS175 T=4.0,MARK 60 |
35675-30270 |
US $52.71 |
||
|
35675D
|
35675D
90520-99018 Ring, Hole Snap (For Direct Clutch Flange)[09.1999 - 08.2001] JZS175 |
90520-99018 |
US $3.20 |
||
|
35686
|
35686
35686-30010 Washer, Clutch Drum Thrust (For Input Shaft)[09.1999 - 08.2001] JZS175 |
35686-30010 |
US $3.79 |
||
|
35701
|
35701
35701-22080 Shaft Sub-Assy, Input[09.1999 - 08.2001] JZS175 |
35701-22080 |
US $410.59 |
||
|
35701C
|
35701C
35789-30110 Race, Thrust Bearing (For Input Shaft Rear)[09.1999 - 08.2001] JZS175 |
35789-30110 |
US $7.72 |
||
|
35701J
|
35701J
90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front)[09.1999 - 08.2001] JZS175 |
90374-33001 |
US $15.87 |
||
|
35701R
|
35701R
90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[09.1999 - 08.2001] JZS175 |
90374-25005 |
US $13.25 |
||
|
35712A
|
35712A
35712-30020 Ring, Input Shaft Oil Seal[09.1999 - 08.2001] JZS175 |
35712-30020 |
US $5.59 |
||
|
35810B
|
35810B
35810-14010 Band Assy, 2Nd Coast Brake[09.1999 - 08.2001] JZS175 |
35810-14010 |
US $101.92 |
||
|
35810C
|
35810C
90249-07011 Pin (For 2Nd Coast Brake Band)[09.1999 - 08.2001] JZS175 |
90249-07011 |
US $2.80 |
||
|
35810D
|
35810D
96160-00500 Ring, E(For Over Center Lever)[09.1999 - 08.2001] JZS175 |
96160-00500 |
US $1.79 |
||
|
35815
|
35815
35815-30010 Cover, 2Nd Coast Brake[09.1999 - 08.2001] JZS175 |
35815-30010 |
US $11.50 |
||
|
35815A
|
35815A
90301-48001 Ring, O (For 2Nd Coast Brake Cover)[09.1999 - 08.2001] JZS175 |
90301-48001 |
US $4.66 |
||
|
35815B
|
35815B
90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover)[09.1999 - 08.2001] JZS175 |
90521-60003 |
US $1.05 |
||
|
35821A
|
35821A
35821-30020
Piston, 2Nd Coast Brake
[09.1999 - 08.2001] JZS175 |
35821-30020 |
— | ||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS175 |
90201-06557 |
US $0.79 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS175 OUTER |
90501-26024 |
US $1.05 |
||
|
35821G
|
35821G
90501-27009 Spring, Compression (For 2Nd Coast Brake Piston)[09.1999 - 08.2001] JZS175 INNER |
90501-27009 |
US $1.46 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[09.1999 - 08.2001] JZS175 |
96160-00500 |
US $1.79 |
||
|
35822A
|
35822A
35822-32010 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS175 L=70.9 |
35822-32010 |
US $8.44 |
||
|
35822A
|
35822A
35822-32020 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS175 L=72.4 |
35822-32020 |
US $8.44 |
||
|
35822A
|
35822A
35822-50010 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS175 L=72.15 |
35822-50010 |
US $8.59 |
||
|
35822A
|
35822A
35822-50020 Rod, 2Nd Coast Brake Piston[09.1999 - 08.2001] JZS175 L=70.65 |
35822-50020 |
US $8.59 |
||
|
35865A
|
35865A
35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal[09.1999 - 08.2001] JZS175 |
35865-30010 |
US $6.99 |
||
