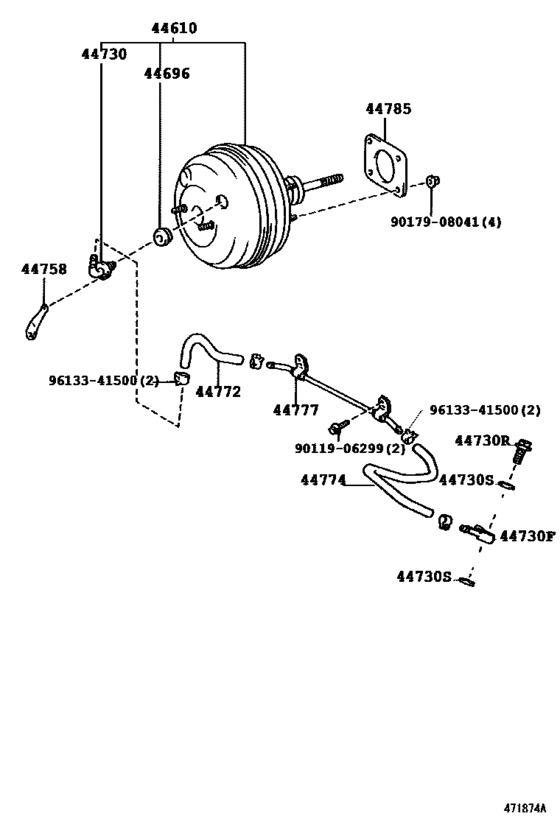

Brake Booster & Vacuum Tube ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-3A220 Booster Assy, Brake[09.1999 - 08.2001] JZS175 |
44610-3A220 |
US $586.77 |
||
|
44610
|
44610
44610-3A270 Booster Assy, Brake[08.2001 - 12.2003] JZS175 |
44610-3A270 |
US $933.30 |
||
|
44696
|
44696
90480-24015 Grommet, Check Valve[09.1999 - 08.2001] JZS175 |
90480-24015 |
US $2.33 |
||
|
44730
|
44730
44730-40040 Valve Assy, Vacuum Check(For Brake)[09.1999 - 08.2001] JZS175 |
44730-40040 |
US $29.27 |
||
|
44730F
|
44730F
90405-09160 Union, Vacuum Hose(For Manifold Side)[09.1999 - 08.2001] JZS175 |
90405-09160 |
US $6.99 |
||
|
44730R
|
44730R
90401-12012 Bolt, Union(For Vacuum Hose Union)[09.1999 - 08.2001] JZS175 |
90401-12012 |
US $7.88 |
||
|
44730S
|
44730S
90430-12005 Gasket(For Water Hole)[09.1999 - 08.2001] JZS175 |
90430-12005 |
from US $1.19 |
||
|
44758
|
44758
44758-40020 Bracket, Vacuum Check Valve[09.1999 - 08.2001] JZS175 |
44758-40020 |
US $2.48 |
||
|
44772
|
44772
44772-30200 Hose, Check Valve To Connector Tube[09.1999 - 08.2001] JZS175 |
44772-30200 |
US $12.67 |
||
|
44774
|
44774
44774-30120 Hose, Union To Connector TubeUNION TO CONNECTOR TUBE [09.1999 - 08.2001] JZS175 |
44774-30120 |
US $19.80 |
||
|
44777
|
44777
44770-30020 Connector, Vacuum Hose, No.1[09.1999 - 08.2001] JZS175 |
44770-30020 |
US $15.29 |
||
|
44785
|
44785
44785-30030 Gasket, Brake Booster[09.1999 - 08.2001] JZS175 |
44785-30030 |
US $6.45 |
||
|
9011906299
|
9011906299
90119-06299 New Genuine Part |
90119-06299 |
US $1.31 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $1.76 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.51 |
||
