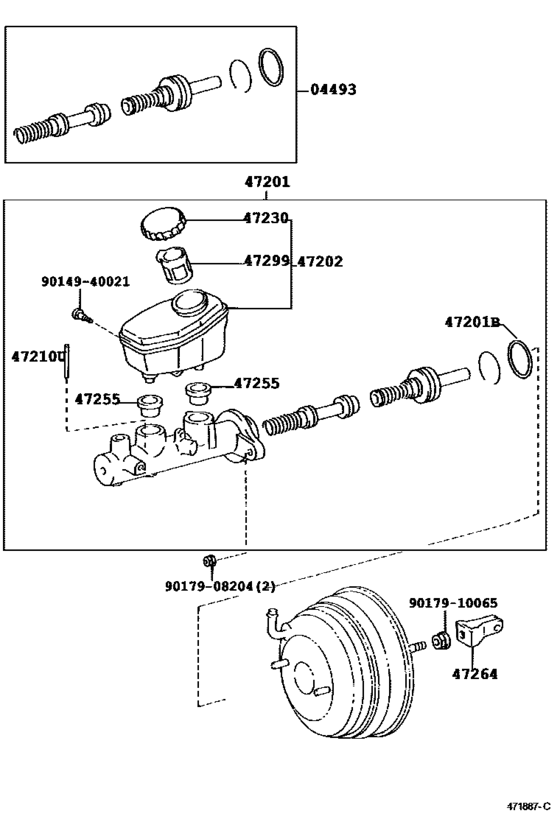

Brake Master Cylinder ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-30300 Cylinder Kit, Brake Master[09.1999 - 08.2001] JZS175 |
04493-30300 |
US $91.73 |
||
|
47201
|
47201
47201-2A080 Cylinder Sub-Assy, Brake Master[09.2003 - 12.2003] JZS175 |
47201-2A080 |
US $390.21 |
||
|
47201
|
47201
47201-30741 Cylinder Sub-Assy, Brake Master[09.1999 - 08.2001] JZS175 |
47201-30741 |
US $390.21 |
||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[09.1999 - 08.2001] JZS175 |
90029-20059 |
from US $2.19 |
||
|
47202
|
47202
47220-22100 Reservoir Sub-Assy, Brake Master Cylinder[09.2003 - 12.2003] JZS175 |
47220-22100 |
US $131.04 |
||
|
47202
|
47202
47220-30160
Reservoir Sub-Assy, Brake Master Cylinder
[09.1999 - 08.2001] JZS175 |
47220-30160 |
— | ||
|
47210U
|
47210U
90029-14204 Pin, Straight(For Brake Master Cylinder)[09.1999 - 08.2001] JZS175 |
90029-14204 |
US $0.83 |
||
|
47230
|
47230
47230-24010
Cap Assy, Brake Master Cylinder Reservoir Filler
[09.1999 - 08.2001] JZS175 |
47230-24010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[09.1999 - 08.2001] JZS175 |
47230-47090 |
from US $11.74 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[09.1999 - 08.2001] JZS175 |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-30060 Clevis, Master Cylinder Push Rod[09.1999 - 08.2001] JZS175 |
47264-30060 |
US $4.22 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[09.1999 - 08.2001] JZS175 |
47299-20060 |
US $2.41 |
||
|
9014940021
|
9014940021
90149-40021 New Genuine Part |
90149-40021 |
US $1.43 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
