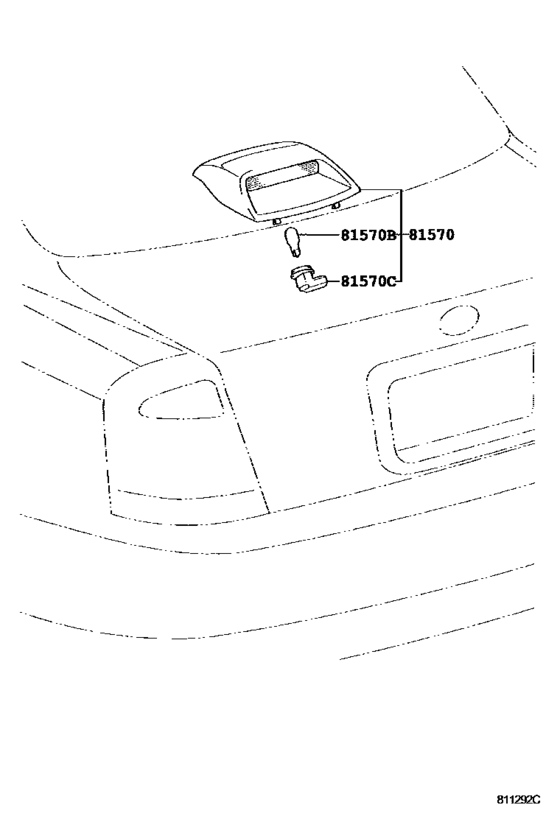

Center Stop Lamp ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81570
|
81570
81570-30160-B0 Lamp Assy, Center Stop[09.1999 - 08.2001] JZS175 DK.CHARCOAL,TRIM1# |
81570-30160-B0 |
US $120.85 |
||
|
81570
|
81570
81570-30160-E0 Lamp Assy, Center Stop[09.1999 - 08.2001] JZS175 SANDAL WOOD,TRIM0# |
81570-30160-E0 |
US $120.85 |
||
|
81570B
|
81570B
90981-11039
Bulb (For License Plate Lamp)
[09.1999 - 08.2001] JZS175 12V 16W |
90981-11039 |
— | ||
| replacement | |||||
|
81570B
|
81570B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[09.1999 - 08.2001] JZS175 12V 16W |
90981-11059 |
from US $3.15 |
||
|
81570B
|
81570B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2001 - 12.2003] JZS175 12V 16W |
90981-11059 |
from US $3.15 |
||
|
81570C
|
81570C
90075-99005 Socket And Wire, License Plate Lamp[09.1999 - 08.2001] JZS175 |
90075-99005 |
from US $5.36 |
||
