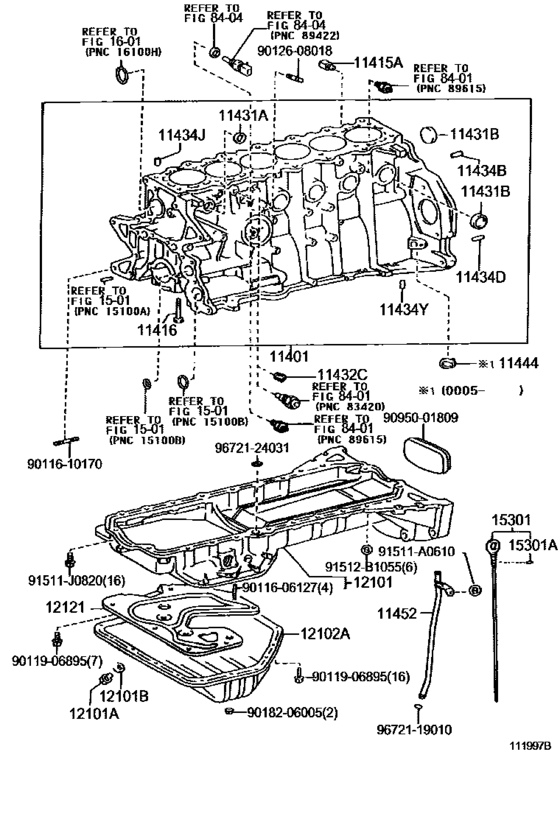

Cylinder Block ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-49667 Block Sub-Assy, Cylinder[09.1999 - 03.2001] 2JZGE..JZS175 |
11401-49667 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-49775 Block Sub-Assy, Cylinder[09.1999 - 03.2001] 2JZGE..JZS175 |
11401-49775 |
US $3,290.56 |
||
|
11401
|
11401
11401-49668 Block Sub-Assy, Cylinder[03.2001 - 08.2001] 2JZGE..JZS175 |
11401-49668 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-49775 Block Sub-Assy, Cylinder[03.2001 - 08.2001] 2JZGE..JZS175 |
11401-49775 |
US $3,290.56 |
||
|
11415A
|
11415A
90910-09102 Plug, Water Drain Cock(For Cylinder Block)[09.1999 - 08.2001] 2JZGE..JZS175 |
90910-09102 |
US $8.21 |
||
|
11416
|
11416
90910-02104 Bolt(For Crankshaft Bearing Cap Set)[09.1999 - 08.2001] 2JZGE..JZS175 |
90910-02104 |
US $5.56 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
96411-43500 |
US $4.66 |
||
|
11432C
|
11432C
90344-53015 Plug, W/head Taper Screw, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
90344-53015 |
US $5.38 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1999 - 08.2001] 2JZGE..JZS175 L=22,OD=10 |
90250-10192 |
US $2.15 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[09.1999 - 08.2001] 2JZGE..JZS175 L=14,OD=6 |
90250-06003 |
US $1.61 |
||
|
11434J
|
11434J
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[09.1999 - 08.2001] 2JZGE..JZS175 |
90253-14003 |
US $2.51 |
||
|
11434Y
|
11434Y
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1999 - 08.2001] 2JZGE..JZS175 |
90250-10192 |
US $2.15 |
||
|
11444
|
11444
11444-46010 Plug, Hole[05.2000 - 08.2001] 2JZGE..JZS175 |
11444-46010 |
US $5.24 |
||
|
11452
|
11452
11452-46010
Guide, Oil Level Gage
[09.1999 - 08.2001] 2JZGE..JZS175 |
11452-46010 |
— | ||
|
12101
|
12101
12111-46062 Pan Sub-Assy, Oil[09.1999 - 08.2001] 2JZGE..JZS175 |
12111-46062 |
US $767.31 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.2001 - 12.2003] 2JZGE..JZS175 |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[09.1999 - 08.2001] 2JZGE..JZS175 |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.1999 - 08.2001] 2JZGE..JZS175 |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1999 - 08.2001] 2JZGE..JZS175 |
90430-12031 |
from US $1.61 |
||
|
12102A
|
12102A
12102-46040 Pan Sub-Assy, Oil, No.2[09.1999 - 08.2001] 2JZGE..JZS175 |
12102-46040 |
US $208 |
||
|
12121
|
12121
12121-46010 Plate, Oil Pan Baffle, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
12121-46010 |
US $68.04 |
||
|
15301
|
15301
15301-46023 Gage Sub-Assy, Oil Level[09.1999 - 08.2001] 2JZGE..JZS175 |
15301-46023 |
US $20.16 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[09.1999 - 08.2001] 2JZGE..JZS175 |
96741-19005 |
US $2.51 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
US $2.33 |
||
|
91512B1055
|
91512B1055
91512-B1055 BOLT FLANGE |
91512-B1055 |
from US $3.62 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
US $1.43 |
||
|
9011610170
|
9011610170
90116-10170 BOLT STUD |
90116-10170 |
US $7.35 |
||
|
9011906895
|
9011906895
90119-06895
BOLT WWASHER
|
90119-06895 |
— | ||
| replacement | |||||
|
9011906895
|
9011906895
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.25 |
||
|
9012608018
|
9012608018
90126-08018 Bolt, Stud(For Egr Valve) |
90126-08018 |
US $7.16 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9095001809
|
9095001809
90950-01809 Plug, Semi Circular(For Chain Cover No.2) |
90950-01809 |
US $9.32 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $3.40 |
||
|
9672124031
|
9672124031
96721-24031 Ring, O |
96721-24031 |
from US $3.23 |
||
| replacement | |||||
|
9672124031
|
9672124031
90301-A0032 Ring, O(For Oil Strainer) |
90301-A0032 |
US $7.32 |
||
