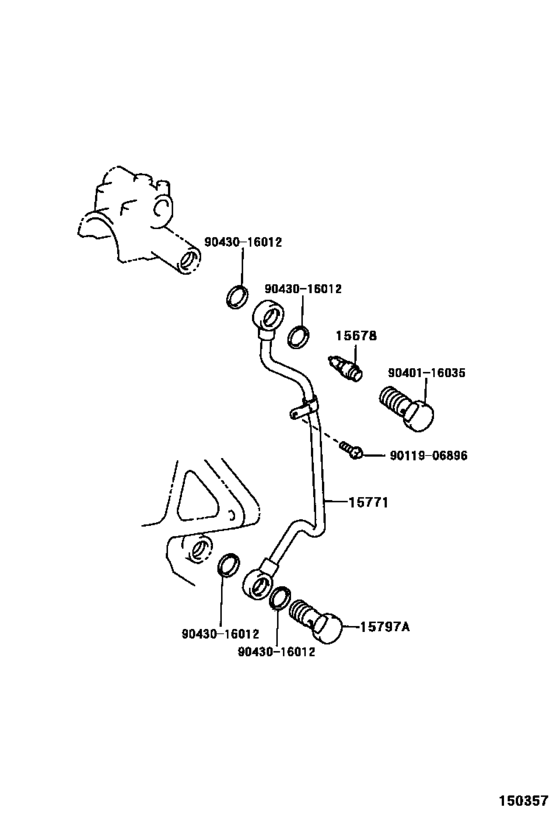

Engine Oil Cooler ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15678
|
15678
15678-46020 Filter, Oil Control Valve[09.1999 - 08.2001] 2JZGE..JZS175 |
15678-46020 |
from US $3.38 |
||
|
15771
|
15771
15771-46010 Pipe, Oil, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
15771-46010 |
US $64.36 |
||
|
15797A
|
15797A
15797-46010 Bolt, Oil Check Valve[09.1999 - 08.2001] 2JZGE..JZS175 |
15797-46010 |
US $21.84 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $2.15 |
||
|
9040116035
|
9040116035
90401-16035 Union(For Oil Pipe) |
90401-16035 |
US $5.56 |
||
|
9043016012
|
9043016012
90430-16012 Gasket, W/head Taper Screw Plug |
90430-16012 |
from US $0.78 |
||
