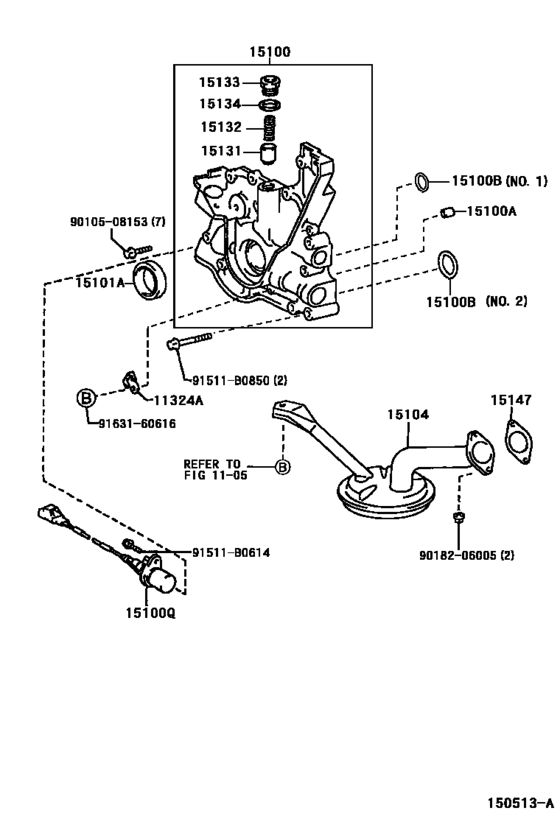

Engine Oil Pump ([08.2001 - 12.2003] (0108-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11324A
|
11324A
11324-46030 Plate, Timing Belt[09.1999 - 08.2001] 2JZGE..JZS175 |
11324-46030 |
from US $1.67 |
||
|
15100
|
15100
15100-46090 Pump Assy, Oil[09.1999 - 05.2001] 2JZGE..JZS175 |
15100-46090 |
US $301.39 |
||
| replacement | |||||
|
15100
|
15100
15100-46091 Pump Assy, Oil[09.1999 - 05.2001] 2JZGE..JZS175 |
15100-46091 |
from US $113.91 |
||
|
15100
|
15100
15100-46091 Pump Assy, Oil[05.2001 - 08.2001] 2JZGE..JZS175 |
15100-46091 |
from US $113.91 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[09.1999 - 08.2001] 2JZGE..JZS175 |
90253-11021 |
from US $1.41 |
||
|
15100B
|
15100B
96721-24022 Ring, O(For Timing Gear Case, Upper)[09.1999 - 08.2001] 2JZGE..JZS175 NO.1 |
96721-24022 |
from US $2 |
||
|
15100B
|
15100B
96721-24031 Ring, O[09.1999 - 08.2001] 2JZGE..JZS175 NO.2 |
96721-24031 |
from US $2.15 |
||
| replacement | |||||
|
15100B
|
15100B
90301-A0032 Ring, O(For Oil Strainer)[09.1999 - 08.2001] 2JZGE..JZS175 NO.2 |
90301-A0032 |
US $7.32 |
||
|
15100Q
|
15100Q
90919-05023 Sensor, Crank Position[09.1999 - 08.2001] 2JZGE..JZS175 |
90919-05023 |
from US $84.48 |
||
|
15101A
|
15101A
90311-46001 Seal(For Crankshaft)[09.1999 - 08.2001] 2JZGE..JZS175 |
90311-46001 |
from US $9.32 |
||
|
15104
|
15104
15104-46070 Strainer Sub-Assy, Oil[09.1999 - 08.2001] 2JZGE..JZS175 |
15104-46070 |
US $100.04 |
||
|
15131
|
15131
15131-46060 Valve, Oil Pump Relief[09.1999 - 08.2001] 2JZGE..JZS175 |
15131-46060 |
US $7.16 |
||
|
15132
|
15132
15132-46060 Spring, Oil Pump Relief Valve[09.1999 - 08.2001] 2JZGE..JZS175 |
15132-46060 |
US $2.77 |
||
|
15133
|
15133
15133-17010 Plug, Oil Pump Relief Valve[09.1999 - 08.2001] 2JZGE..JZS175 |
15133-17010 |
from US $1.82 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[09.1999 - 08.2001] 2JZGE..JZS175 |
15134-67020 |
from US $1.65 |
||
|
15147
|
15147
15147-46010 Gasket, Oil Strainer[09.1999 - 08.2001] 2JZGE..JZS175 |
15147-46010 |
from US $2.13 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91511B0850
|
91511B0850
91511-B0850 Bolt |
91511-B0850 |
from US $1.41 |
||
|
9010508153
|
9010508153
90105-08153 New Genuine Part |
90105-08153 |
US $2.87 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9163160616
|
9163160616
91631-60616
BOLT WWASHER
|
91631-60616 |
— | ||
| replacement | |||||
|
9163160616
|
9163160616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
