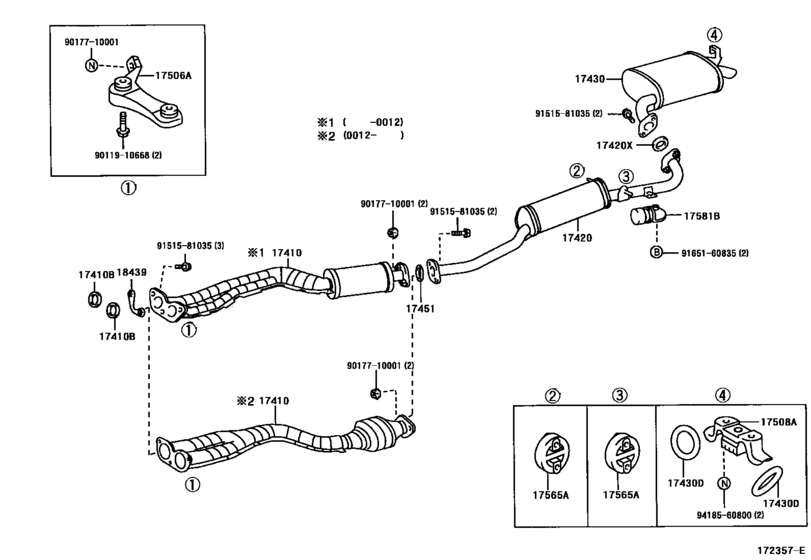

Exhaust Pipe ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-46540 Pipe Assy, Exhaust, Front[09.1999 - 12.2000] 2JZGE..JZS175 |
17410-46540 |
US $511.06 |
||
|
17410
|
17410
17410-46580
Pipe Assy, Exhaust, Front
[12.2000 - 08.2001] 2JZGE..JZS175 |
17410-46580 |
— | ||
|
17410B
|
17410B
90917-06046 Gasket, Exhaust Pipe[09.1999 - 08.2001] 2JZGE..JZS175 |
90917-06046 |
from US $10.39 |
||
|
17420
|
17420
17420-46460 Pipe Assy, Exhaust, Center[09.1999 - 12.2000] 2JZGE..JZS175 |
17420-46460 |
US $326.14 |
||
|
17420
|
17420
17420-46530 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [12.2000 - 08.2001] 2JZGE..JZS175 |
17420-46530 |
US $623.17 |
||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[09.1999 - 08.2001] 2JZGE..JZS175 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17430-46520 Pipe Assy, Exhaust, Tail[09.1999 - 08.2001] 2JZGE..JZS175 |
17430-46520 |
US $532.90 |
||
| replacement | |||||
|
17430
|
17430
17430-46530 Pipe Assy, Exhaust, Tail[09.1999 - 08.2001] 2JZGE..JZS175 |
17430-46530 |
US $617.76 |
||
|
17430D
|
17430D
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[09.1999 - 08.2001] 2JZGE..JZS175 |
90301-36001 |
US $10.57 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[09.1999 - 08.2001] 2JZGE..JZS175 |
90917-06076 |
from US $6.27 |
||
|
17506A
|
17506A
17506-46210 Bracket Sub-Assy, Exhaust Pipe No.1 Support[09.1999 - 08.2001] 2JZGE..JZS175 |
17506-46210 |
US $44.55 |
||
|
17508A
|
17508A
17508-46060 Support Sub-Assy, Exhaust Pipe, No.3[11.2000 - 08.2001] 2JZGE..JZS175 |
17508-46060 |
US $26.18 |
||
|
17508A
|
17508A
17508-50010
Support Sub-Assy, Exhaust Pipe, No.3
[09.1999 - 11.2000] 2JZGE..JZS175 |
17508-50010 |
— | ||
| replacement | |||||
|
17508A
|
17508A
17508-46060 Support Sub-Assy, Exhaust Pipe, No.3[09.1999 - 11.2000] 2JZGE..JZS175 |
17508-46060 |
US $26.18 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[09.1999 - 08.2001] 2JZGE..JZS175 |
17565-11160 |
US $17.56 |
||
|
17581B
|
17581B
17581-46010 Damper, Exhaust Pipe[09.1999 - 08.2001] 2JZGE..JZS175 |
17581-46010 |
US $45.62 |
||
|
18439
|
18439
18495-46020 Retainer, Exhaust Pipe[09.1999 - 08.2001] 2JZGE..JZS175 |
18495-46020 |
US $11.29 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.33 |
||
|
9017710001
|
9017710001
90177-10001 NUT LOCK |
90177-10001 |
US $3.23 |
||
|
9151581035
|
9151581035
91515-81035 New Genuine Part |
91515-81035 |
US $3.40 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
US $1.61 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
US $1.79 |
||
