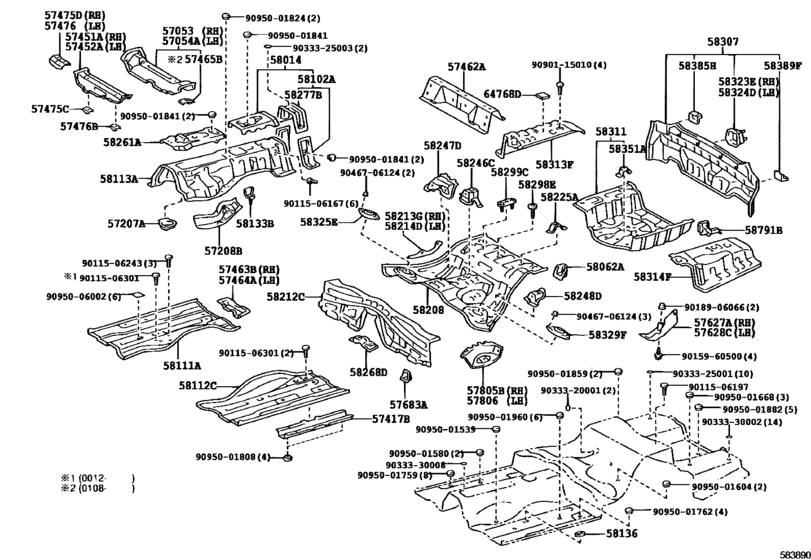

Floor Pan & Lower Back Panel ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57053
|
57053
57053-30040 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[09.1999 - 08.2001] JZS175 |
57053-30040 |
US $82.99 |
||
|
57054A
|
57054A
57054-30030 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[09.1999 - 08.2001] JZS175 |
57054-30030 |
US $82.99 |
||
|
57207A
|
57207A
57207-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Rh[09.1999 - 08.2001] JZS175 |
57207-51010 |
US $35.53 |
||
|
57208B
|
57208B
57208-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Lh[09.1999 - 08.2001] JZS175 |
57208-51010 |
US $35.53 |
||
|
57417B
|
57417B
57417-51010 Reinforcement, Front Floor Under[09.1999 - 08.2001] JZS175 |
57417-51010 |
US $57.51 |
||
|
57451A
|
57451A
57451-30070 Member, Front Floor Cross, Rh[09.1999 - 08.2001] JZS175 |
57451-30070 |
US $85.90 |
||
|
57452A
|
57452A
57452-30070 Member, Front Floor Cross, No.2[09.1999 - 08.2001] JZS175 |
57452-30070 |
US $85.90 |
||
|
57462A
|
57462A
57405-30010 Member, Center Floor Cross, No.2[09.1999 - 08.2001] JZS175 |
57405-30010 |
US $138.32 |
||
|
57463B
|
57463B
57463-51010 Reinforcement, Center Floor Crossmember[09.1999 - 08.2001] JZS175 |
57463-51010 |
US $27.81 |
||
|
57464A
|
57464A
57464-51010 Strength, Center Floor Crossmember[09.1999 - 08.2001] JZS175 |
57464-51010 |
US $27.81 |
||
|
57465B
|
57465B
57465-30040 Bracket, Front Seat, Inner[08.2001 - 12.2003] JZS175 RH |
57465-30040 |
US $5.97 |
||
|
57465B
|
57465B
57466-30040 Bracket, Front Seat, Inner[08.2001 - 12.2003] JZS175 LH |
57466-30040 |
US $5.97 |
||
|
57475C
|
57475C
57475-22020 Plate, Front Floor Crossmember[09.1999 - 08.2001] JZS175 |
57475-22020 |
US $5.97 |
||
|
57475D
|
57475D
57475-30040 Plate, Front Floor Crossmember, Rh[09.1999 - 08.2001] JZS175 |
57475-30040 |
US $17.47 |
||
|
57476
|
57476
57476-30030 Plate, Front Floor Crossmember, Lh[09.1999 - 08.2001] JZS175 |
57476-30030 |
US $17.47 |
||
|
57476B
|
57476B
57475-22020 Plate, Front Floor Crossmember[09.1999 - 08.2001] JZS175 |
57475-22020 |
US $5.97 |
||
|
57627A
|
57627A
57627-51010 Cover, Rear Floor Side Member, Rh[09.1999 - 08.2001] JZS175 |
57627-51010 |
US $35.38 |
||
|
57628C
|
57628C
57628-51010 Cover, Rear Floor Side Member, Lh[09.1999 - 08.2001] JZS175 |
57628-51010 |
US $35.38 |
||
|
57683A
|
57683A
57683-51010 Bracket, Fuel Tank Mounting, No.1[09.1999 - 08.2001] JZS175 |
57683-51010 |
US $23.88 |
||
|
57805B
|
57805B
57805-51010 Reinforcement Sub-Assy, Belt Anchor, Rh[09.1999 - 12.2000] JZS175 |
57805-51010 |
US $53 |
||
| replacement | |||||
|
57805B
|
57805B
57805-51011 Reinforcement Sub-Assy, Belt Anchor, Rh[09.1999 - 12.2000] JZS175 |
57805-51011 |
US $33.20 |
||
|
57805B
|
57805B
57805-51011 Reinforcement Sub-Assy, Belt Anchor, Rh[12.2000 - 08.2001] JZS175 |
57805-51011 |
US $33.20 |
||
|
57805B
|
57805B
57805-53011 Reinforcement Sub-Assy, Belt Anchor, Rh[08.2001 - 12.2003] JZS175 |
57805-53011 |
US $52.85 |
||
| replacement | |||||
|
57805B
|
57805B
57805-53012 Reinforcement Sub-Assy, Belt Anchor, Rh[08.2001 - 12.2003] JZS175 |
57805-53012 |
US $53 |
||
|
57806
|
57806
57806-51010 Reinforcement Sub-Assy, Belt Anchor, Lh[09.1999 - 12.2000] JZS175 |
57806-51010 |
US $53 |
||
| replacement | |||||
|
57806
|
57806
57806-51011 Reinforcement Sub-Assy, Belt Anchor, Lh[09.1999 - 12.2000] JZS175 |
57806-51011 |
US $33.20 |
||
|
57806
|
57806
57806-51011 Reinforcement Sub-Assy, Belt Anchor, Lh[12.2000 - 08.2001] JZS175 |
57806-51011 |
US $33.20 |
||
|
57806
|
57806
57806-53011 Reinforcement Sub-Assy, Belt Anchor, Lh[08.2001 - 12.2003] JZS175 |
57806-53011 |
US $52.85 |
||
| replacement | |||||
|
57806
|
57806
57806-53012 Reinforcement Sub-Assy, Belt Anchor, Lh[08.2001 - 12.2003] JZS175 |
57806-53012 |
US $53 |
||
|
58014
|
58014
58014-51010 Panel Sub-Assy, Front Floor, Rear Lower[09.1999 - 08.2001] JZS175 |
58014-51010 |
US $120.85 |
||
|
58062A
|
58062A
58062-30010 Bracket Sub-Assy, Fuel Tank Mounting, Rear[09.1999 - 08.2001] JZS175 |
58062-30010 |
US $21.69 |
||
|
58102A
|
58102A
58102-51010 Reinforcement Sub-Assy, Front Floor[12.2000 - 08.2001] JZS175 |
58102-51010 |
US $64.36 |
||
|
58111A
|
58111A
58111-30400 Pan, Front Floor[09.1999 - 12.2000] JZS175 |
58111-30400 |
US $315.95 |
||
| replacement | |||||
|
58111A
|
58111A
58111-30401 Pan, Front Floor[09.1999 - 12.2000] JZS175 |
58111-30401 |
US $314.50 |
||
|
58111A
|
58111A
58111-30440 Pan, Front Floor, Rh[12.2000 - 01.2001] JZS175 |
58111-30440 |
US $315.95 |
||
| replacement | |||||
|
58111A
|
58111A
58111-30441 Pan, Front Floor, Rh[12.2000 - 01.2001] JZS175 |
58111-30441 |
US $315.95 |
||
|
58111A
|
58111A
58111-30441 Pan, Front Floor, Rh[01.2001 - 08.2001] JZS175 |
58111-30441 |
US $315.95 |
||
|
58112C
|
58112C
58112-30080 Panel, Front Floor, Lh[09.1999 - 01.2001] JZS175 |
58112-30080 |
US $315.95 |
||
| replacement | |||||
|
58112C
|
58112C
58112-30081 Panel, Front Floor, Lh[09.1999 - 01.2001] JZS175 |
58112-30081 |
US $314.50 |
||
|
58112C
|
58112C
58112-30081 Panel, Front Floor, Lh[01.2001 - 08.2001] JZS175 |
58112-30081 |
US $314.50 |
||
|
58113A
|
58113A
58113-30130 Panel, Front Floor, Center[09.1999 - 08.2000] JZS175 |
58113-30130 |
US $380.02 |
||
| replacement | |||||
|
58113A
|
58113A
58113-30131 Panel, Front Floor, Center[09.1999 - 08.2000] JZS175 |
58113-30131 |
US $380.02 |
||
|
58113A
|
58113A
58113-30131 Panel, Front Floor, Center[08.2000 - 08.2001] JZS175 |
58113-30131 |
US $380.02 |
||
|
58133B
|
58133B
58133-51010 Bracket, Front Floor Heat Insulator, No.3[09.1999 - 08.2001] JZS175 |
58133-51010 |
US $5.97 |
||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[09.1999 - 08.2001] JZS175 |
58136-51010 |
US $2.04 |
||
|
58208
|
58208
58211-30290 Pan, Center Floor[09.1999 - 12.2000] JZS175 W(REAR COOLER) |
58211-30290 |
US $381.47 |
||
| replacements | |||||
|
58208
|
58208
57805-51011 Reinforcement Sub-Assy, Belt Anchor, Rh[09.1999 - 12.2000] JZS175 W(REAR COOLER) |
57805-51011 |
US $33.20 |
||
|
58208
|
58208
57806-51011 Reinforcement Sub-Assy, Belt Anchor, Lh[09.1999 - 12.2000] JZS175 W(REAR COOLER) |
57806-51011 |
US $33.20 |
||
|
58208
|
58208
58211-30291 Pan, Center Floor[09.1999 - 12.2000] JZS175 W(REAR COOLER) |
58211-30291 |
US $380.02 |
||
|
58208
|
58208
58211-30291 Pan, Center Floor[12.2000 - 08.2001] JZS175 W(REAR COOLER) |
58211-30291 |
US $380.02 |
||
|
58208
|
58208
58211-51901 Pan, Center Floor[09.1999 - 12.2000] JZS175 |
58211-51901 |
US $380.02 |
||
| replacements | |||||
|
58208
|
58208
57805-53012 Reinforcement Sub-Assy, Belt Anchor, Rh[09.1999 - 12.2000] JZS175 |
57805-53012 |
US $53 |
||
|
58208
|
58208
58211-51902 Pan, Center Floor[09.1999 - 12.2000] JZS175 |
58211-51902 |
US $382.93 |
||
|
58208
|
58208
58211-51902 Pan, Center Floor[08.2001 - 12.2003] JZS175 |
58211-51902 |
US $382.93 |
||
|
58212C
|
58212C
58212-51010 Pan, Center Floor, Front[09.1999 - 08.2001] JZS175 |
58212-51010 |
US $187.82 |
||
|
58213G
|
58213G
58213-51011 Reinforcement, Center Floor Panel, No.1 Rh[09.1999 - 08.2001] JZS175 |
58213-51011 |
US $7.72 |
||
|
58214D
|
58214D
58214-51011 Reinforcement, Center Floor Panel, No.1 Lh[09.1999 - 08.2001] JZS175 |
58214-51011 |
US $7.72 |
||
|
58225A
|
58225A
58225-30060 Bracket, Center Mounting[09.1999 - 08.2001] JZS175 |
58225-30060 |
US $5.39 |
||
|
58246C
|
58246C
58246-30010
Bracket, Rear Seat Hinge, Center No.2
[09.1999 - 08.2001] JZS175 |
58246-30010 |
— | ||
|
58247D
|
58247D
58247-30010
Bracket, Rear Seat Hinge, Outer Rh
[09.1999 - 08.2001] JZS175 |
58247-30010 |
— | ||
|
58248D
|
58248D
58248-30020
Bracket, Rear Seat Hinge, Outer Lh
[03.2003 - 12.2003] JZS175 |
58248-30020 |
— | ||
|
58261A
|
58261A
58261-30180 Cover, Transmission[09.1999 - 08.2001] JZS175 |
58261-30180 |
US $90.27 |
||
|
58268D
|
58268D
58268-51011 Reinforcement, Parking Brake Cable, No.3[09.1999 - 08.2001] JZS175 |
58268-51011 |
US $18.05 |
||
|
58277B
|
58277B
58209-51010 Reinforcement Sub-Assy, Drive Shaft Center Support[09.1999 - 08.2001] JZS175 |
58209-51010 |
US $43.39 |
||
|
58298E
|
58298E
58298-30030 Bracket, Hot Air Intake, No.1[09.1999 - 08.2001] JZS175 |
58298-30030 |
US $4.80 |
||
|
58299C
|
58299C
58299-30010 Bracket, Hot Air Intake, No.2[09.1999 - 08.2001] JZS175 |
58299-30010 |
US $9.03 |
||
|
58307
|
58307
58307-30710 Panel Sub-Assy, Body Lower Back[09.1999 - 08.2001] JZS175 |
58307-30710 |
US $269.36 |
||
|
58311
|
58311
58311-30905
Pan, Rear Floor
[09.1999 - 08.2001] JZS175 |
58311-30905 |
— | ||
|
58313F
|
58313F
58313-30160 Extension, Rear Floor Pan To Quarter Panel, Rh[09.1999 - 08.2001] JZS175 |
58313-30160 |
US $72.80 |
||
|
58314F
|
58314F
58314-30160
Extension, Rear Floor Pan To Quarter Panel, Lh
[09.1999 - 08.2001] JZS175 |
58314-30160 |
— | ||
|
58323E
|
58323E
58323-30040 Reinforcement, Rear Bumper Arm Support, Rh[09.1999 - 08.2001] JZS175 |
58323-30040 |
US $19.51 |
||
|
58324D
|
58324D
58324-30020 Reinforcement, Rear Bumper Arm Support, Lh[09.1999 - 08.2001] JZS175 |
58324-30020 |
US $22.57 |
||
|
58325E
|
58325E
58325-30010 Cover, Rear Floor Service Hole[09.1999 - 08.2001] JZS175 |
58325-30010 |
US $9.32 |
||
|
58329F
|
58329F
58329-30020 Cover, Rear Floor Service Hole, No.2[09.1999 - 08.2001] JZS175 |
58329-30020 |
US $17.76 |
||
|
58351A
|
58351A
58351-53010 Bracket Sub-Assy, Spare Wheel Clamp[09.1999 - 08.2001] JZS175 |
58351-53010 |
US $9.90 |
||
|
58385H
|
58385H
58385-53010 Bracket, Rear Bumper Cover[09.1999 - 08.2001] JZS175 |
58385-53010 |
US $6.29 |
||
|
58389F
|
58389F
58389-30020 Bracket, Lower Back Cover[09.1999 - 08.2001] JZS175 |
58389-30020 |
US $3.20 |
||
|
58791B
|
58791B
58791-30030 Carrier, Jack[09.1999 - 08.2001] JZS175 |
58791-30030 |
US $14.71 |
||
|
64768D
|
64768D
64768-30010 Stopper, Jack Cover[09.1999 - 08.2001] JZS175 |
64768-30010 |
US $9.32 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.25 |
||
|
9011506197
|
9011506197
90115-06197 New Genuine Part |
90115-06197 |
US $0.73 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.43 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $1.08 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.68 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.68 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.18 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.25 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.25 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046706124
|
9046706124
90467-06124 New Genuine Part |
90467-06124 |
US $3.58 |
||
|
9090115010
|
9090115010
90901-15010 New Genuine Part |
90901-15010 |
US $4.95 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.33 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $4.12 |
||
|
9095001604
|
9095001604
90950-01604 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01604 |
US $1.97 |
||
|
9095001668
|
9095001668
90950-01668 New Genuine Part |
90950-01668 |
US $0.79 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.03 |
||
|
9095001762
|
9095001762
90950-01762 New Genuine Part |
90950-01762 |
US $1.97 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
US $1.97 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.92 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.94 |
||
|
9095001859
|
9095001859
90950-01859 PLUG HOLE |
90950-01859 |
US $3.05 |
||
|
9095001882
|
9095001882
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9095001960
|
9095001960
90950-01960 Plug, Hole(For Floor Panel) |
90950-01960 |
from US $2.15 |
||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $1.08 |
||
