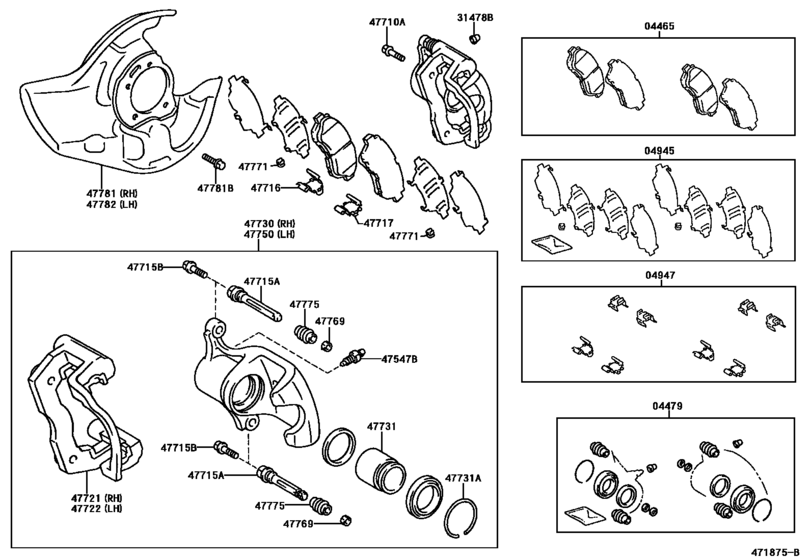

Front Disc Brake Caliper & Dust Cover ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-30280
Pad Kit, Disc Brake, Front
[09.1999 - 08.2001] JZS175 MARK NBK PN529H |
04465-30280 |
— | ||
| replacement | |||||
|
04465
|
04465
04465-30300 Pad Kit, Disc Brake, Front[09.1999 - 08.2001] JZS175 MARK NBK PN529H |
04465-30300 |
from US $93.39 |
||
|
04465
|
04465
04465-30300 Pad Kit, Disc Brake, Front[01.2002 - 12.2003] JZS175 MARK NBK PN529H |
04465-30300 |
from US $93.39 |
||
|
04479
|
04479
04478-30250 Cylinder Kit, Disc Brake, Front[01.2002 - 12.2003] JZS175 |
04478-30250 |
from US $43.59 |
||
|
04479
|
04479
04479-30150 Cylinder Kit, Disc Brake, Front[09.1999 - 01.2001] JZS175 |
04479-30150 |
US $33.20 |
||
| replacement | |||||
|
04479
|
04479
04478-30250 Cylinder Kit, Disc Brake, Front[09.1999 - 01.2001] JZS175 |
04478-30250 |
from US $43.59 |
||
|
04479
|
04479
04479-30151 Cylinder Kit, Disc Brake, Front[01.2001 - 08.2001] JZS175 |
04479-30151 |
US $28.83 |
||
| replacement | |||||
|
04479
|
04479
04478-30250 Cylinder Kit, Disc Brake, Front[01.2001 - 08.2001] JZS175 |
04478-30250 |
from US $43.59 |
||
|
04945
|
04945
04945-30160 Shim Kit, Anti Squeal, Front[09.1999 - 08.2001] JZS175 |
04945-30160 |
US $40.33 |
||
| replacement | |||||
|
04945
|
04945
04945-30170 Shim Kit, Anti Squeal, Front[09.1999 - 08.2001] JZS175 |
04945-30170 |
from US $39.92 |
||
|
04945
|
04945
04945-30170 Shim Kit, Anti Squeal, Front[01.2002 - 12.2003] JZS175 |
04945-30170 |
from US $39.92 |
||
|
04947
|
04947
04947-30130 Fitting Kit, Disc Brake, Front[09.1999 - 08.2001] JZS175 |
04947-30130 |
US $22.42 |
||
| replacement | |||||
|
04947
|
04947
04947-30131 Fitting Kit, Disc Brake, Front[09.1999 - 08.2001] JZS175 |
04947-30131 |
US $28.06 |
||
|
04947
|
04947
04947-30131 Fitting Kit, Disc Brake, Front[08.2001 - 12.2003] JZS175 |
04947-30131 |
US $28.06 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[09.1999 - 08.2001] JZS175 |
31478-30010 |
from US $1.43 |
||
|
47547B
|
47547B
47547-27030 Plug, Bleeder(For Front Disc Brake)[09.1999 - 08.2001] JZS175 |
47547-27030 |
from US $3.02 |
||
|
47710A
|
47710A
90105-12228 Bolt (For Transfer & Transaxle Setting)[09.1999 - 08.2001] JZS175 *12-1.25PX32-24 |
90105-12228 |
from US $1.27 |
||
|
47715A
|
47715A
47715-22070 Pin, Front Disc Brake Cylinder Slide[09.1999 - 08.2001] JZS175 |
47715-22070 |
from US $5.80 |
||
| replacement | |||||
|
47715A
|
47715A
47715220701
Pin, Cylinder Slide
[09.1999 - 08.2001] JZS175 |
47715220701 |
— | ||
|
47715B
|
47715B
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[09.1999 - 08.2001] JZS175 |
90105-08164 |
from US $0.89 |
||
|
47716
|
47716
47716-30140 Plate, Pad Support, No.1(For Front Disc Brake)[09.1999 - 08.2001] JZS175 |
47716-30140 |
US $5.82 |
||
|
47717
|
47717
47717-30130 Plate, Pad Support, No.2(For Front Disc Brake)[09.1999 - 08.2001] JZS175 |
47717-30130 |
US $5.82 |
||
| replacement | |||||
|
47717
|
47717
47717-51010
Plate, Pad Support, No.2(For Front Disc Brake)
[09.1999 - 08.2001] JZS175 |
47717-51010 |
— | ||
|
47717
|
47717
47717-51010
Plate, Pad Support, No.2(For Front Disc Brake)
[08.2001 - 12.2003] JZS175 |
47717-51010 |
— | ||
|
47721
|
47721
47721-30210 Mounting, Front Disc Brake Cylinder, Rh[09.1999 - 08.2001] JZS175 |
47721-30210 |
US $113.57 |
||
| replacement | |||||
|
47721
|
47721
47721-30211 Mounting, Front Disc Brake Cylinder, Rh[09.1999 - 08.2001] JZS175 |
47721-30211 |
US $102.96 |
||
|
47721
|
47721
47721-30211 Mounting, Front Disc Brake Cylinder, Rh[09.2002 - 12.2003] JZS175 |
47721-30211 |
US $102.96 |
||
|
47722
|
47722
47722-30110 Mounting, Front Disc Brake Cylinder, Lh[09.1999 - 08.2001] JZS175 |
47722-30110 |
US $113.57 |
||
| replacement | |||||
|
47722
|
47722
47722-30111 Mounting, Front Disc Brake Cylinder, Lh[09.1999 - 08.2001] JZS175 |
47722-30111 |
US $113.57 |
||
|
47722
|
47722
47722-30111 Mounting, Front Disc Brake Cylinder, Lh[09.2002 - 12.2003] JZS175 |
47722-30111 |
US $113.57 |
||
|
47730
|
47730
47730-30440 Cylinder Assy, Front Disc Brake, Rh[09.1999 - 08.2001] JZS175 |
47730-30440 |
US $737.88 |
||
|
47731
|
47731
47731-33070
Piston, Front Disc Brake
[09.1999 - 08.2001] JZS175 |
47731-33070 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-30570 PISTON DISC BRAKE[09.1999 - 08.2001] JZS175 |
47731-30570 |
US $44.18 |
||
|
47731A
|
47731A
90520-86005 Ring, Set(For Front Disc Brake Piston)[09.1999 - 08.2001] JZS175 |
90520-86005 |
US $2.48 |
||
|
47750
|
47750
47750-30440 Cylinder Assy, Disc Brake, Lh[09.1999 - 08.2001] JZS175 |
47750-30440 |
US $737.88 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[09.1999 - 08.2001] JZS175 T=4.8 |
47769-50010 |
from US $0.72 |
||
|
47769
|
47769
47769-50020 Bush, Cylinder Slide, No.1(For Front Disc Brake)[09.1999 - 08.2001] JZS175 T=4.1 |
47769-50020 |
from US $0.87 |
||
|
47771
|
47771
47771-30090 Plate, Pad Wear Indicator, No.1[09.1999 - 08.2001] JZS175 |
47771-30090 |
from US $1.39 |
||
|
47775
|
47775
47775-30070
Boot, Bush Dust(For Front Disc Brake)
[09.1999 - 08.2001] JZS175 |
47775-30070 |
— | ||
| replacement | |||||
|
47775
|
47775
47775-50010 Boot, Bush Dust(For Front Disc Brake)[09.1999 - 08.2001] JZS175 |
47775-50010 |
from US $2.19 |
||
|
47781
|
47781
47781-22161 Cover, Disc Brake Dust, Front Rh[09.1999 - 09.2000] JZS175 |
47781-22161 |
US $26.50 |
||
| replacement | |||||
|
47781
|
47781
47781-22162 Cover, Disc Brake Dust, Front Rh[09.1999 - 09.2000] JZS175 |
47781-22162 |
US $26.03 |
||
|
47781
|
47781
47781-22162 Cover, Disc Brake Dust, Front Rh[09.2000 - 08.2001] JZS175 |
47781-22162 |
US $26.03 |
||
|
47781B
|
47781B
90148-60028 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[09.1999 - 08.2001] JZS175 *6-1.0PX14-10.5 |
90148-60028 |
US $3.58 |
||
|
47782
|
47782
47782-22161
Cover, Disc Brake Dust, Front Lh
[09.1999 - 09.2000] JZS175 |
47782-22161 |
— | ||
| replacement | |||||
|
47782
|
47782
47782-22162 Cover, Disc Brake Dust, Front Lh[09.1999 - 09.2000] JZS175 |
47782-22162 |
US $26.03 |
||
|
47782
|
47782
47782-22162 Cover, Disc Brake Dust, Front Lh[09.2000 - 08.2001] JZS175 |
47782-22162 |
US $26.03 |
||
