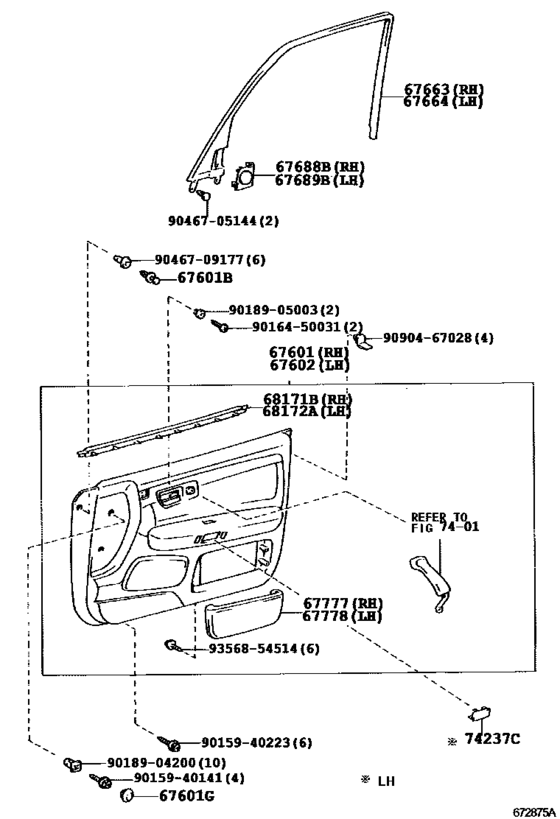

Front Door Panel & Glass ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-3F780-A0 Board Sub-Assy, Front Door Trim, Rh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-3F780-A0 |
US $1,045.41 |
||
|
67601
|
67601
67610-3F780-B0 Board Sub-Assy, Front Door Trim, Rh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE B-*104,MD.CHARCOAL,TRIM1# |
67610-3F780-B0 |
US $1,045.41 |
||
|
67601
|
67601
67610-3F810-A0 Board Sub-Assy, Front Door Trim, Rh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-3F810-A0 |
US $1,718.08 |
||
|
67601B
|
67601B
90467-07066-A0 Clip(For Panel, Instrument Cluster Finish)[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
90467-07066-A0 |
from US $0.95 |
||
|
67601B
|
67601B
90467-07066-B8 Clip(For Door Trim)[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
90467-07066-B8 |
US $2.15 |
||
|
67601G
|
67601G
90950-01800-A1 Plug, Hole(For Front Door Trim Board)[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
90950-01800-A1 |
from US $3.08 |
||
|
67601G
|
67601G
90950-01800-B8 Plug, Hole(For Front Door Trim Board)[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
90950-01800-B8 |
US $3.20 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01800-B9 Plug, Hole(For Front Door Trim Board)[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
90950-01800-B9 |
from US $3.44 |
||
|
67602
|
67602
67620-3F390-A0 Board Sub-Assy, Front Door Trim, Lh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-3F390-A0 |
US $1,045.41 |
||
|
67602
|
67602
67620-3F390-B0 Board Sub-Assy, Front Door Trim, Lh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE B-*104,MD.CHARCOAL,TRIM1# |
67620-3F390-B0 |
US $1,045.41 |
||
|
67602
|
67602
67620-3K120-A0 Board Sub-Assy, Front Door Trim, Lh[09.1999 - 08.2001] JZS175 DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-3K120-A0 |
US $1,718.08 |
||
|
67663
|
67663
67663-30040 Garnish, Door Frame, Upper Rh[09.1999 - 08.2001] JZS175 |
67663-30040 |
US $66.25 |
||
|
67664
|
67664
67664-30040 Garnish, Door Frame, Upper Lh[09.1999 - 08.2001] JZS175 |
67664-30040 |
US $66.25 |
||
|
67688B
|
67688B
67688-30040 Grille, Speaker Door, No.2 Rh[09.1999 - 08.2001] JZS175 |
67688-30040 |
US $16.02 |
||
|
67689B
|
67689B
67689-30030 Grille, Speaker Door, No.2 Lh[09.1999 - 08.2001] JZS175 |
67689-30030 |
US $16.02 |
||
|
67777
|
67777
67770-30110-A0 Pocket, Front Door Trim, Rh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
67770-30110-A0 |
US $112.11 |
||
|
67777
|
67777
67770-30110-B1 Pocket, Front Door Trim, Rh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
67770-30110-B1 |
US $112.11 |
||
|
67778
|
67778
67780-30110-A0 Pocket, Front Door Trim, Lh[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
67780-30110-A0 |
US $112.11 |
||
|
67778
|
67778
67780-30110-B1 Pocket, Front Door Trim, Lh[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
67780-30110-B1 |
US $112.11 |
||
|
68171B
|
68171B
68171-30140 Weatherstrip, Front Door Glass, Inner Rh[09.1999 - 08.2001] JZS175 |
68171-30140 |
US $61.88 |
||
|
68172A
|
68172A
68172-30110 Weatherstrip, Front Door Glass, Inner Lh[09.1999 - 08.2001] JZS175 |
68172-30110 |
US $61.88 |
||
|
74237C
|
74237C
74237-30030-A0 Cap, Front Door Armrest Base[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
74237-30030-A0 |
US $2.62 |
||
| replacement | |||||
|
74237C
|
74237C
74237-30030-B4 Cap, Rear Door Armrest Base[09.1999 - 08.2001] JZS175 IVORY,TRIM0# |
74237-30030-B4 |
US $1.46 |
||
|
74237C
|
74237C
74237-30030-B3 Cap, Front Door Armrest Base[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
74237-30030-B3 |
US $2.62 |
||
| replacement | |||||
|
74237C
|
74237C
74237-30030-B4 Cap, Rear Door Armrest Base[09.1999 - 08.2001] JZS175 MD.CHARCOAL,TRIM1# |
74237-30030-B4 |
US $1.46 |
||
|
9015940141
|
9015940141
90159-40141 SCREW |
90159-40141 |
from US $1.54 |
||
|
9015940223
|
9015940223
90159-40223 SCREW WWASHER |
90159-40223 |
from US $0.68 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.63 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.65 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.10 |
||
|
9046705144
|
9046705144
90467-05144 New Genuine Part |
90467-05144 |
US $2.33 |
||
|
9046709177
|
9046709177
90467-09177 CLIP |
90467-09177 |
from US $0.89 |
||
|
9090467028
|
9090467028
90904-67028 New Genuine Part |
90904-67028 |
US $5.73 |
||
|
9356854514
|
9356854514
93568-54514 New Genuine Part |
93568-54514 |
US $1.97 |
||
