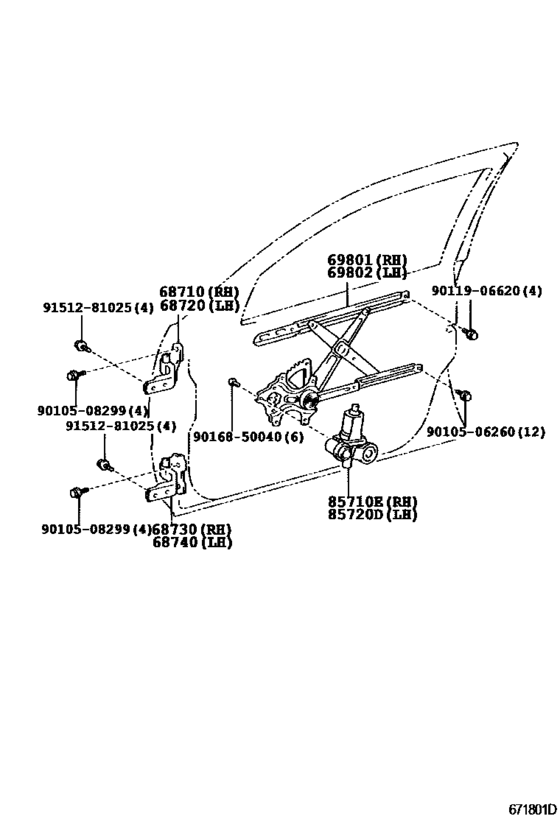

Front Door Window Regulator & Hinge ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-30180
Hinge Assy, Front Door, Upper Rh
[09.1999 - 08.2001] JZS175 |
68710-30180 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-30181 Hinge Assy, Front Door, Upper Rh[09.1999 - 08.2001] JZS175 |
68710-30181 |
US $44.76 |
||
|
68720
|
68720
68720-30100
Hinge Assy, Front Door, Upper Lh
[09.1999 - 08.2001] JZS175 |
68720-30100 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-30101 Hinge Assy, Front Door, Upper Lh[09.1999 - 08.2001] JZS175 |
68720-30101 |
US $44.76 |
||
|
68730
|
68730
68730-30150 Hinge Assy, Front Door, Lower Rh[09.1999 - 08.2001] JZS175 |
68730-30150 |
US $44.93 |
||
|
68740
|
68740
68730-30150 Hinge Assy, Front Door, Lower Rh[09.1999 - 08.2001] JZS175 |
68730-30150 |
US $44.93 |
||
|
69801
|
69801
69801-30250 Regulator Sub-Assy, Front Door Window, Rh[09.1999 - 08.2001] JZS175 |
69801-30250 |
US $123 |
||
|
69802
|
69802
69802-30250 Regulator Sub-Assy, Front Door Window, Lh[09.1999 - 08.2001] JZS175 |
69802-30250 |
US $100.46 |
||
|
85710E
|
85710E
85710-30360 Motor Assy, Power Window Regulator, Rh[09.1999 - 08.2001] JZS175 |
85710-30360 |
US $324.74 |
||
|
85720D
|
85720D
85720-30270 Motor Assy, Power Window Regulator, Rh[09.1999 - 08.2001] JZS175 |
85720-30270 |
US $343.62 |
||
|
85720D
|
85720D
85720-30300 Motor Assy, Power Window Regulator, Lh[08.2001 - 12.2003] JZS175 |
85720-30300 |
US $343.62 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508299
|
9010508299
90105-08299 New Genuine Part |
90105-08299 |
US $2.87 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $2.15 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.10 |
||
