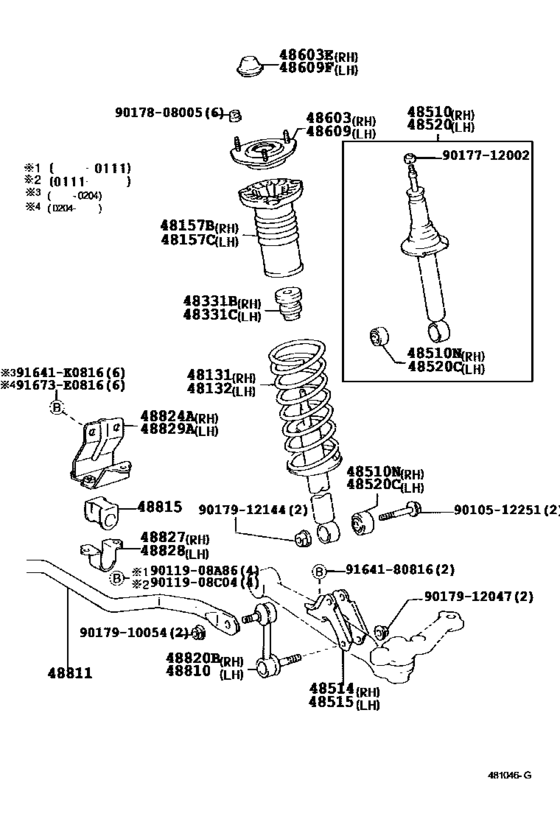

Front Spring & Shock Absorber ([09.1999 - 12.2003] (9909-0312)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-3A380
Spring, Front Coil, Rh
[09.1999 - 08.2001] JZS175 |
48131-3A380 |
— | ||
|
48132
|
48132
48131-3A380
Spring, Front Coil, Rh
[09.1999 - 08.2001] JZS175 |
48131-3A380 |
— | ||
|
48157B
|
48157B
48157-22040 Insulator, Front Coil Spring, Upper Rh[09.1999 - 08.2001] JZS175 |
48157-22040 |
from US $28.84 |
||
|
48157C
|
48157C
48157-22040 Insulator, Front Coil Spring, Upper Rh[09.1999 - 08.2001] JZS175 |
48157-22040 |
from US $28.84 |
||
|
48331B
|
48331B
48331-30130 Bumper, Front Spring, Rh[09.1999 - 08.2001] JZS175 |
48331-30130 |
from US $17.27 |
||
|
48331C
|
48331C
48331-30130 Bumper, Front Spring, Rh[09.1999 - 08.2001] JZS175 |
48331-30130 |
from US $17.27 |
||
|
48510
|
48510
48510-39855 Absorber Assy, Shock, Front Rh[09.1999 - 08.2001] JZS175 MARK 48510-30390 |
48510-39855 |
US $310.13 |
||
| replacement | |||||
|
48510
|
48510
48510-39325 Absorber Assy, Shock, Front Rh[09.1999 - 08.2001] JZS175 MARK 48510-30390 |
48510-39325 |
US $361.92 |
||
|
48510N
|
48510N
90389-12016 Bush(For Front Shock Absorber)[09.1999 - 08.2001] JZS175 |
90389-12016 |
from US $16.13 |
||
|
48514
|
48514
48514-22010 Bracket, Front Shock Absorber, Lower Rh[09.1999 - 08.2001] JZS175 |
48514-22010 |
US $30.24 |
||
|
48515
|
48515
48515-22010 Bracket, Front Shock Absorber, Lower Lh[09.1999 - 08.2001] JZS175 |
48515-22010 |
US $30.24 |
||
|
48520
|
48520
48510-39855 Absorber Assy, Shock, Front Rh[09.1999 - 08.2001] JZS175 MARK 48510-30390 |
48510-39855 |
US $310.13 |
||
| replacement | |||||
|
48520
|
48520
48510-39325 Absorber Assy, Shock, Front Rh[09.1999 - 08.2001] JZS175 MARK 48510-30390 |
48510-39325 |
US $361.92 |
||
|
48520C
|
48520C
90389-12016 Bush(For Front Shock Absorber)[09.1999 - 08.2001] JZS175 |
90389-12016 |
from US $16.13 |
||
|
48603
|
48603
48680-30150 Support Sub-Assy, Front Suspension, Rh[09.1999 - 08.2001] JZS175 |
48680-30150 |
US $88.56 |
||
|
48603E
|
48603E
90950-01659 Plug, Hole(For Front Suspension Support)[09.1999 - 08.2001] JZS175 |
90950-01659 |
from US $3.88 |
||
|
48609
|
48609
48680-30150 Support Sub-Assy, Front Suspension, Rh[09.1999 - 08.2001] JZS175 |
48680-30150 |
US $88.56 |
||
|
48609F
|
48609F
90950-01659 Plug, Hole(For Front Suspension Support)[09.1999 - 08.2001] JZS175 |
90950-01659 |
from US $3.88 |
||
|
48810
|
48810
48820-22041 Link Assy, Front Stabilizer[09.1999 - 08.2001] JZS175 |
48820-22041 |
from US $69.05 |
||
|
48811
|
48811
48811-30570 Bar, Stabilizer, Front[09.1999 - 08.2001] JZS175 |
48811-30570 |
US $206.75 |
||
|
48815
|
48815
48815-30470 Bush, Front Stabilizer Bar, No.1[09.1999 - 08.2001] JZS175 |
48815-30470 |
from US $11.84 |
||
|
48820B
|
48820B
48820-22041 Link Assy, Front Stabilizer[09.1999 - 08.2001] JZS175 |
48820-22041 |
from US $69.05 |
||
|
48824A
|
48824A
48809-30020 Bracket, Front Stabilizer, No.1 Rh[09.1999 - 08.2001] JZS175 |
48809-30020 |
US $17.91 |
||
| replacement | |||||
|
48824A
|
48824A
48809-30021 Bracket, Front Stabilizer, No.1 Rh[09.1999 - 08.2001] JZS175 |
48809-30021 |
US $22.34 |
||
|
48824A
|
48824A
48809-30021 Bracket, Front Stabilizer, No.1 Rh[11.2001 - 12.2003] JZS175 |
48809-30021 |
US $22.34 |
||
|
48827
|
48827
48824-22090 Bracket, Front Stabilizer, No.2 Rh[09.1999 - 08.2001] JZS175 |
48824-22090 |
US $15.05 |
||
|
48828
|
48828
48824-22090 Bracket, Front Stabilizer, No.2 Rh[09.1999 - 08.2001] JZS175 |
48824-22090 |
US $15.05 |
||
|
48829A
|
48829A
48809-30030 Bracket, Front Stabilizer, No.1 Lh[09.1999 - 08.2001] JZS175 |
48809-30030 |
US $17.91 |
||
| replacement | |||||
|
48829A
|
48829A
48809-30031 Bracket, Front Stabilizer, No.1 Lh[09.1999 - 08.2001] JZS175 |
48809-30031 |
US $22.34 |
||
|
48829A
|
48829A
48809-30031 Bracket, Front Stabilizer, No.1 Lh[11.2001 - 12.2003] JZS175 |
48809-30031 |
US $22.34 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
91673E0816
|
91673E0816
91673-E0816
New Genuine Part
|
91673-E0816 |
— | ||
| replacement | |||||
|
91673E0816
|
91673E0816
91671-J0820 BOLT FLANGE |
91671-J0820 |
US $2.15 |
||
|
9011908A86
|
9011908A86
90119-08A86 New Genuine Part |
90119-08A86 |
US $2.15 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.43 |
||
|
9010512251
|
9010512251
90105-12251 BOLT WASHER BASED |
90105-12251 |
US $5.56 |
||
|
9017712002
|
9017712002
90177-12002 Nut |
90177-12002 |
US $1.61 |
||
|
9017808005
|
9017808005
90178-08005 NUT, FLANGE |
90178-08005 |
US $3.05 |
||
|
9017910054
|
9017910054
90179-10054 Nut, No.1 (For Center Support Bearing) |
90179-10054 |
from US $0.82 |
||
|
9017912047
|
9017912047
90179-12047 Nut(For Front Stabilizer Link) |
90179-12047 |
from US $1.16 |
||
|
9017912144
|
9017912144
90179-12144 Nut(For Front Stabilizer Link) |
90179-12144 |
from US $0.89 |
||
|
9164180816
|
9164180816
91641-80816 BOLT W/WASHER |
91641-80816 |
US $1.97 |
||
