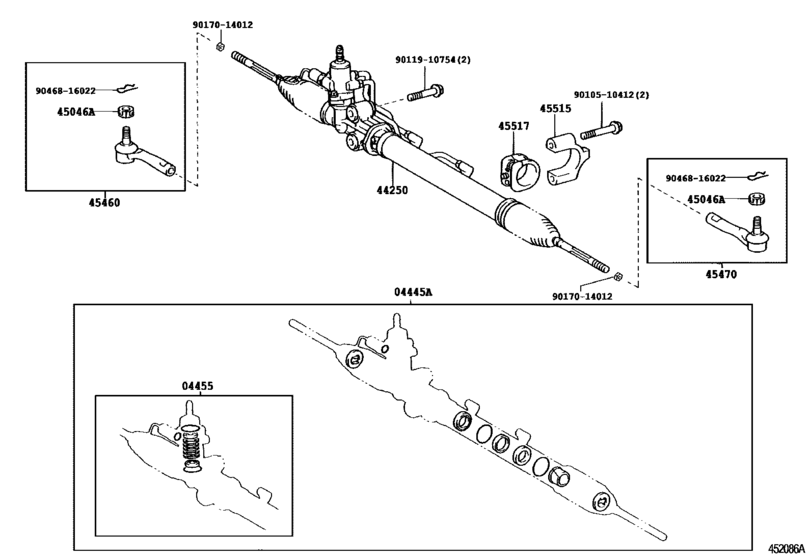

Front Steering Gear & Link ([09.1999 - 08.2001] (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-30260
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[09.1999 - 08.2001] JZS175 |
04445-30260 |
— | ||
|
04455
|
04455
04455-30090 Gasket Kit, Power Steering Control Valve Overhole[09.1999 - 08.2001] JZS175 |
04455-30090 |
US $41.64 |
||
|
44250
|
44250
44250-30240 Gear Assy, Power Steering(For Rack & Pinion)[09.1999 - 08.2001] JZS175 |
44250-30240 |
US $1,674.40 |
||
| replacement | |||||
|
44250
|
44250
44200-30241
Link Assy, Power Steering
[09.1999 - 08.2001] JZS175 |
44200-30241 |
— | ||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[09.1999 - 08.2001] JZS175 |
90171-12002 |
from US $1.10 |
||
|
45460
|
45460
45460-39575 Rod Assy, Tie, Rh[09.1999 - 08.2001] JZS175 |
45460-39575 |
US $65.18 |
||
|
45470
|
45470
45470-39205 Rod Assy, Tie, Lh[09.1999 - 08.2001] JZS175 |
45470-39205 |
from US $65.18 |
||
|
45515
|
45515
45515-22120 Bracket, Steering Rack Housing, No.2[09.1999 - 08.2001] JZS175 |
45515-22120 |
US $33.90 |
||
|
45517
|
45517
45517-30020 Grommet, Steering Rack Housing, No.2[09.1999 - 08.2001] JZS175 |
45517-30020 |
US $13.44 |
||
|
9010510412
|
9010510412
90105-10412 Bolt(For Front Suspension Upper Arm Rh) |
90105-10412 |
US $4.66 |
||
|
9011910754
|
9011910754
90119-10754 New Genuine Part |
90119-10754 |
US $5.56 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.05 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.61 |
||
