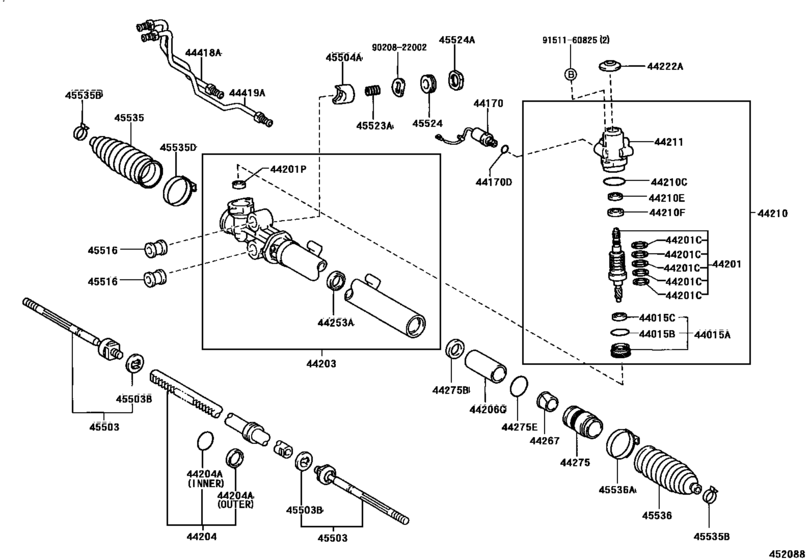

Front Steering Gear & Link ([09.1999 - 08.2001] (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-43010 Nut Sub-Assy, Bearing Guide[09.1999 - 08.2001] JZS175 |
44015-43010 |
US $59.55 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[09.1999 - 08.2001] JZS175 |
90301-43002 |
US $4.84 |
||
|
44015C
|
44015C
90310-25027 Seal, Oil(For Bearing Guide Nut)[09.1999 - 08.2001] JZS175 |
90310-25027 |
US $4.12 |
||
|
44170
|
44170
44170-22100 Valve Assy, Solenoid(For Power Steering)[10.2000 - 08.2001] JZS175 |
44170-22100 |
US $529.98 |
||
|
44170
|
44170
44170-30140 Valve Assy, Solenoid(For Power Steering)[09.1999 - 10.2000] JZS175 |
44170-30140 |
US $528.53 |
||
| replacement | |||||
|
44170
|
44170
44170-22100 Valve Assy, Solenoid(For Power Steering)[09.1999 - 10.2000] JZS175 |
44170-22100 |
US $529.98 |
||
|
44170D
|
44170D
90301-14011 Ring, O(For Power Steering Solenoid Valve)[09.1999 - 08.2001] JZS175 |
90301-14011 |
US $3.35 |
||
|
44201
|
44201
44201-30160 Valve Sub-Assy, Power Steering Control[09.1999 - 08.2001] JZS175 |
44201-30160 |
US $294.11 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[09.1999 - 08.2001] JZS175 |
90562-33007 |
US $1.97 |
||
|
44201P
|
44201P
90364-13005 Bearing(For Power Steering Control Valve Lower)[09.1999 - 08.2001] JZS175 |
90364-13005 |
US $8.04 |
||
|
44203
|
44203
44203-30090 Housing Sub-Assy, Power Steering Rack[09.1999 - 11.2000] JZS175 |
44203-30090 |
US $524.16 |
||
|
44203
|
44203
44203-30091 Housing Sub-Assy, Power Steering Rack[11.2000 - 08.2001] JZS175 |
44203-30091 |
US $524.16 |
||
|
44204
|
44204
44204-30130 Rack Sub-Assy, Power Steering[09.1999 - 08.2001] JZS175 |
44204-30130 |
US $222.77 |
||
|
44204A
|
44204A
90301-37007 Ring(For Rack Steering Piston)[09.1999 - 07.2001] JZS175 INNER |
90301-37007 |
US $4.30 |
||
|
44204A
|
44204A
90301-37009 Ring(For Rack Steering Piston)[07.2001 - 08.2001] JZS175 INNER |
90301-37009 |
US $1.89 |
||
|
44204A
|
44204A
90562-41001 Ring(For Rack Steering Piston)[09.1999 - 07.2001] JZS175 OUTER |
90562-41001 |
US $2.33 |
||
|
44204A
|
44204A
90562-41004 Ring(For Rack Steering Piston)[07.2001 - 08.2001] JZS175 OUTER |
90562-41004 |
US $1.02 |
||
|
44206G
|
44206G
90561-30004 Spacer, No.1(For Power Steering Cylinder Tube)[09.1999 - 08.2001] JZS175 |
90561-30004 |
US $22.71 |
||
|
44210
|
44210
44210-30190 Valve Assy, Power Steering Control[09.1999 - 08.2001] JZS175 |
44210-30190 |
US $563.47 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[09.1999 - 08.2001] JZS175 |
90301-51001 |
US $5.73 |
||
|
44210E
|
44210E
90311-19013 Seal, Oil(For Power Steering Control Valve)[09.1999 - 08.2001] JZS175 |
90311-19013 |
US $3.58 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[09.1999 - 08.2001] JZS175 |
90363-19003 |
US $20.83 |
||
|
44211
|
44211
44211-30090 Housing, Control Valve[09.1999 - 08.2001] JZS175 |
44211-30090 |
US $195.10 |
||
|
44222A
|
44222A
45222-30050 Cover, Dust(For Power Steering Gear)[09.1999 - 08.2001] JZS175 |
45222-30050 |
US $4.95 |
||
|
44253A
|
44253A
90310-26023 Seal, Oil(For Power Steering Rack Housing)[09.1999 - 08.2001] JZS175 |
90310-26023 |
US $3.40 |
||
|
44267
|
44267
44267-22030 Guide, Rack End[09.1999 - 08.2001] JZS175 |
44267-22030 |
US $5.38 |
||
|
44275
|
44275
44275-22020
Stopper, Cylinder End
[09.1999 - 08.2001] JZS175 |
44275-22020 |
— | ||
|
44275B
|
44275B
90310-26023 Seal, Oil(For Power Steering Rack Housing)[09.1999 - 08.2001] JZS175 |
90310-26023 |
US $3.40 |
||
|
44275E
|
44275E
90301-40004 Ring, O(For Rack End Guide)[09.1999 - 08.2001] JZS175 |
90301-40004 |
US $3.58 |
||
|
44418A
|
44418A
44418-30110 Tube, Steering Right Turn Pressure[09.1999 - 08.2001] JZS175 |
44418-30110 |
US $15.72 |
||
|
44419A
|
44419A
44419-30110 Tube, Steering Left Turn Pressure[09.1999 - 08.2001] JZS175 |
44419-30110 |
US $15.72 |
||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[10.2000 - 08.2001] JZS175 |
45503-29785 |
US $109.88 |
||
|
45503
|
45503
45503-39105
End Sub-Assy, Steering Rack
[09.1999 - 10.2000] JZS175 |
45503-39105 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-29785 End Sub-Assy, Steering Rack[09.1999 - 10.2000] JZS175 |
45503-29785 |
US $109.88 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[09.1999 - 10.2000] JZS175 OD=37 |
90214-14002 |
US $9.86 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[10.2000 - 08.2001] JZS175 OD=38 |
90214-14007 |
US $2.87 |
||
|
45504A
|
45504A
45504-51010 Guide Sub-Assy, Rack[09.1999 - 08.2001] JZS175 |
45504-51010 |
US $19.95 |
||
|
45516
|
45516
45516-53010 Grommet, Steering Rack Housing, No.1[09.1999 - 08.2001] JZS175 |
45516-53010 |
US $19.32 |
||
|
45523A
|
45523A
90501-30019 Spring(For Steering Gear Rack Guide)[09.1999 - 08.2001] JZS175 |
90501-30019 |
US $2.18 |
||
|
45524
|
45524
45524-20040 Cap, Rack Guide Spring(For Power Steering)[09.1999 - 08.2001] JZS175 |
45524-20040 |
US $9.80 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[09.1999 - 08.2001] JZS175 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-30010 Boot, Steering Rack, No.1[09.1999 - 08.2001] JZS175 |
45535-30010 |
US $21.50 |
||
|
45535B
|
45535B
90467-19012
Clip
[09.1999 - 08.2001] JZS175 |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[09.1999 - 08.2001] JZS175 |
90467-19019 |
US $5.73 |
||
|
45535B
|
45535B
90467-19019 Clip[08.2001 - 12.2003] JZS175 |
90467-19019 |
US $5.73 |
||
|
45535D
|
45535D
90460-49004 Clamp(For Steering Rack Boot No.1)[09.1999 - 08.2001] JZS175 |
90460-49004 |
US $4.48 |
||
|
45536
|
45536
45535-30010 Boot, Steering Rack, No.1[09.1999 - 08.2001] JZS175 |
45535-30010 |
US $21.50 |
||
|
45536A
|
45536A
90460-49004 Clamp(For Steering Rack Boot No.1)[09.1999 - 08.2001] JZS175 |
90460-49004 |
US $4.48 |
||
|
9020822002
|
9020822002
90208-22002 LEXWASHERCONE SPRG |
90208-22002 |
US $1.75 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.51 |
||
