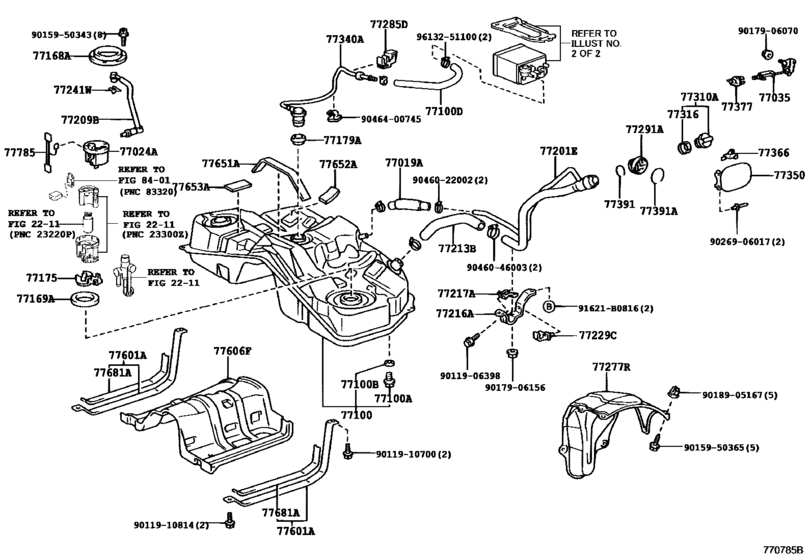

Fuel Tank & Tube ([09.1999 - ] FUEL TANK (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77019A
|
77019A
77019-51010 Hose, Fuel, No.1(For Fuel Expansion Tank)[09.1999 - 08.2001] JZS175 L=200 |
77019-51010 |
US $20.33 |
||
|
77024A
|
77024A
77024-30040 Plate Sub-Assy, Fuel Suction[09.1999 - 08.2001] JZS175 |
77024-30040 |
US $40.19 |
||
|
77035
|
77035
77030-30120 Cable Sub-Assy, Fuel Lid Lock Control[09.1999 - 08.2001] JZS175 |
77030-30120 |
US $126.67 |
||
|
77100
|
77100
77001-30550 Tank Assy, Fuel[09.1999 - 08.2001] JZS175 |
77001-30550 |
US $707.62 |
||
| replacement | |||||
|
77100
|
77100
77001-30552 Tank Assy, Fuel[09.1999 - 08.2001] JZS175 |
77001-30552 |
US $776.05 |
||
|
77100
|
77100
77001-30551 Tank Assy, Fuel[10.2002 - 12.2003] JZS175 |
77001-30551 |
US $704.70 |
||
| replacement | |||||
|
77100
|
77100
77001-30552 Tank Assy, Fuel[10.2002 - 12.2003] JZS175 |
77001-30552 |
US $776.05 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[09.1999 - 08.2001] JZS175 |
90105-12116 |
from US $1.27 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[09.1999 - 08.2001] JZS175 |
90430-12245 |
from US $0.86 |
||
|
77100D
|
77100D
77249-30030 Hose, Fuel, No.1(For Fuel Tank)[09.1999 - 08.2001] JZS175 |
77249-30030 |
US $7.28 |
||
|
77168A
|
77168A
77168-12240
Plate, Fuel Tank Vent Tube Set
[09.1999 - 07.2001] JZS175 |
77168-12240 |
— | ||
| replacement | |||||
|
77168A
|
77168A
77168-33050 Plate, Fuel Tank Vent Tube Set[09.1999 - 07.2001] JZS175 |
77168-33050 |
from US $18.91 |
||
|
77168A
|
77168A
77168-33050 Plate, Fuel Tank Vent Tube Set[07.2001 - 08.2001] JZS175 |
77168-33050 |
from US $18.91 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[09.1999 - 08.2001] JZS175 |
77169-33020 |
from US $7.88 |
||
|
77175
|
77175
77175-30030 Support, Fuel Suction, No.2[09.1999 - 08.2001] JZS175 |
77175-30030 |
US $19.49 |
||
|
77179A
|
77179A
77179-33010 Gasket, Fuel Tank Evap/vent Tube[09.1999 - 08.2001] JZS175 |
77179-33010 |
from US $3.20 |
||
|
77201E
|
77201E
77201-30380 Pipe Sub-Assy, Fuel Tank Filler[09.1999 - 11.1999] JZS175 |
77201-30380 |
US $123.76 |
||
| replacement | |||||
|
77201E
|
77201E
77201-30400 Pipe Sub-Assy, Fuel Tank Inlet[09.1999 - 11.1999] JZS175 |
77201-30400 |
US $152.52 |
||
|
77201E
|
77201E
77201-30400 Pipe Sub-Assy, Fuel Tank Inlet[11.1999 - 08.2001] JZS175 |
77201-30400 |
US $152.52 |
||
|
77209B
|
77209B
77209-30090 Tube Sub-Assy, Fuel Pump[09.1999 - 08.2001] JZS175 |
77209-30090 |
US $23 |
||
|
77213B
|
77213B
77213-30170 Hose, Fuel Tank To Filler Pipe[09.1999 - 08.2001] JZS175 |
77213-30170 |
US $47.17 |
||
| replacement | |||||
|
77213B
|
77213B
77213-22090 Hose, Fuel Tank To Filler Pipe[09.1999 - 08.2001] JZS175 |
77213-22090 |
US $58.80 |
||
|
77216A
|
77216A
77216-51010 Support, Fuel Tank Filler Pipe, No.1[09.1999 - 08.2001] JZS175 |
77216-51010 |
US $22.51 |
||
|
77217A
|
77217A
77217-51010 Support, Fuel Tank Filler Pipe, No.2[09.1999 - 08.2001] JZS175 |
77217-51010 |
US $17.56 |
||
|
77229C
|
77229C
77229-51010 Clamp, Breather Tube[09.1999 - 08.2001] JZS175 |
77229-51010 |
US $8.24 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[09.1999 - 08.2001] JZS175 |
77241-33011 |
from US $0.84 |
||
|
77277R
|
77277R
77277-30020 Protector, Fuel Tank Filler Pipe[09.1999 - 08.2001] JZS175 |
77277-30020 |
US $110.66 |
||
|
77285D
|
77285D
77285-30150 Clamp, Fuel Tube, No.1[09.1999 - 08.2001] JZS175 |
77285-30150 |
US $6.12 |
||
|
77291A
|
77291A
77291-30070 Shield, Fuel Tank Filler Pipe[09.1999 - 08.2001] JZS175 |
77291-30070 |
US $33.02 |
||
|
77310A
|
77310A
77300-50020
Cap Assy, Fuel Tank
[08.2000 - 08.2001] JZS175 |
77300-50020 |
— | ||
| replacement | |||||
|
77310A
|
77310A
77300-28010 Cap Assy, Fuel Tank[08.2000 - 08.2001] JZS175 |
77300-28010 |
from US $28.25 |
||
|
77310A
|
77310A
77310-48010 Cap Assy, Fuel Tank[09.1999 - 08.2000] JZS175 |
77310-48010 |
from US $28.77 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[09.1999 - 08.2001] JZS175 |
77316-16010 |
from US $10.77 |
||
|
77340A
|
77340A
77340-51010
Valve Assy, Fuel Cut Off W/tube
[09.1999 - 08.2001] JZS175 |
77340-51010 |
— | ||
|
77350
|
77350
77350-30340 Lid Assy, Fuel Filler Opening[09.1999 - 08.2001] JZS175 |
77350-30340 |
US $32.76 |
||
|
77366
|
77366
77360-30030
Spring, Fuel Filler Opening Lid Hinge
[09.1999 - 04.2000] JZS175 |
77360-30030 |
— | ||
| replacement | |||||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[09.1999 - 04.2000] JZS175 |
77360-30070 |
from US $3.40 |
||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[05.2000 - 08.2001] JZS175 |
77360-30070 |
from US $3.40 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[09.1999 - 08.2001] JZS175 |
77377-12050 |
from US $3.76 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[09.1999 - 08.2001] JZS175 |
77391-12020 |
from US $1.92 |
||
|
77391A
|
77391A
77391-30030 Ring, Fuel Inlet Box[09.1999 - 08.2001] JZS175 |
77391-30030 |
US $3.93 |
||
|
77601A
|
77601A
77601-51010 Band Sub-Assy, Fuel Tank, No.1[09.1999 - 08.2001] JZS175 |
77601-51010 |
US $34.94 |
||
|
77606F
|
77606F
77606-30170 Case Sub-Assy, Fuel Tank Cover Vent[09.1999 - 08.2001] JZS175 |
77606-30170 |
US $206.75 |
||
|
77651A
|
77651A
77651-30100 Cushion, Fuel Tank, No.1[09.1999 - 08.2001] JZS175 |
77651-30100 |
US $21.55 |
||
|
77652A
|
77652A
77652-12100 Cushion, Fuel Tank, No.1[09.1999 - 08.2001] JZS175 |
77652-12100 |
US $10.57 |
||
|
77653A
|
77653A
77653-51010 Cushion, Fuel Tank, No.1[09.1999 - 08.2001] JZS175 |
77653-51010 |
US $8.15 |
||
|
77681A
|
77681A
77681-32060 Seat, Fuel Tank Band, Rh[09.1999 - 08.2001] JZS175 |
77681-32060 |
US $38.30 |
||
|
77785
|
77785
77785-52020 Harness, Fuel Pump[09.1999 - 08.2001] JZS175 |
77785-52020 |
from US $3.80 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9011906398
|
9011906398
90119-06398 BOLT WWASHER |
90119-06398 |
US $1.43 |
||
|
9011910700
|
9011910700
90119-10700 New Genuine Part |
90119-10700 |
US $2.34 |
||
|
9011910814
|
9011910814
90119-10814 Bolt, Fuel Tank Band Set |
90119-10814 |
US $3.94 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9015950365
|
9015950365
90159-50365 SCREW, W/WASHER |
90159-50365 |
US $1.08 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9018905167
|
9018905167
90189-05167 New Genuine Part |
90189-05167 |
US $2.15 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046046003
|
9046046003
90460-46003
Clamp (For Fuel Filler Pipe)
|
90460-46003 |
— | ||
| replacement | |||||
|
9046046003
|
9046046003
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9046400745
|
9046400745
90464-00745 Clamp, Fuel Tube, No.4 |
90464-00745 |
US $3.58 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
