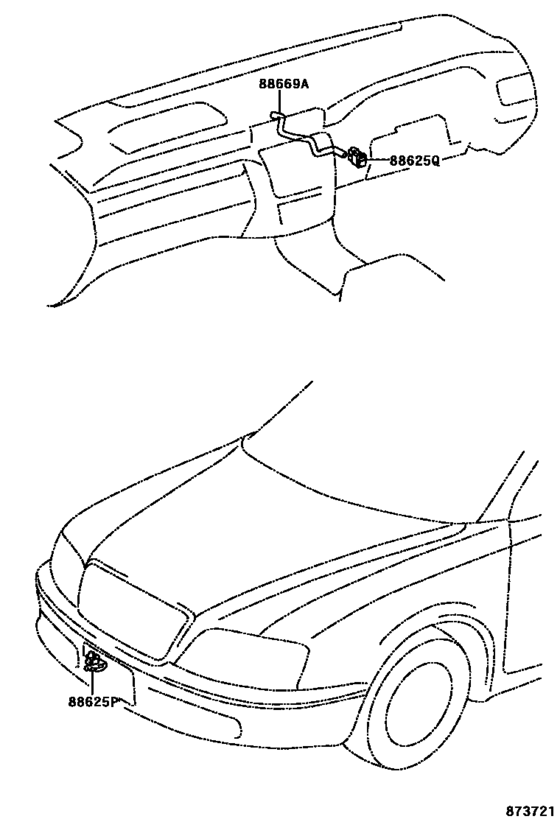

Heating & Air Conditioning - Control & Air Duct ([09.1999 - ] SENSOR (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88625P
|
88625P
88790-22130
Thermistor, Cooler
[09.1999 - 08.2001] JZS175 |
88790-22130 |
— | ||
| replacement | |||||
|
88625P
|
88625P
88790-22131 Thermistor, Cooler[09.1999 - 08.2001] JZS175 |
88790-22131 |
from US $23.77 |
||
|
88625P
|
88625P
88790-22131 Thermistor, Cooler[09.2001 - 12.2003] JZS175 |
88790-22131 |
from US $23.77 |
||
|
88625Q
|
88625Q
88790-22140
Thermistor, Cooler (Room Temp. Sensor)
[09.1999 - 08.2001] JZS175 |
88790-22140 |
— | ||
|
88669A
|
88669A
88669-30030
Hose (For Cooler Thermistor)
[09.1999 - 08.2001] JZS175 |
88669-30030 |
— | ||
