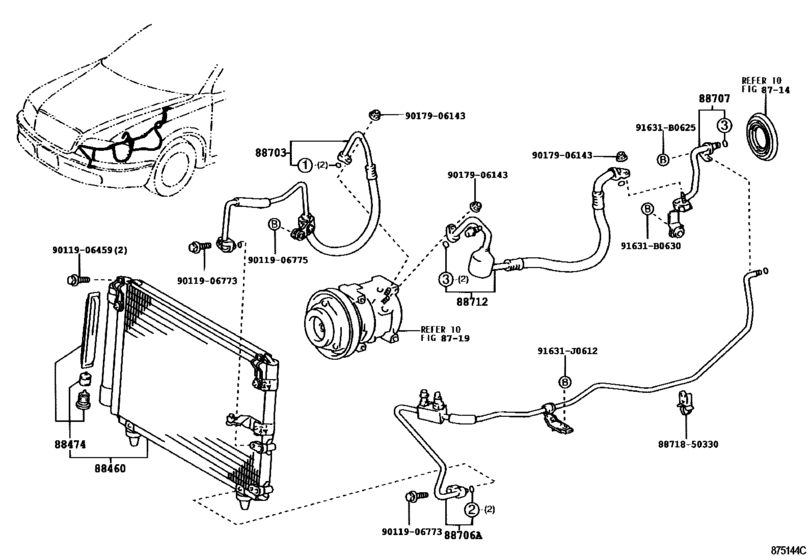

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] FRONT (0108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-30830 Condenser Assy, Cooler[09.1999 - 08.2001] JZS175 |
88460-30830 |
US $693.06 |
||
|
88474
|
88474
88474-47010 Dryer, Cooler[09.1999 - 08.2001] JZS175 |
88474-47010 |
from US $33.95 |
||
|
88703
|
88703
88703-3A130
Hose Sub-Assy, Discharge
[08.2001 - 12.2003] JZS175 |
88703-3A130 |
— | ||
|
88706A
|
88706A
88706-3A290 Tube Sub-Assy, Liquid, A[08.2001 - 12.2003] JZS175 |
88706-3A290 |
US $299.94 |
||
|
88706A
|
88706A
88706-3A300 Tube Sub-Assy, Liquid, A[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
88706-3A300 |
US $353.81 |
||
| replacements | |||||
|
88706A
|
88706A
88569-51030
Clamp (for Cooler Relay)
[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
88569-51030 |
— | ||
|
88706A
|
88706A
88645-22070 Switch, Pressure No.1[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
88645-22070 |
US $50.60 |
||
|
88706A
|
88706A
88726-3K630 Pipe, Cooler Refrigerant Liquid, A[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
88726-3K630 |
US $192.19 |
||
|
88707
|
88707
88707-30630 Pipe Sub-Assy, Suction[08.2001 - 12.2003] JZS175 W(REAR AIR CONDITIONER) |
88707-30630 |
US $218.40 |
||
|
88707
|
88707
88707-51010 Pipe Sub-Assy, Suction[08.2001 - 12.2003] JZS175 |
88707-51010 |
US $117.94 |
||
| replacements | |||||
|
88707
|
88707
88467-14070
Insulator (For Power Take-Off Cable Bracket)
[08.2001 - 12.2003] JZS175 |
88467-14070 |
— | ||
|
88707
|
88707
88569-51040
Clamp (for Cooler Relay)
[08.2001 - 12.2003] JZS175 |
88569-51040 |
— | ||
|
88707
|
88707
88727-51020 Pipe, Cooler Refrigerant Suction, A[08.2001 - 12.2003] JZS175 |
88727-51020 |
US $80.08 |
||
|
88707
|
88707
90099-32140
New Genuine Part
[08.2001 - 12.2003] JZS175 |
90099-32140 |
— | ||
|
88712
|
88712
88712-3A870 Hose, Cooler Refrigerant Suction, No.1[09.1999 - 08.2001] JZS175 |
88712-3A870 |
US $230.05 |
||
|
88712
|
88712
88712-51020
Hose, Cooler Refrigerant Suction, No.1
[08.2001 - 12.2003] JZS175 |
88712-51020 |
— | ||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.65 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
8871850330
|
8871850330
88718-50330
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-50330 |
— | ||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.78 |
||
