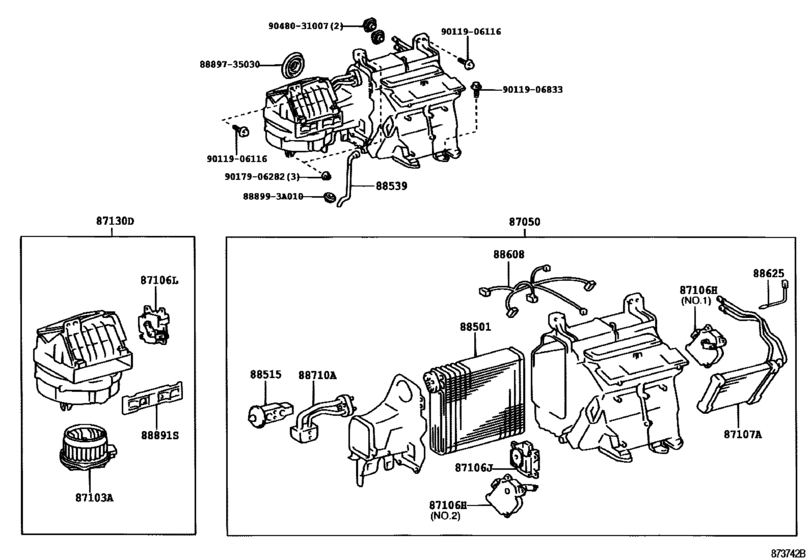

Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] FRONT (9909-0108)) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-30050 Radiator Assy, Air Conditioner[09.1999 - 08.2001] JZS175 |
87050-30050 |
US $1,674.40 |
||
|
87103A
|
87103A
87103-30410
Motor Sub-Assy, Cooling Unit, W/fan
[09.1999 - 08.2001] JZS175 |
87103-30410 |
— | ||
| replacement | |||||
|
87103A
|
87103A
87103-30430 Motor Sub-Assy, Cooling Unit, W/fan[09.1999 - 08.2001] JZS175 |
87103-30430 |
US $884.45 |
||
|
87103A
|
87103A
87103-30440 Motor Sub-Assy, Cooling Unit, W/fan[08.2001 - 12.2003] JZS175 |
87103-30440 |
US $564.35 |
||
|
87106H
|
87106H
87106-30340
Servo Sub-Assy, Damper(For Cooling Unit)
[09.1999 - 08.2001] JZS175 NO.1 |
87106-30340 |
— | ||
| replacement | |||||
|
87106H
|
87106H
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[09.1999 - 08.2001] JZS175 NO.1 |
87106-30341 |
from US $130.36 |
||
|
87106H
|
87106H
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[08.2003 - 12.2003] JZS175 NO.1 |
87106-30341 |
from US $130.36 |
||
|
87106H
|
87106H
87106-30350
Servo Sub-Assy, Damper, No.1
[09.1999 - 08.2001] JZS175 NO.2 |
87106-30350 |
— | ||
| replacement | |||||
|
87106H
|
87106H
87106-30351 Servo Sub-Assy, Damper, No.1[09.1999 - 08.2001] JZS175 NO.2 |
87106-30351 |
from US $127.68 |
||
|
87106H
|
87106H
87106-30351 Servo Sub-Assy, Damper, No.1[08.2003 - 12.2003] JZS175 NO.2 |
87106-30351 |
from US $127.68 |
||
|
87106J
|
87106J
87106-30361 Servo Sub-Assy, Damper(For Mode)[09.1999 - 08.2001] JZS175 |
87106-30361 |
from US $132.39 |
||
|
87106L
|
87106L
87106-30380
Servo Sub-Assy, Damper
[09.1999 - 08.2001] JZS175 |
87106-30380 |
— | ||
|
87107A
|
87107A
87107-30540 Unit Sub-Assy, Heater Radiator[09.1999 - 08.2001] JZS175 |
87107-30540 |
US $541.48 |
||
|
87130D
|
87130D
87130-30710
Blower Assy
[09.1999 - 08.2001] JZS175 |
87130-30710 |
— | ||
|
87130D
|
87130D
87130-30760
Blower Assy
[08.2001 - 12.2003] JZS175 |
87130-30760 |
— | ||
|
88501
|
88501
88501-3A020
Evaporator Sub-Assy, Cooler, No.1
[09.1999 - 08.2001] JZS175 |
88501-3A020 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A050
Evaporator Sub-Assy, Cooler, No.1
[09.1999 - 08.2001] JZS175 |
88501-3A050 |
— | ||
|
88501
|
88501
88501-3A050
Evaporator Sub-Assy, Cooler, No.1
[08.2001 - 12.2003] JZS175 |
88501-3A050 |
— | ||
|
88515
|
88515
88515-30690 Valve, Cooler Expansion[09.1999 - 08.2001] JZS175 |
88515-30690 |
US $139.78 |
||
| replacement | |||||
|
88515
|
88515
88515-22260 Valve, Cooler Expansion[09.1999 - 08.2001] JZS175 |
88515-22260 |
US $163.20 |
||
|
88539
|
88539
88539-30870
Hose, Cooler Unit Drain, No.1
[08.2001 - 12.2003] JZS175 |
88539-30870 |
— | ||
|
88539
|
88539
88539-51010
Hose, Cooler Unit Drain, No.1
[09.1999 - 08.2001] JZS175 |
88539-51010 |
— | ||
|
88608
|
88608
88608-3A060
Harness Sub-Assy, Wiring Air Conditioner
[09.1999 - 08.2001] JZS175 |
88608-3A060 |
— | ||
| replacement | |||||
|
88608
|
88608
88608-3A061
Harness Sub-Assy, Wiring Air Conditioner
[09.1999 - 08.2001] JZS175 |
88608-3A061 |
— | ||
|
88608
|
88608
88608-3A061
Harness Sub-Assy, Wiring Air Conditioner
[10.2002 - 12.2003] JZS175 |
88608-3A061 |
— | ||
|
88625
|
88625
88625-3A120 Thermistor, Cooler, No.1[08.2001 - 10.2002] JZS175 |
88625-3A120 |
from US $11.01 |
||
|
88710A
|
88710A
88710-3A220 Tube Assy, Air Conditioner[09.1999 - 08.2001] JZS175 |
88710-3A220 |
US $145.60 |
||
|
88891S
|
88891S
88891-30680 Cover, Cooler, No.1[09.1999 - 08.2001] JZS175 |
88891-30680 |
US $5.30 |
||
|
888993A010
|
888993A010
88899-3A010
Grommet (For Drain Hose)
|
88899-3A010 |
— | ||
|
8889735030
|
8889735030
88897-35030
Grommet, (For Cooler Pipe)
|
88897-35030 |
— | ||
|
9011906116
|
9011906116
90119-06116
New Genuine Part
|
90119-06116 |
— | ||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048031007
|
9048031007
90480-31007
Grommet, Heater Hose
|
90480-31007 |
— | ||
