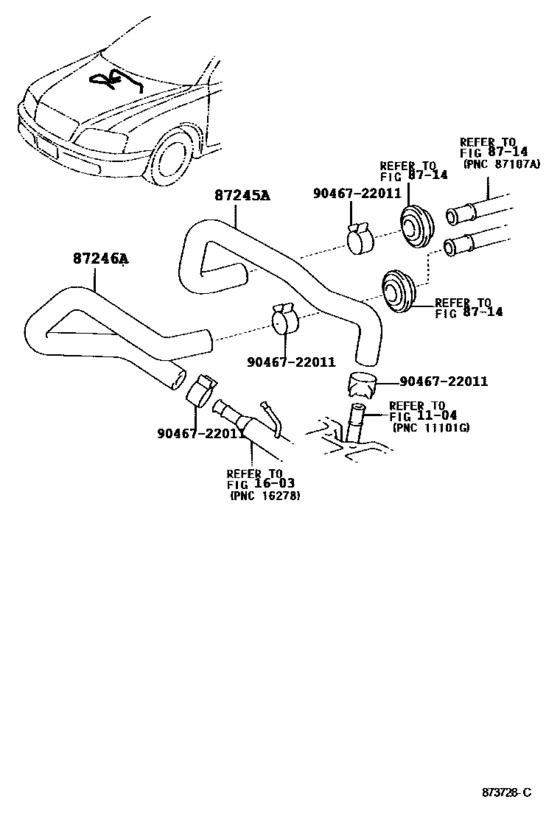

Heating & Air Conditioning - Water Piping ([09.1999 - ] (9909- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- JZS175
- grade
- ROY
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1999
- To
- 12.2003
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-51010 Hose, Heater Water, Inlet[09.1999 - 08.2001] JZS175 |
87245-51010 |
US $26.38 |
||
|
87246A
|
87246A
87245-51020
Hose, Heater Water, Outlet A
[09.1999 - 08.2001] JZS175 |
87245-51020 |
— | ||
|
87246A
|
87246A
87245-51080
Hose, Heater Water, Outlet A
[08.2001 - 12.2003] JZS175 |
87245-51080 |
— | ||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
US $4.30 |
